Temperature sensors

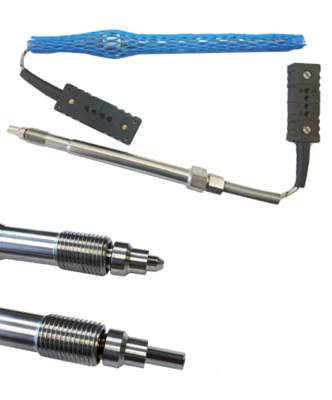

The DYMT Series features temperature sensors specifically designed to meet the requirements of the polymer industry. The mounting thread is compatible with the installation holes of the pressure sensors, thanks to which they are ready for use in most extrusion and injection molding processes.

Dynisco GRMT is a temperature sensor that differs in the possibility of extending and inserting the measuring probe into the melt stream. This makes it easy to change the scanning position of the sensor. This temperature sensor is used to measure the temperature inside the melt stream. The depth of immersion of the tip in the hot melt stream can vary even at maximum flow and pressure conditions without removing the sensor.

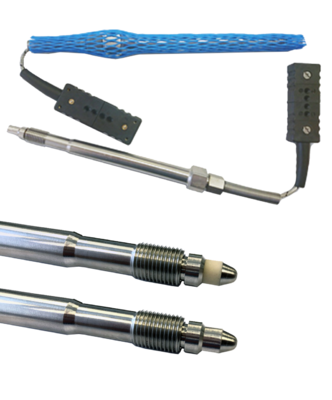

The Dyke DYKE temperature sensor is specially designed to meet the requirements of the polymer industry. The flexible design of this series allows use in both extrusion and injection molding processes. The mounting thread is compatible with the threads used in pressure sensors. Therefore, DYKE can be used in most extruders. As an alternative to the DYMT series. The DYKE series offers the possibility of thermal insulation. These temperature sensors are suitable for use with materials with abrasive fillers such as glass fibers, etc.

The TI422J is an alternative thermocouple that allows you to easily and quickly adjust the dive length to suit any application. The thermocouple can be specified with either a 20 cm spring bayonet cap that allows up to 17 cm of adjustable immersion, thanks to a bayonet lock on the flexible armor to allow the full immersion length "B". Dynisco thermal thermocouples are designed and manufactured to applicable ISA standards to the National Institute of Standard Technology (NIST)

Thermocouples are the most common and widely used devices used to measure temperature. The Dynisco TG422J thermocouples offer a versatile and cost-effective variant, making it a popular choice for extrusion applications in the plastics industry. Available in type J and with a 304 stainless steel construction, the probe can be straight or made at an angle of 45 ° or 90 °. Dynisco thermal thermocouples are designed and manufactured to applicable ISA standards with precision following the National Institute of Standard Technology (NIST).

The TB422J temperature thermocouple is used to measure the temperature of the polymer melt in extrusion applications. The robust stainless steel probe is made of a fiberglass insulating element and is interchangeable with Dynisco pressure sensors. Thermocouples for measuring the melt temperature are designed and manufactured in accordance with applicable ISA standards with an accuracy traceable to the National Institute of Standard Technology (NIST). National Institute of Standard Technology.
