TI422J
The TI422J is an alternative thermocouple that allows you to easily and quickly adjust the dive length to suit any application. The thermocouple can be specified with either a 20 cm spring bayonet cap that allows up to 17 cm of adjustable immersion, thanks to a bayonet lock on the flexible armor to allow the full immersion length "B". Dynisco thermal thermocouples are designed and manufactured to applicable ISA standards to the National Institute of Standard Technology (NIST)
TI422J - Dynisco Temperature Sensors
Cables to dynisco temperature sensors
Cables to dynisco temperature sensors
Cables to dynisco temperature sensors
PERFORMANCE CHARACTERISTICS
|
Type:
|
S = Bayonet end and 20 cm spring
A = Bayonet con. and flexible armor |
|
|
Wire:
|
060 = 12 cm long
120 = 30 cm long |
|
|
Temperature range:
|
0 to 480°C
|
|
| Terminals: | 0 = Stripped wires 5 cm length 1 = Standard type J male TC connector |
|
| Optional: |
P2B = Bayonet cap with an outer tip diameter of 3.8 cm and an outer diameter of 6.4 cm of flexible armor P3B = Bayonet saddle cap with probe outer diameter 5.7 cm and outer diameter 6.4 cm of flexible armor |
|
| Sensor type: | 1-wire STD, Two-wire, 2-wire RTD, 3-wire RTD, 2 Dual RTD, 3 Dual RTD |

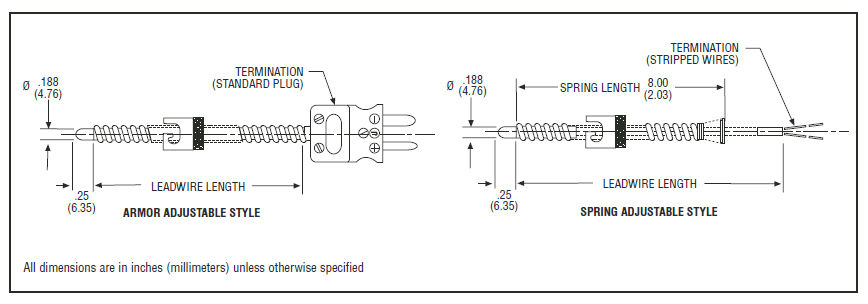

SENSOR DIMENSIONS:
Certification Approval
 |
EU Declaration of Conformity |
 |
ISO 9001:2015 |
 |
EAC - The Eurasian Conformity mark |
 |
Recognized Component Mark |
