Melt Flow Indexer LMFI55-2NENNNN
This LMFI5500 series Melt Flow Indexer allows the measurement of most rheological parameters of thermoplastics including IV for PET. The LMFI 5500 series is one of the most accurate equipment of the type in the world. The intuitive controls make it easy to use, it has an expert mode for experienced operators that significantly speeds up the measurement process, and sophisticated features and technologies ensure the highest possible measurement accuracy. Gravity correction and dual zone heating not only meet but exceed the requirements of the latest ISO1133-2 valid standard.
This model is perfect for quality control in a laboratory, institutes or universities where accuracy really matters. Try the LMFI 5500 and get a reliable and accurate instrument that will allow you to improve the quality of your products.

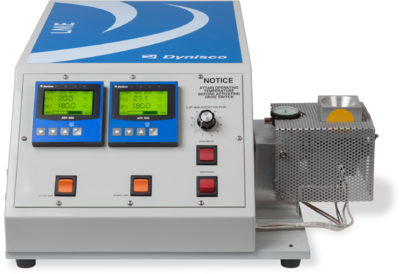

LME - Laboratory Mixing Extruder
LME - Laboratory Mixing Extruder. This small mixing extruder is very popular especially for development laboratories, because it is able to work with only a minimal amount of material, in the order of grams. It allows to test the properties of the material before processing in large extruders. The special rotating design allows very easy cleaning and thus saves your time.
Extruder
Towing
Granulator
4 types of ext. heads
Two temperature zones
Max. 400 ° C
Optional speed
Cooled hopper

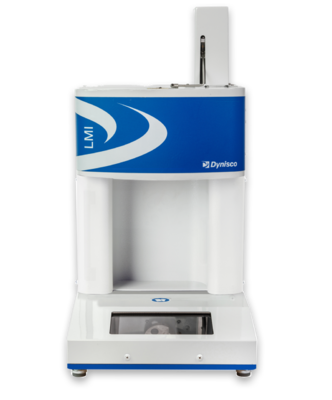

Melt Flow Indexer LMI 4000 Series
The LMI 4000 series capillary plastometer, is a breakthrough in the field of melt index measurement. Hundreds of thousands of units have been sold worldwide and very many are still in daily use today. Build quality and accuracy, along with ease of operation and maintenance, were and are the main features of Dynisco's melt index product.
Meets standards:
ASTM D1238 and D3364, ISO 1133, BS 2782, DIN 53735, JIS K7210.
Melt Flow Rate - MFR
Melt Volume Rate - MVR
Flor Rate Ratio - FRR
Intrinsic Viscosity - IV
Melt Density
Shear Viscosity
Shear Rate
RS232, Printer, Software

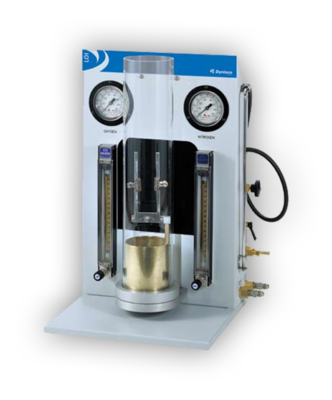

Oxygen number measurement - LOI
The advanced LOI Limiting Oxygen Index Chamber accurately determines the relative flammability of plastics and other materials. It conforms to ASTM D2863 and ISO 4589-1, ISO 4589-2 standards and provides a means for safely determining the relative flammability of materials by measuring the minimum oxygen concentration that will support combustion. The test specimens are burned in a precisely controlled atmosphere of nitrogen and oxygen. The operator adjusts the supply gases and uses the flowmeter readings to calculate the oxygen index.
Easy operation
Even combustion atmosphere
Double gas flow meters with regulating needle
Double gas pressure gauges (0-100 psi)
Fixed sample holder
Optional smoke density detector

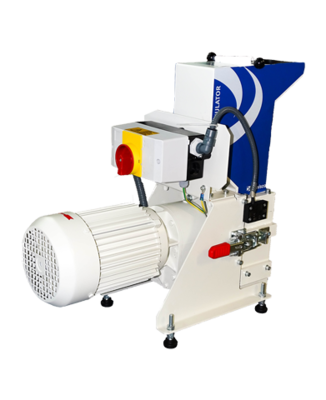

MiniGran - Laboratory Granulator
The Dynisco MiniGran Lab Granulator is designed for the granulation of small sprues. With its very compact dimensions, this granulator can be accommodated almost anywhere and therefore is very suitable for laboratory applications. The granulator is suitable for all kind of plastic materials, due to the low rotor speed the plastic materials are processed to high-quality, low-dust regrind.
Compact dimensions
Laboratory version
Low consumption
Chevron knives
Noise elimination
Interchangeable sieves
Hole size 3-5mm

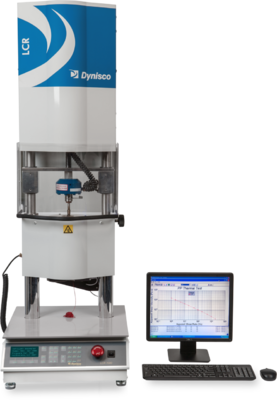

Capillary rheometer LCR 7000
The new LCR 7000 Capillary Rheometer range offers a number of new features and meets the requirements of 24-hour operation while maintaining the highest possible accuracy, repeatability and sensitivity. The LCR series rheometers are versatile and easy to use, but offer the most complex methods for polymer characterization, data analysis and reporting capabilities. The LCR series can be used with a standard load cell and a pressure transducer mounted in the rheometer chamber.
Meets standards:
DIN ISO-11433, DIN-53014, DIN-54811, ASTM-D3835
Digital calibration
Higher measuring force range
Bagley correction
Rabinowitsch's correction
Arrehnius temperature
Temperature and time dependence
Critical shear stress
Correlation of intrinsic viscosity (IV)
45 shear stress data
Unique algorithms
Range up to 500°C
FCR-R - Rheometer
Specifically designed for the synthetic fiber production industry, the Dynisco FCR-R series can be configured to measure a range of apparent shear viscosities, dual melt flow rate, simultaneous melt flow rate and extensional viscosities using the Cogswell Equations. The FCR-R system consists of two parts: a rheometer head and a rheometer control unit (RCU). The rheometer head is connected directly to the process which samples, conditions, and measures the melt viscosity of the molten resin through two separate dies. The RCU controls the rheometer test parameters (temperature, pressure and rate) and takes in data from the measurement head as well as provides outputs of computed results.
On-line apparent viscosities at a wide shear rate range
Unique double capillary design with return current
On-line measurement of polymer elongation properties
Data exchange via analog and digital inputs / outputs
Easy calibration
CMR IV - Rheometer
Specifically designed for the thermoplastics resin industry, the Dynisco CMR series can be configured to measure melt flow rate, high/low load melt flow rate, apparent viscosities, or to perform other customer defined tests.The CMR system consists of two parts: a rheometer head connected directly to the process which samples, conditions, and measures the melt flow of the resin, and an RCU (Rheometer Control Unit) that controls the CMR test parameters (temperature, pressure, rate), and provides outputs of computed results, and communications to an external distributed control system when required.
Online measurement
Data export via mA signal or RS232
Customer solutions
The system is also designed for places with a risk of explosion
Vertex® sensors used for high accuracy
Range of dosing pumps for specific applications
Easy calibration
Alarm system
Robust industrial design
ViscoSensor
The ViscoSensor provides continuous measurements of the melt flow rate or apparent viscosity directly on the manufacturing process. The ViscoSensor system consists of two parts: a Viscosensor Rheologic Sensing Unit (RSU), connected directly to the process, and a Rheologic Control Unit that controls the ViscoSensor test parameters, provides outputs of computed results, and provides communications to an external distributed control system when required.
Connection via M18 hole or flange
An effective solution for monitoring online values
The measured polymer is returned to the processing
ASTM D1238, ISO 1133, or JIS K 7210
On-line shear viscosity and intrinsic viscosity (IV)
Easy calibration
2 Vertex pressure sensor for the highest accuracy
ViscoIndicator
Specifically designed for the thermoplastics resin industry. The ViscoIndicator duplicates the test conditions of a laboratory Melt Flow Rate (MFR) tester or capillary rheometer. Melt viscosity measurements such as melt flow rate and Intrinsic viscosity are primary specifications of thermoplastic resins.
Dont forget- our ViscoIndicator is IoT enabled. The IoT native software of the ViscoIndicator allows for real-time access to your testing information.With the Dynisco Cloud Connect Subscription, you get comprehensive access of rheological data, correlations, and dashboards. This interface allows for a complete “Window into the Process” providing valuable insight to your polymer process.
Connection instead of pressure sensor
Windows ™ 10 IoT
Continuous MFR indication
Continuous indication of shear viscosity
Continuous indication of intrinsic viscosity
Vertex mercury-free sensors
Easy installation
Easy integration
Quick capillary change

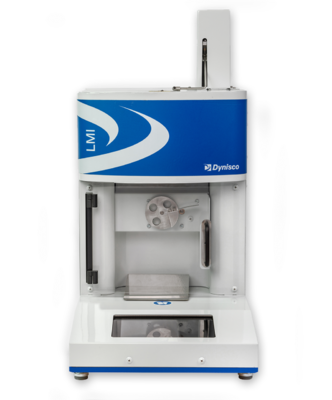

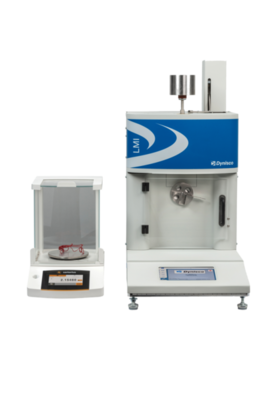

Melt Flow Indexer LMI 5000
The LMI is a cultivation of feedback from customers incorporating a series of key features and options: Color Touch-Screen Display incorporating a user friendly menu structure, USB communications, pneumatic weight lift system with stackable weights, a force packer, higher accuracy digital encoder, software and NEW! auto cutter option.
The melt flow indexer provides results in the form of MFR, MVR, Melt Density, IV, Shear Viscosity and Shear Rate.
Meets standards:
ASTM D1238 and D3364, ISO 1133, BS 2782, DIN 53735, JIS K7210.
Melt Flow Rate - MFR
Melt Volume Rate - MVR
Intrinsic Viscosity - IV
Melt Density
Shear Viscosity
Shear Rate
USB, Printer, Software
Melt Flow Indexer LMFI55-2NENNCN
This LMFI5500 series Melt Flow Indexer allows the measurement of most rheological parameters of thermoplastics including IV for PET. The LMFI 5500 series is one of the most accurate equipment of the type in the world. The intuitive controls make it easy to use, it has an expert mode for experienced operators that significantly speeds up the measurement process, and sophisticated features and technologies ensure the highest possible measurement accuracy. Gravity correction and dual zone heating not only meet but exceed the requirements of the latest ISO1133-2 valid standard.
This model is perfect for quality control in a laboratory, institutes or universities where accuracy really matters. Try the LMFI 5500 and get a reliable and accurate instrument that will allow you to improve the quality of your products.
