TG422J
Thermocouples are the most common and widely used devices used to measure temperature. The Dynisco TG422J thermocouples offer a versatile and cost-effective variant, making it a popular choice for extrusion applications in the plastics industry. Available in type J and with a 304 stainless steel construction, the probe can be straight or made at an angle of 45 ° or 90 °. Dynisco thermal thermocouples are designed and manufactured to applicable ISA standards with precision following the National Institute of Standard Technology (NIST).

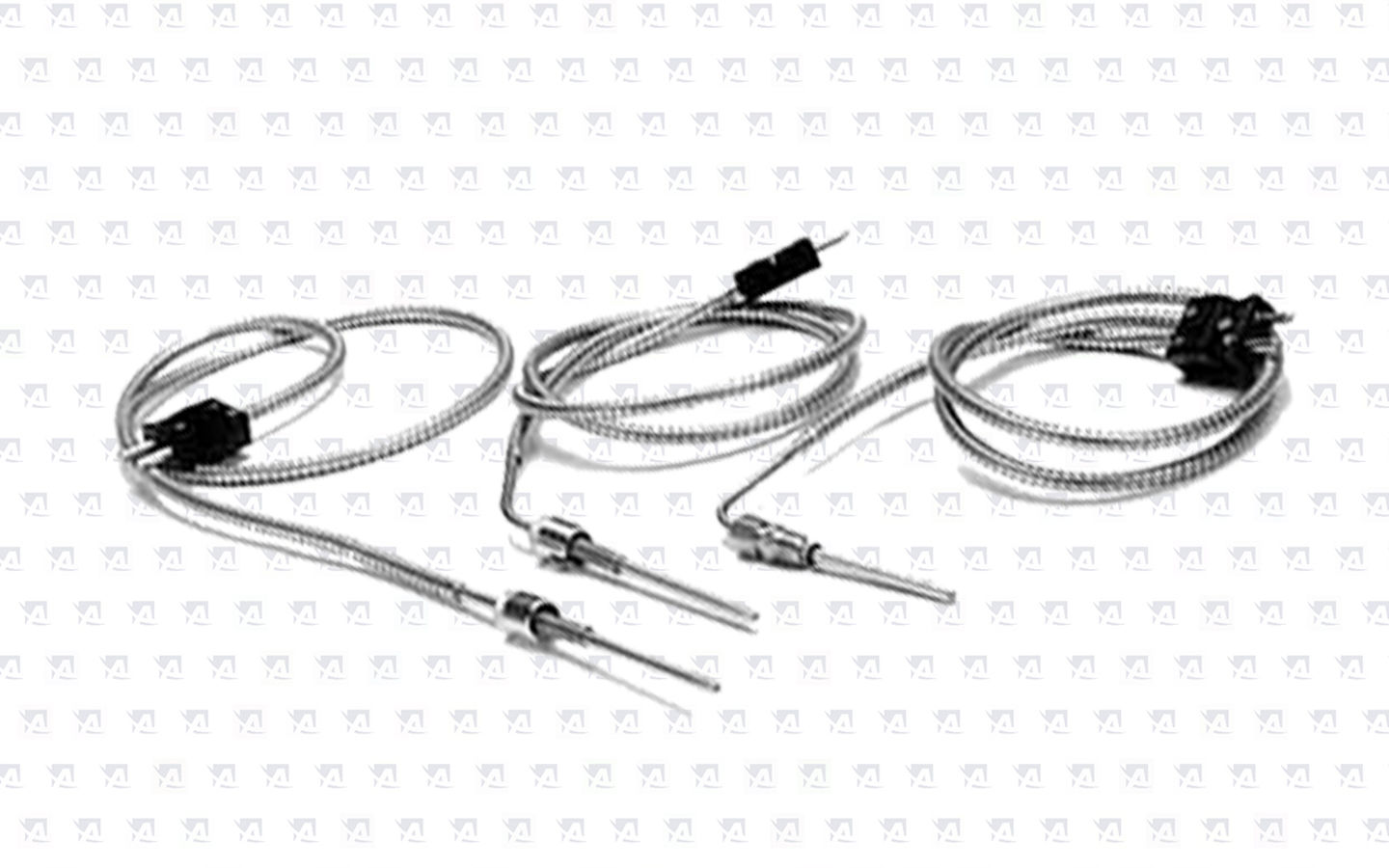

TG422J - Dynisco temperature sensor

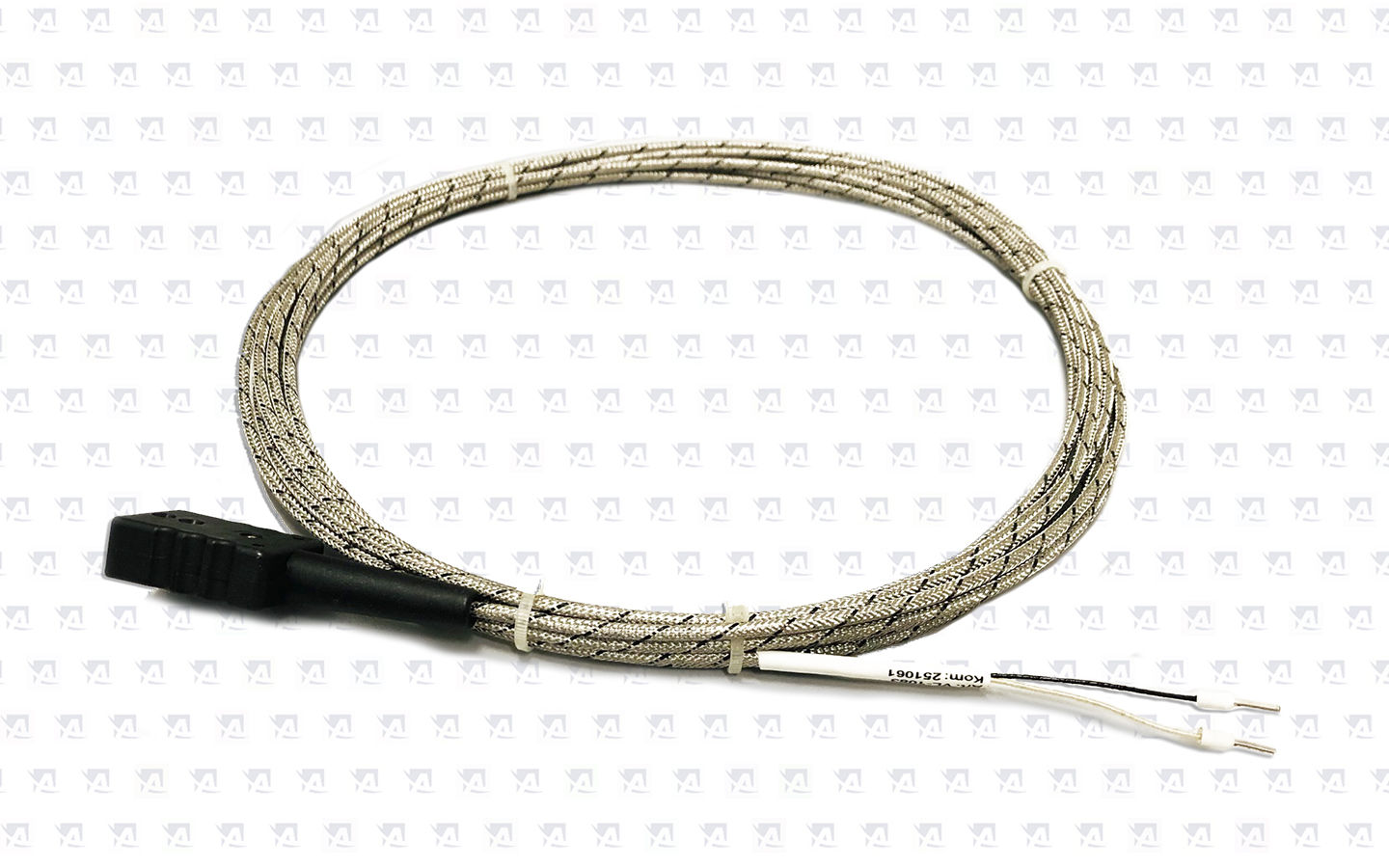

Kabeláž k teplotnímu snímači

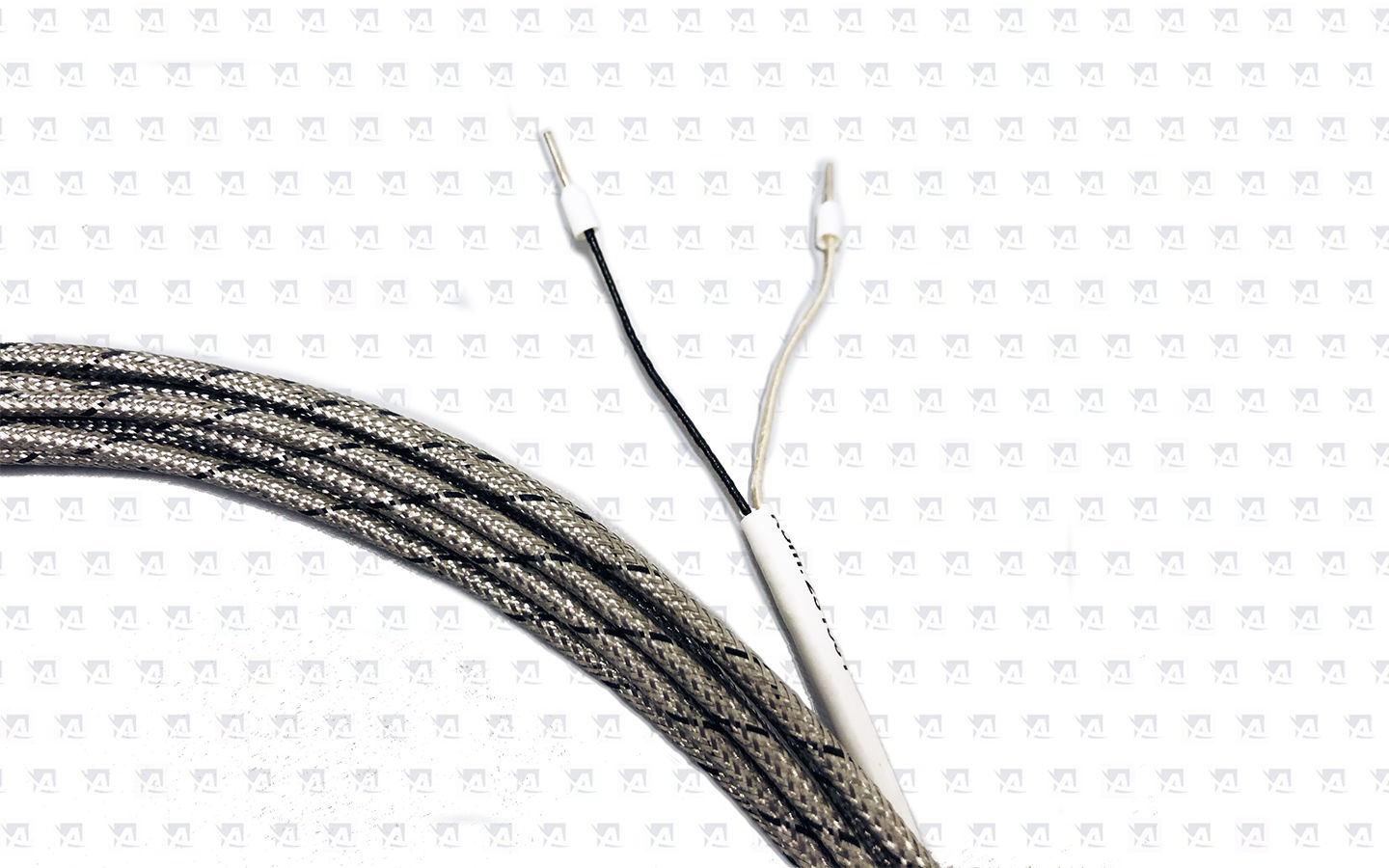

Kabeláž k teplotnímu snímači

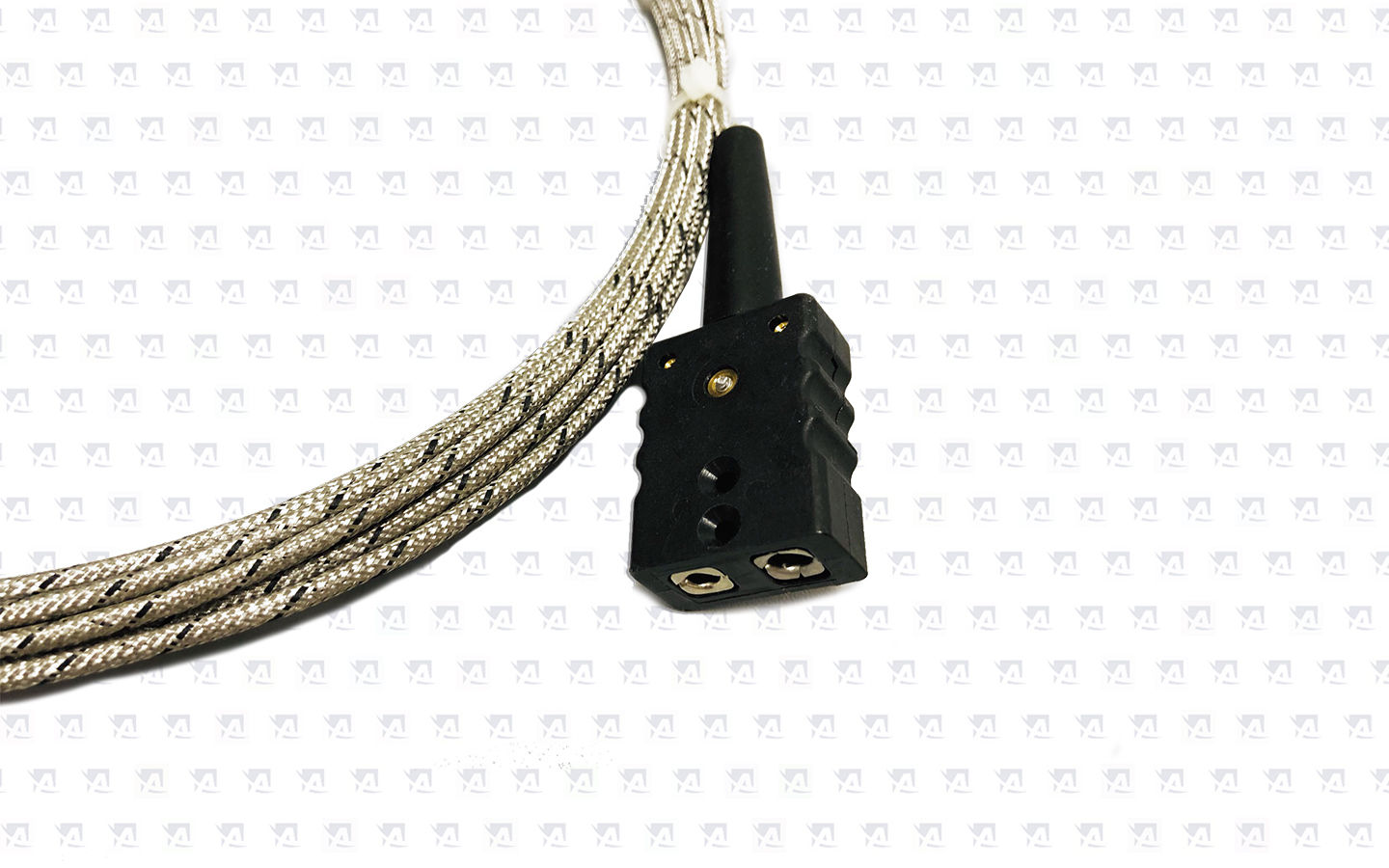

Kabeláž k teplotnímu snímači
PERFORMANCE CHARACTERISTICS
|
Probe outer diameter:
|
1 = 1/8" (3.2 mm)
2 = 3/16" (4.8 mm) 3 = 1/4" (6.4 mm)
|
|
|
Probe length:
|
1 "to 12" (2.54 cm to 30.5 cm)
|
|
|
Temperature range:
|
0 to 480°C
|
|
| Temperature range:... | S = equal / 45 = 45 ° / 90 = 90 ° | |
| Connection - terminal: |
1 = Fixed bayonet end |
|
| Flexible armored conductor protection: |
205 = Standard armouring length 1.5m |
|
| Terminals: |
0 = stripped wires 2 "(50mm) long |

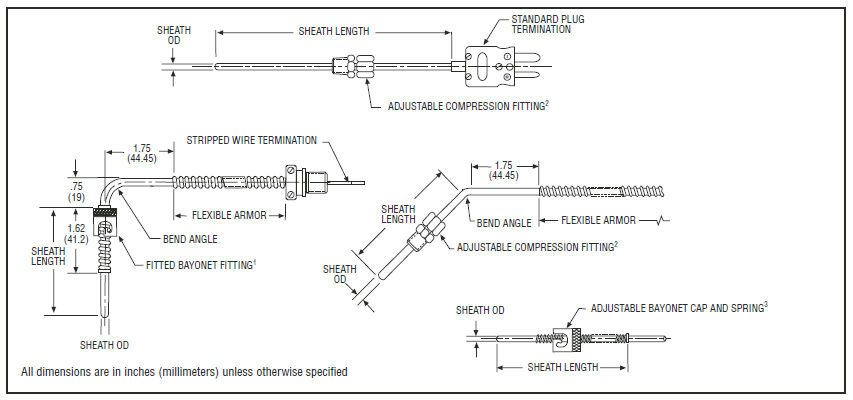

SENSOR DIMENSIONS:
Certification & Approval
 |
EU Declaration of Conformity |
 |
ISO 9001:2015 |
 |
EAC - The Eurasian Conformity mark |
 |
Recognized Component Mark |
