TB422J
The design of the temperature sensor is designed to reduce friction between the melt and the sensor body as much as possible. The temperature sensor is able to withstand high pressures up to 1000 bar and can be ordered in variant J or K. You also have a choice of two types of sensor ends (flat or conical shape).
TB422J - Temperature sensor Dynisco
Teplotní kabeláž k teplotnímu snímači
Teplotní kabeláž k teplotnímu snímači
Teplotní kabeláž k teplotnímu snímači
PERFORMANCE CHARACTERISTICS
|
Thermocouple output:
|
type J or K
|
|
|
Sensor connection:
|
1/2"-20 UNF
|
|
|
Temperature range:
|
0 až 480°C
|
|
| Immersion depth: | 2,5 cm | |
| Compatibility: | Compatible with Dynisco pressure sensor holes | |
| Immersion depth: | Optional immersion length (before ordering) |

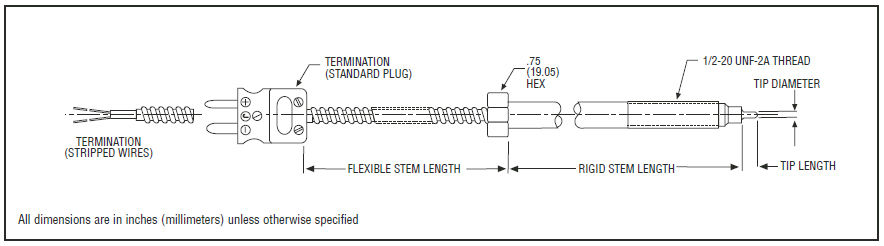

SENSOR DIMENSIONS:
Certification Approval
 |
EU Declaration of Conformity |
 |
ISO 9001:2015 |
 |
EAC - The Eurasian Conformity mark |
 |
Recognized Component Mark |
