DYKE

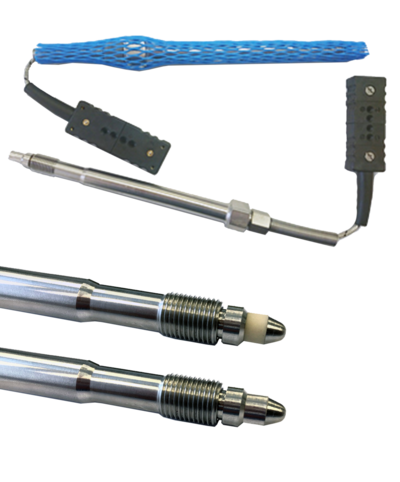

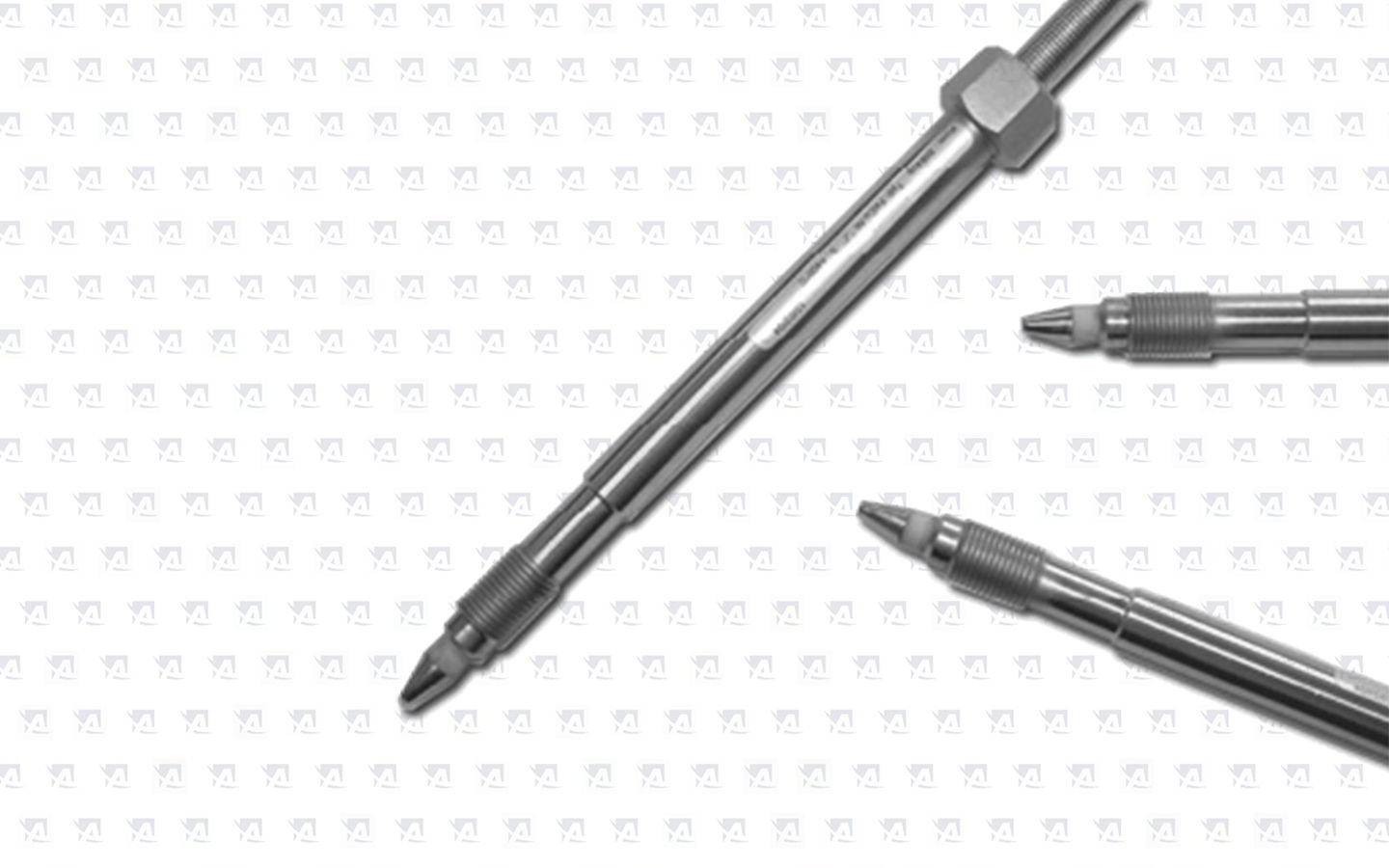

DYKE thermocouples are specially designed to meet the requirements of the polymer industry. The flexible design of this series allows use in the extrusion and injection molding process. The mounting thread is compatible with threads for measuring melt pressure. The DYM T Series is therefore ready for use in most extrusion systems. As an alternative to the DYM T series, the DYKE series offers the possibility of thermal insulation of the sensor body. The tip of the sensor is ceramic insulated from the housing. These temperature sensors are particularly suitable for use in highly abrasive media.

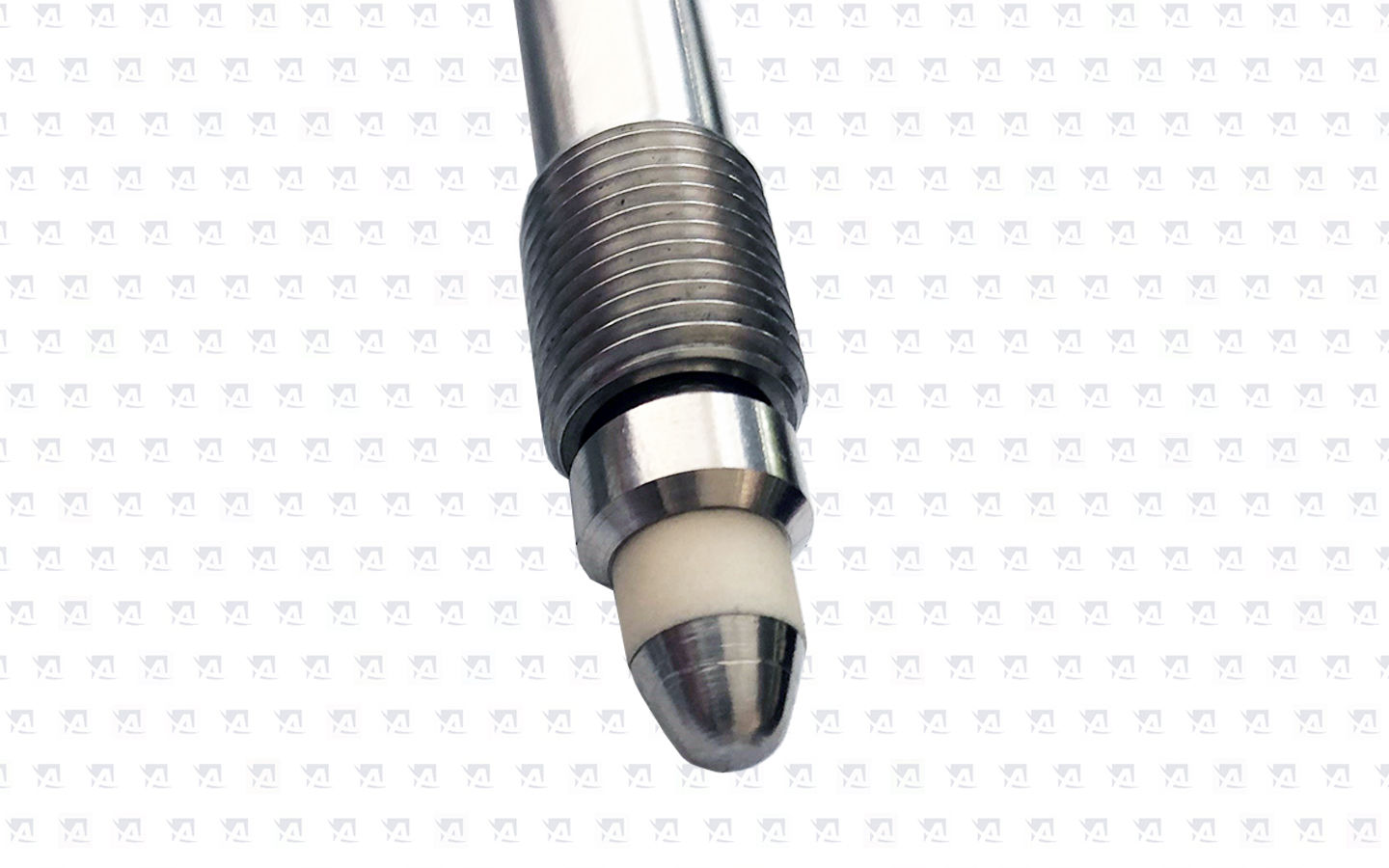

DYKE with ceramic tip insulation
DYKE standard tip

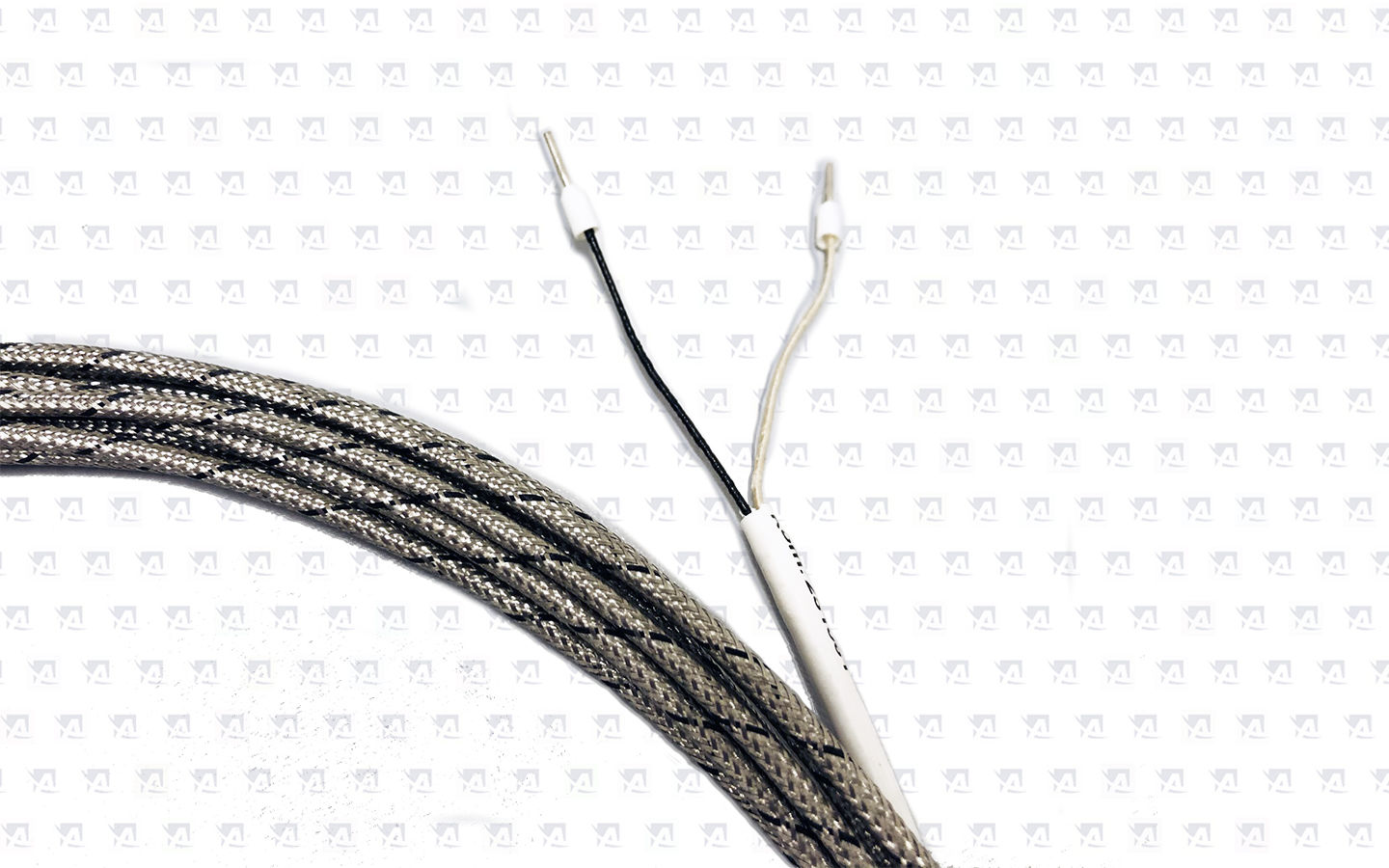

Cable to Dyke temperature sensor

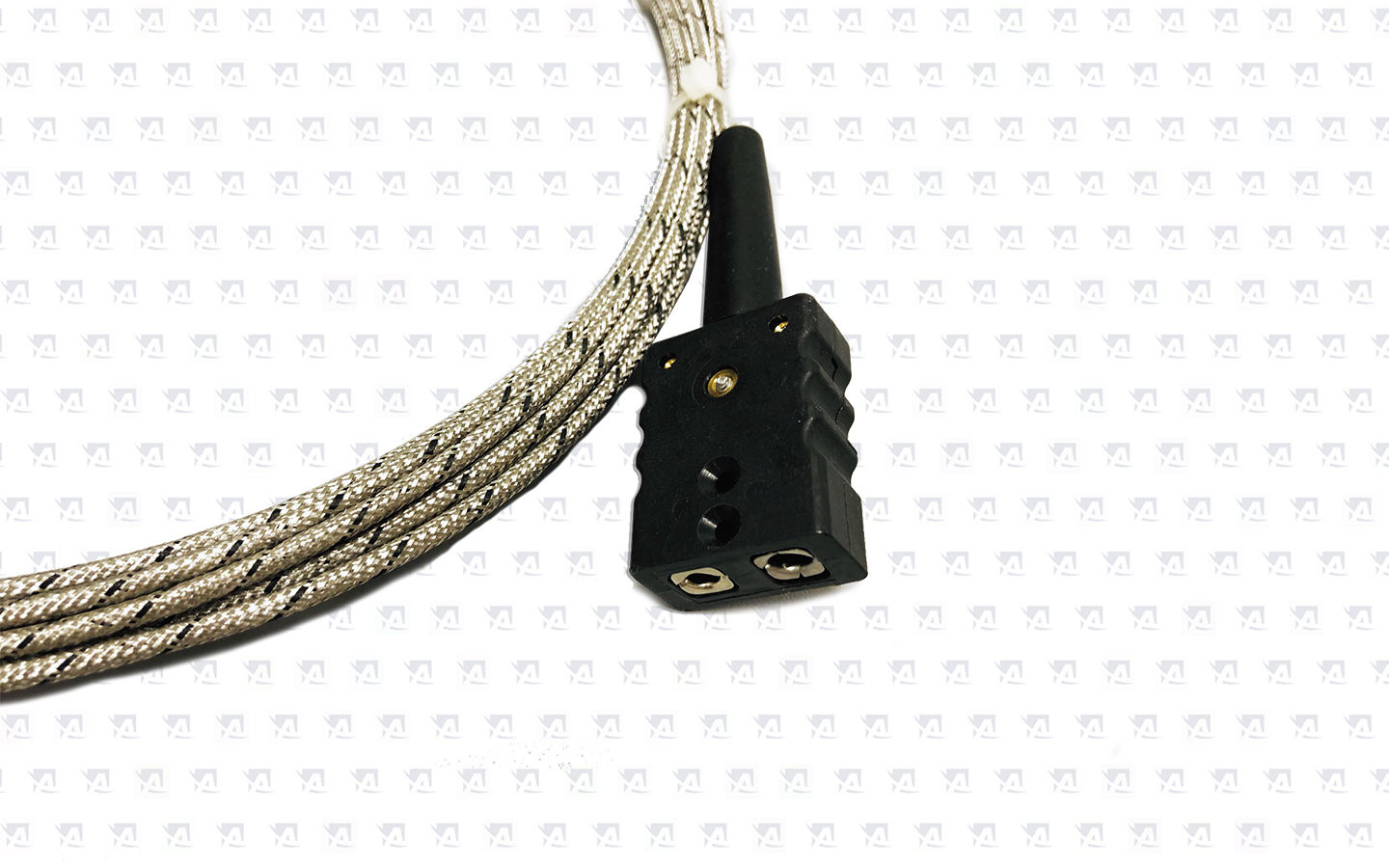

Cable to Dyke temperature sensor
Cable to Dyke temperature sensor
PERFORMANCE CHARACTERISTICS
|
Thermocouple output:
|
J = thermocouple J type DIN IEC 584-1
L = L-type thermocouple according to DIN IEC 584-1 K = thermocouple type K according to DIN IEC 584-1 RTD = RTD |
|
| Tip type: | Conical tip with optional ceramic insulation | |
|
Sensor connection:
|
1/2 = 1/2"20 UNF 2A / M14 =M14x1,5 / M18 = M18x1,5
|
|
|
Temperature range:
|
0 up to 480°C
|
|
| Maximum tightening torque: | 40 Nm | |
| Compatibility: | Compatible with Dynisco pressure sensor mounting holes | |
| Fixed rod length: | 15 = Rod length 152 mm (standard) Others on request | |
| Tip length: | Several lengths from 5 - 25 mm, available in 5 mm steps |
SENSOR DIMENSIONS:
Certification & Approval
 |
EU Declaration of Conformity |
 |
ISO 9001:2015 |
 |
EAC - The Eurasian Conformity mark |
