MDA 460 | 462 | TDA 463
MDA 460 | 462 | TDA 463 are sensors with an accuracy of ± 1.0% of the total range, which are ideal for applications requiring easy installation, repeatability and reliability. These sensors provide an industry standard with a 3.33 mV/V output signal designed to work with most pressure indicators and regulators. The MDA 46 sensors series are equipped with a 6-pin Bendix connector and optional thermocouples or RTDs, which are available to provide simultaneous pressure and melt temperature measurements (TDA models). The sensors are equipped with a 1/2-20 "UNF thread for installation in standard mounting holes and can be supplied with a number of other connectors and connections.
MDA 460 - Melt pressure sensor in a design with a fixed stem
MDA 462 - Melt pressure sensor in a design with a flexible capillary
MDA 463 - Melt pressure sensor in combined design with temperature sensor

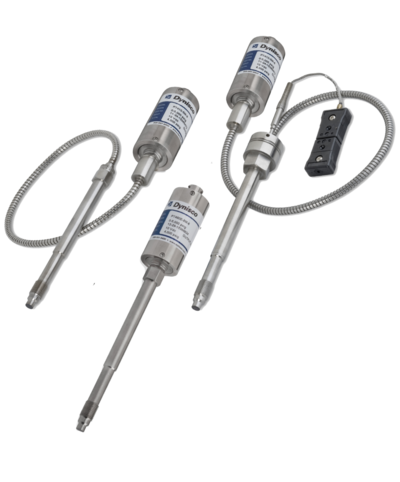

MDA 460 Melt pressure sensors series
Detail - Bayonet cable connector Amphenol 6-PIN
Standard process connection of 1 / 2-20 UNF sensor with diaphragm cover.
Sensor terminal and compatible cable connector
PERFORMANCE CHARACTERISTICS
|
Pressure range:
|
0-17 bar to 0-2000 bar
|
|
| Accuracy: | ± 1.0% of range (including linearity, repeatability and hysteresis) | |
|
Overload capacity:
|
2x pressure range for range 1000 and 1400 bar max. 1750 bar and max. 2400 bar for range 2000 bar
|
|
| Repeatability: | ±0.2% f.s.v | |
| Material in Contact with Media: | 15-5 PH coating of Dynmax® | |
| Sensor connection: | 1/2 "-20 UNF-2A or M18 x 1.5 | |
| Mounting torque: | 25 Nm - 55 Nm | |
| Burst Pressure: | 6x pressure range max. 3000 bar | |
| Sensor construction: | MDA 460 - Sensor with rigid stem MDA 462 - Sensor with rigid stem and flexible stem TDA 463 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor |
TEMPERATURE CHARACTERISTICS
|
Max. membrane temperature:
|
400°C
|
|
|
Zero shift (due to temperature):
|
0.4 bar / 10°C
|
|
|
-------------------------------------------
|
------------------------------------------------------------------
|
|
| Max. sensor body temperature: | 120°C | |
| Zero shift (due to temperature): | ±1.0% f.s.v./10°C | |
| Shift sensitivity (due to temperature): | ±0.4% f.s.v./10°C |
ELECTRICAL CHARACTERISTICS
|
Supply Voltage:
|
10 Vdc - 12 Vdc
|
|
|
Output signal:
|
3.33 mV/V
|
|
|
Zero setting:
|
± 10 % cel. rozsahu
|
|
| Connector: | 6 PIN konektor Bendix | |
| Leakage Resistance: | 1000 MΩ při 50Vdc | |
| Strain Resistance: | 350Ω | |
| Internal Shunt Calibration: | 80% f.s.v ±1.0% |

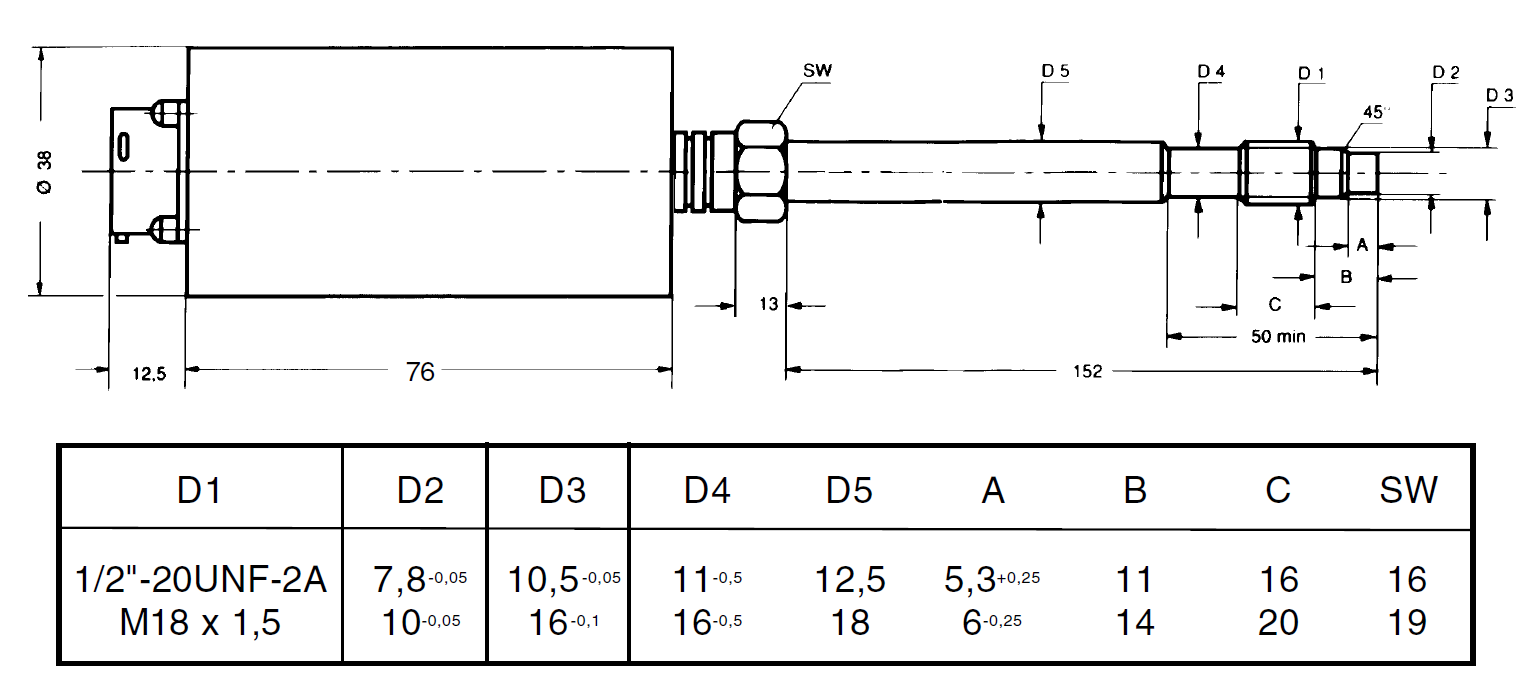

SENSOR DIMENSIONS:
CONNECTOR WIRING DIAGRAM:
