PT 415D (NaK)

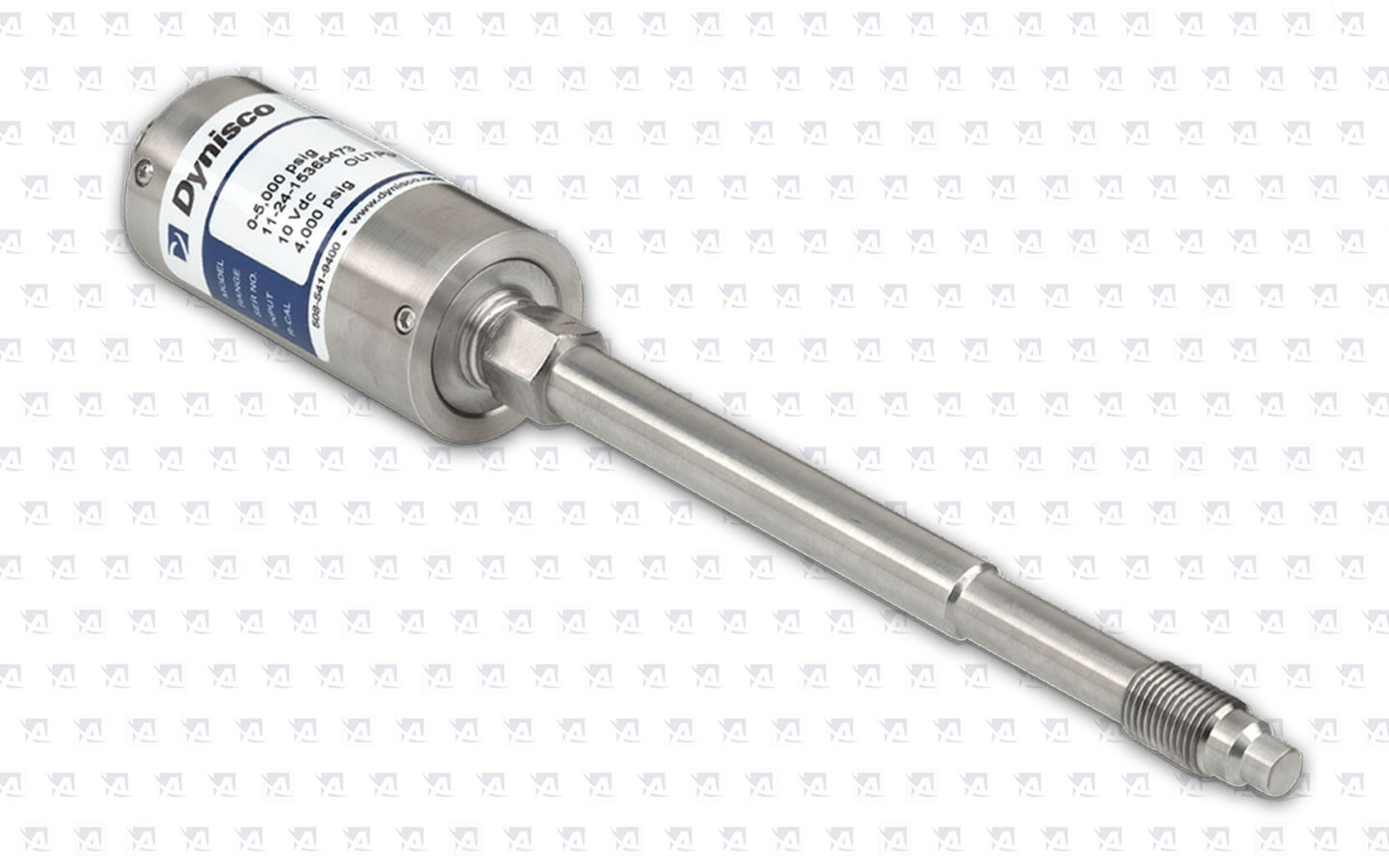

The PT415D pressure transmitter is the ideal choice for food and medical applications that require high accuracy and easy maintenance. It is a washable sensor with insulated wiring type 1/2-14 NPT or an optional 6-pin hermetically insulated bendix connector. It uses a special Inconel 718 membrane and a heat-resistant, mercury-free NaK filling with a high accuracy of 0.5% of the range with excellent repeatability and reliability. Meets FDA and USDA hygiene regulations and requirements.

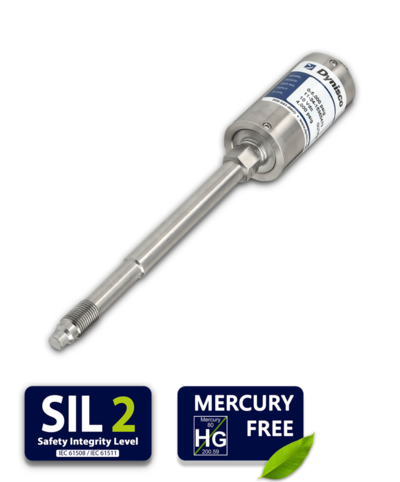

PT 415D - Melt pressure sensor in a design with a fixed stem
Standard process connection of 1 / 2-20 UNF sensor with diaphragm cover.
Adjusting screws - used to adjust the zero and upper range of the sensor
Sensor terminal and compatible cable connector
PERFORMANCE CHARACTERISTICS
|
Tlakový rozsah:
|
0 -1000 až 0 - 10 000 ps
|
|
|
Přesnost:
|
± 0,50% FSO, (Včetně linearity, opakovatelnosti a hystereze)
|
|
|
Přetižitelnost:
|
2 x FSO (plného rozsahu snímače)
|
|
| Opakovatelnost: | ± 0.2% FSO (plného rozsahu snímače) | |
| Membrána snímače: | 15 - 5 PH nerezová ocel, potažená Dymax® | |
| Připojení snímače: | 1/2"-20 UNF-2A nebo M18 x 1.5 | |
| Montážní moment: | 500 inch/lbs. maximum | |
| Konstukce snímače: | Snímač s pevnou tyčí (volitelná délka) |
TEMPERATURE CHARACTERISTICS
|
Max. membrane temperature:
|
400°C
|
|
|
Zero shift (due to temperature):
|
maximum 27 psi/100°C
|
|
|
-------------------------------------------
|
------------------------------------------------------------------
|
|
| Max. sensor body temperature: | 121°C | |
| Zero shift (due to temperature) | maximum ±0.02% full scale/°C | |
| Displacement sensitivity (due to temperature) |
±0.01% full scale/°C maximum 500, 750, 1,000 psi |
ELECTRICAL CHARACTERISTICS
|
Power supply:
|
10 Vdc - 12 Vdc
|
|
|
Output signal:
|
3.3 mV/V ±2%
|
|
|
Zero setting:
|
±5% FSO
|
|
| Connector: | 6 Bendix PIN connector | |
| Insulation resistance: | 1000 megohms @ 50 Vdc | |
| Resistance calibration (R-Cal): | 80% of duty. range ± 0.50% of the total range |

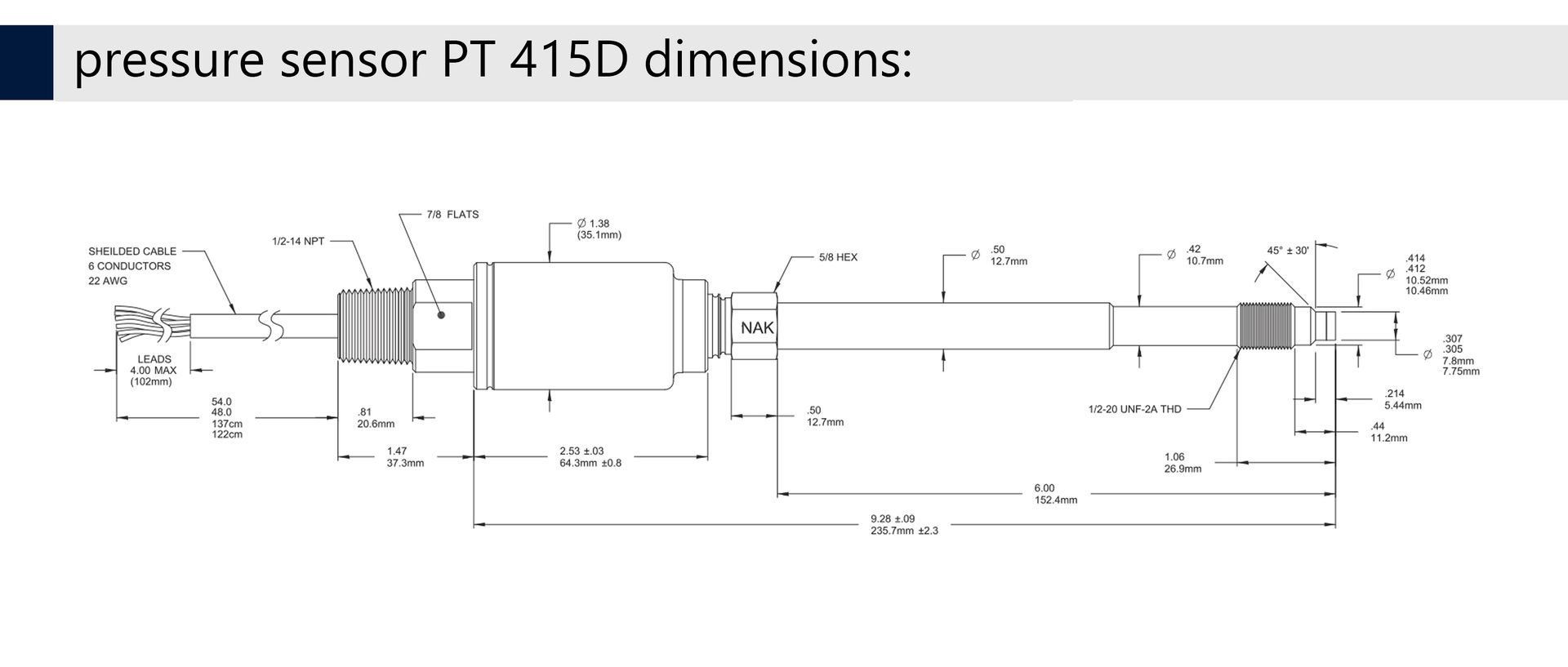

 Melt Pressure Sensor_eng.jpg)
Certification & Approval
 |
EU Declaration of Conformity for Flush Mount mV/V Output |
 |
ISO 9001:2015 |
 |
EAC - The Eurasian Conformity mark |
 |
GOST Approval |
 |
RoHS Compliance Fact Sheet |
 |
Safety Integrity Level - SIL2 |
