PT 4194 (Oil) 4-20mA
PT4194 sensors provide an industry standard 4-20 mA amplified signal designed to work with DCS and PLC. It is a sensor with ± 0.5% accuracy ideal for the food or pharmaceutical industry requiring easy installation, repeatability and reliability. It is filled with mineral oil that meets the requirements of FDA 21 CFR 178.3620, 21 CFR 172.878 and 21 CFR 573.680.
The PT4194 is equipped with a new automatic zero calibration function. Auto-Zero gives the user the ability to install the sensor right out of the box and perform a calibration at the touch of a button. Combined constructions with thermal thermocouple or RTD are also available. The PT4194 comes with a 1 / 2-20 UNF mounting thread for simple and easy installation for standard mounting holes.

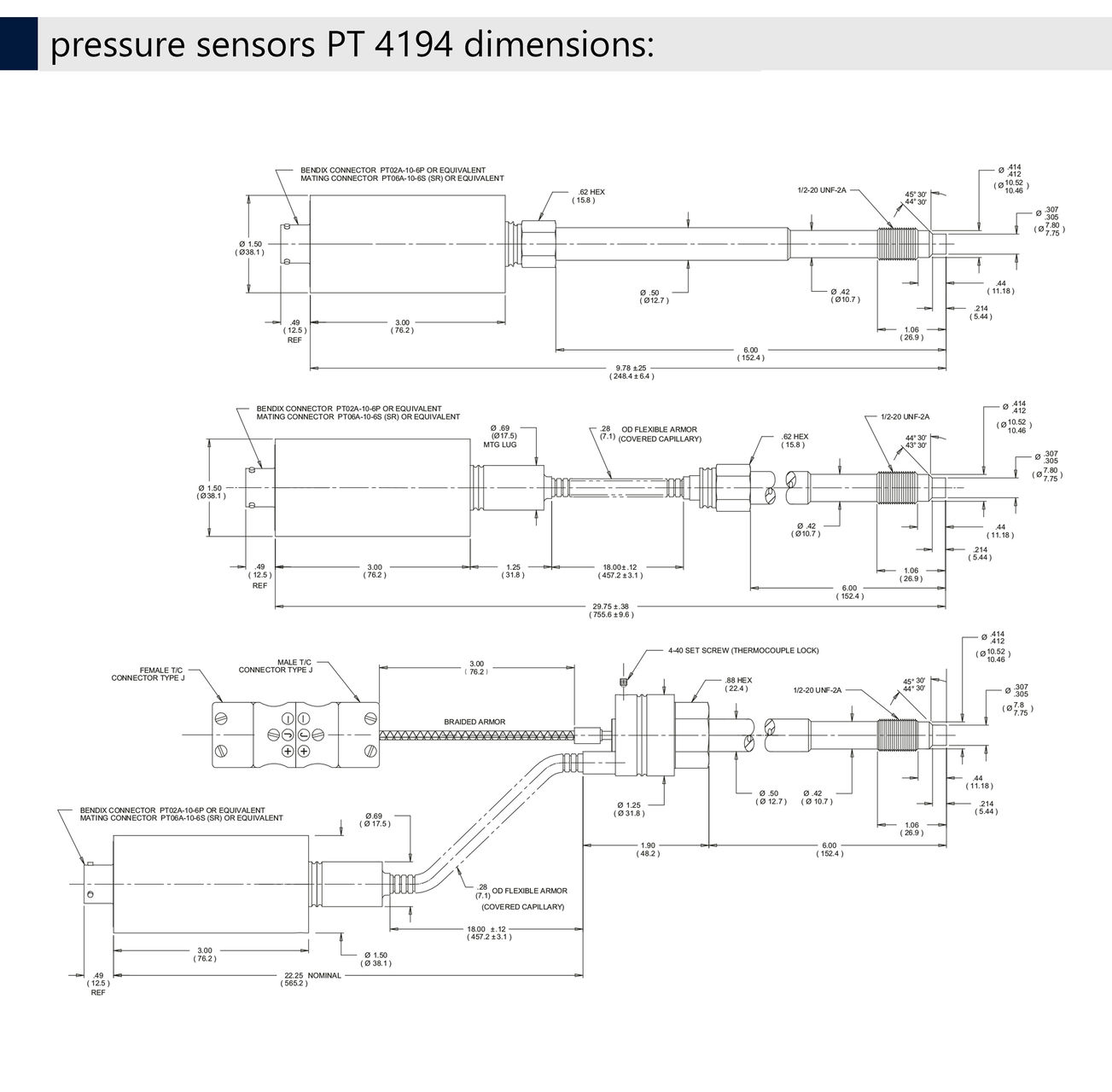

Melt pressure sensor in a design with a fixed stem
Melt pressure sensor in a design with a flexible capillary
Melt pressure sensor in combined design with temperature sensor

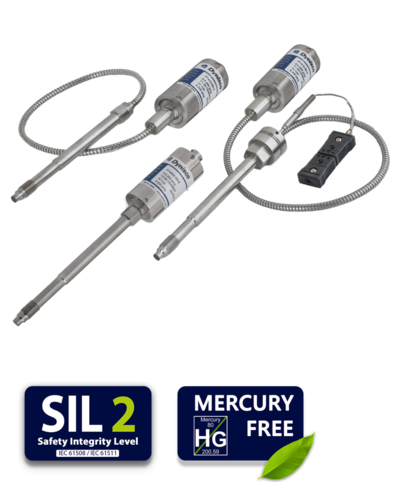

Melt pressure sensors series
Standard process connection of 1 / 2-20 UNF sensor with diaphragm cover.
Sensor terminal and compatible cable connector
Adjusting screws - used to adjust the zero and upper range of the sensor
Detail - Bayonet cable connector Amphenol 6-PIN
PERFORMANCE CHARACTERISTICS
|
Pressure range:
|
0 - 10 000 psi
|
|
|
Accuracy:
|
0.5% FSO, (Including linearity, repeatability and hysteresis) | |
|
Overload capacity:
|
2 x FSO (full range sensor)
|
|
| Repeatability: | ± 0.2% FSO (full sensor range) | |
| Sensor diaphragm: | DyMax ™ coating, 15-5 PH SST | |
| Sensor connection: | 1/2"-20 UNF-2A | |
| Mounting torque: | 500 inch/lbs. maximum | |
| Sensor construction: | Sensor with rigid stem Sensor with rigid stem and flexible stem Combined sensor with rigid stem, flexible stem and built-in temperature sensor |
TEMPERATURE CHARACTERISTICS
|
Max. membrane temperature:
|
275°C
|
|
|
Zero shift (due to temperature):
|
65 psi/100°C
|
|
|
-------------------------------------------
|
------------------------------------------------------------------
|
|
| Max. sensor body temperature: | 85°C | |
| Zero shift (due to temperature) | ± 0.1% FS/°C max | |
| Displacement sensitivity (due to temperature) | ± 0.04% FS/°C max |
ELECTRICAL CHARACTERISTICS
|
Power supply:
|
14 - 36 Vdc
|
|
|
Output signal:
|
4 - 20 mA
|
|
|
Zero setting:
|
± 10% FSO
|
|
| Connector: | 6 Bendix PIN connector | |
| Insulation resistance: | 1000 megohms @ 50 Vdc | |
| Resistance calibration (R-Cal): | 80% of duty. range ± 0.50% of the total range |
Certification & Approval
 |
EU Declaration of Conformity for Flush Mount mV/V Output |
 |
ISO 9001:2015 |
 |
EAC - The Eurasian Conformity mark |
 |
GOST Approval |
 |
RoHS Compliance Fact Sheet |
 |
Safety Integrity Level - SIL2 |
