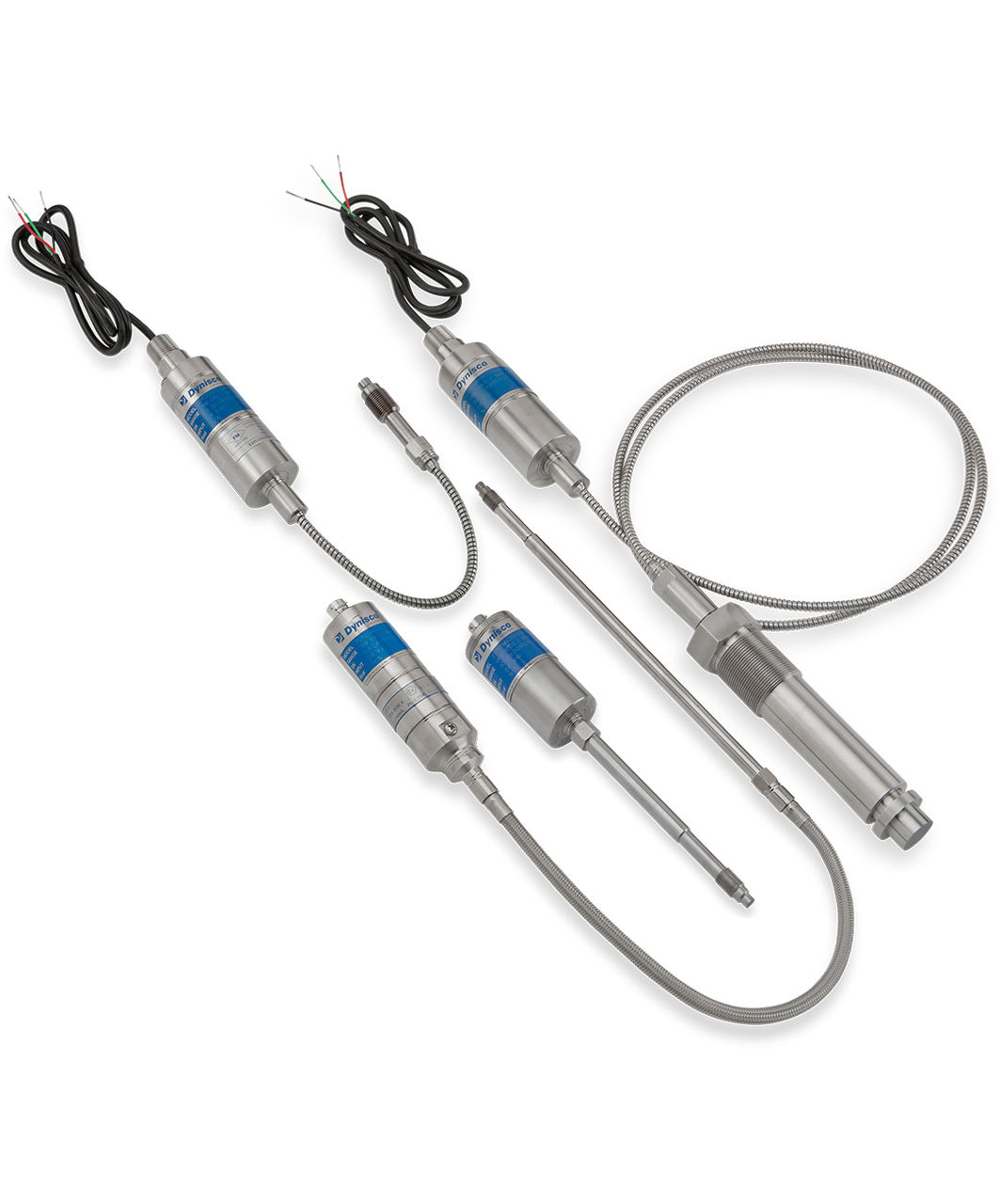

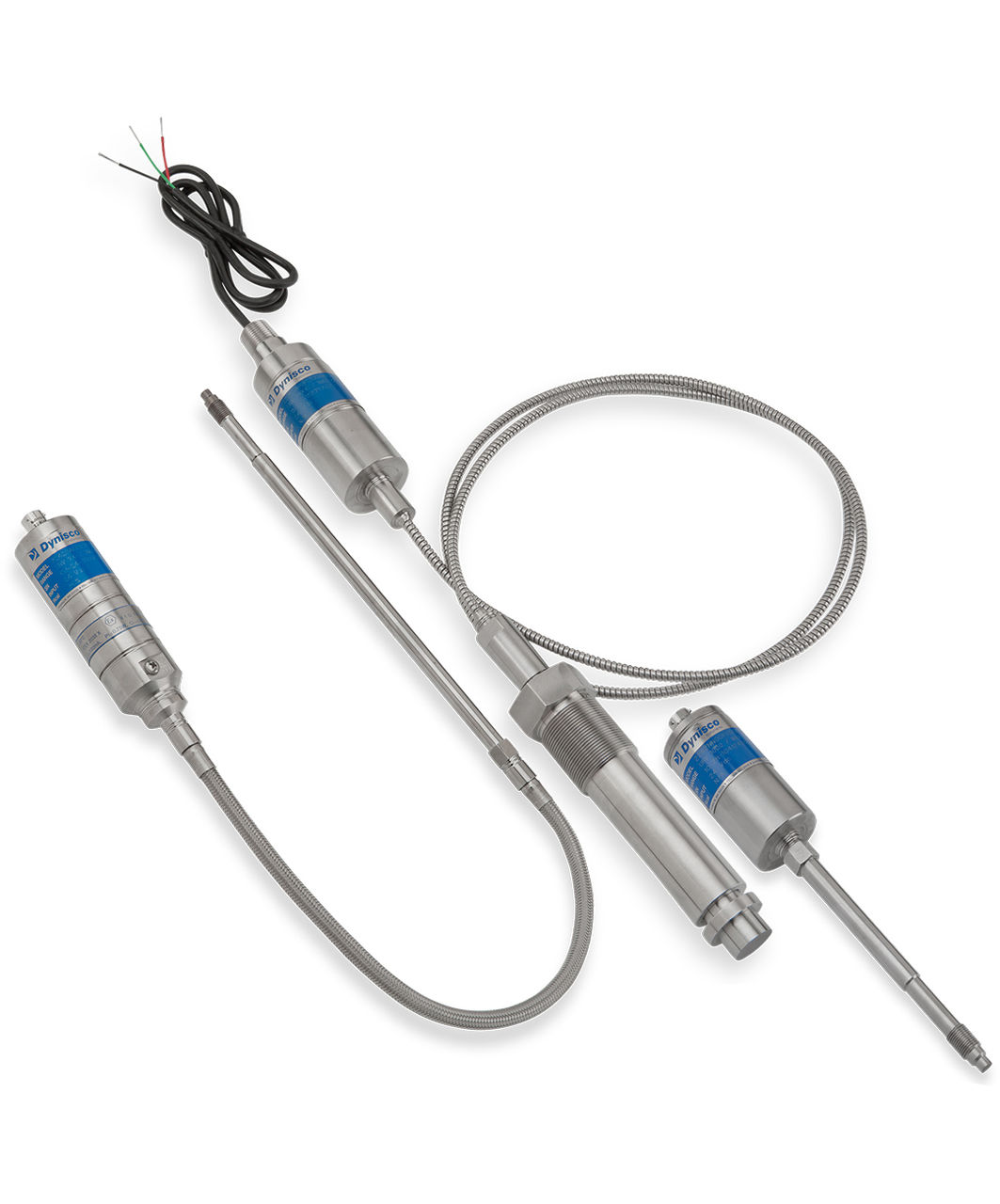

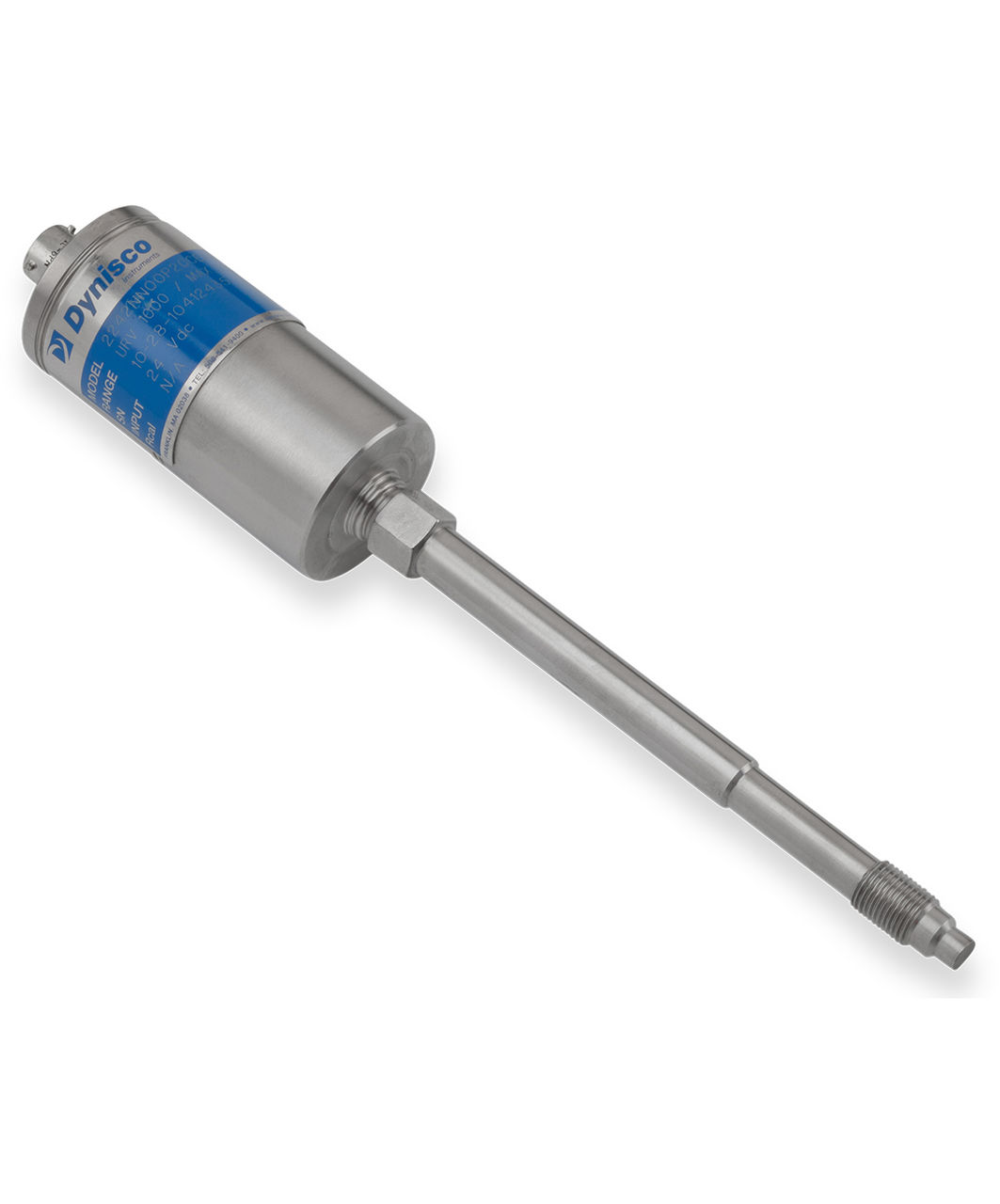

SPX-5 Series
The SPX 5 Series is an intelligent range of sensors with a 4-20 mA output signal that incorporates DynalarityTM technology. Dynisco's innovation uses an advanced logarithm that linearizes fluctuations due to process effects on the sensor.
The SPX 5 series is designed as a non-detachable connection for use in potentially explosive atmospheres, and is available with various process connections and connectors. These built-in amplifiers eliminate the need for external signal conditioning. All models can be directly connected to high-level distributed systems, PLCs, computers and similar control systems. Optional thermocouples or RTD configurations are also available on these models.
PERFORMANCE CHARACTERISTICS
|
Pressure range:
|
from 17.5 bar up to 2000 bar
from250 PSI up to 30 000 PSI from1.75 MPa up to 200 MPa from3.500 KPa up to 70 000 KPa
from17.5 kg/cm2 up to 2000 kg/cm2 |
|
|
Accuracy:
|
All models ± 0.20%
|
|
|
Overload capacity:
|
2X FSO or 35,000 psi, which is less
(5390, 5391, & 5392 1.5 x FSO for 10,000 psi) |
|
| Repeatability: | 0.1 % f.s.v | |
| Material in Contact with Media: | DyMax coating 15-5 PH SST | |
| Sensor connection: | 1/2"-20 UNF , M18 x 1.5 | |
| Mounting torque: |
5342: 500 inch-lbf max |
|
| Sensor construction: | according to the configuration |
TEMPERATURE CHARACTERISTICS
|
Max. membrane temperature:
|
400°C max [Models 5344, 5390, 5391, 5392 max (315°C)]
|
|
|
Zero shift (due to temperature):
|
0 up to150°F (-18 do 65°C)
|
|
|
-------------------------------------------
|
------------------------------------------------------------------
|
|
| Max. sensor body temperature: | 70°C | |
| Zero shift (due to temperature): | All models: 0.01% F.S./°F max (0.02% F.S./°C max) | |
| Shift sensitivity (due to temperature): | All models: 0.01% F.S./°F max (0.02% F.S./°C max) |
ELECTRICAL CHARACTERISTICS
|
Supply Voltage:
|
16 - 36 Vdc (Standard); 16 - 30 Vdc (ATEX IS)
|
|
|
Output signal
|
4 - 20 mA with optional HART ™
|
|
|
Zero setting:
|
-
|
|
| Connector: | 6 Bendix PIN connector | |
| Leakage Resistance: | 500 Ω @ 24 Vdc, 1,000 Ω @ 36 Vdc | |
| Internal Shunt Calibration: | 80 % f.s.v ± 0.50% f.s.v |

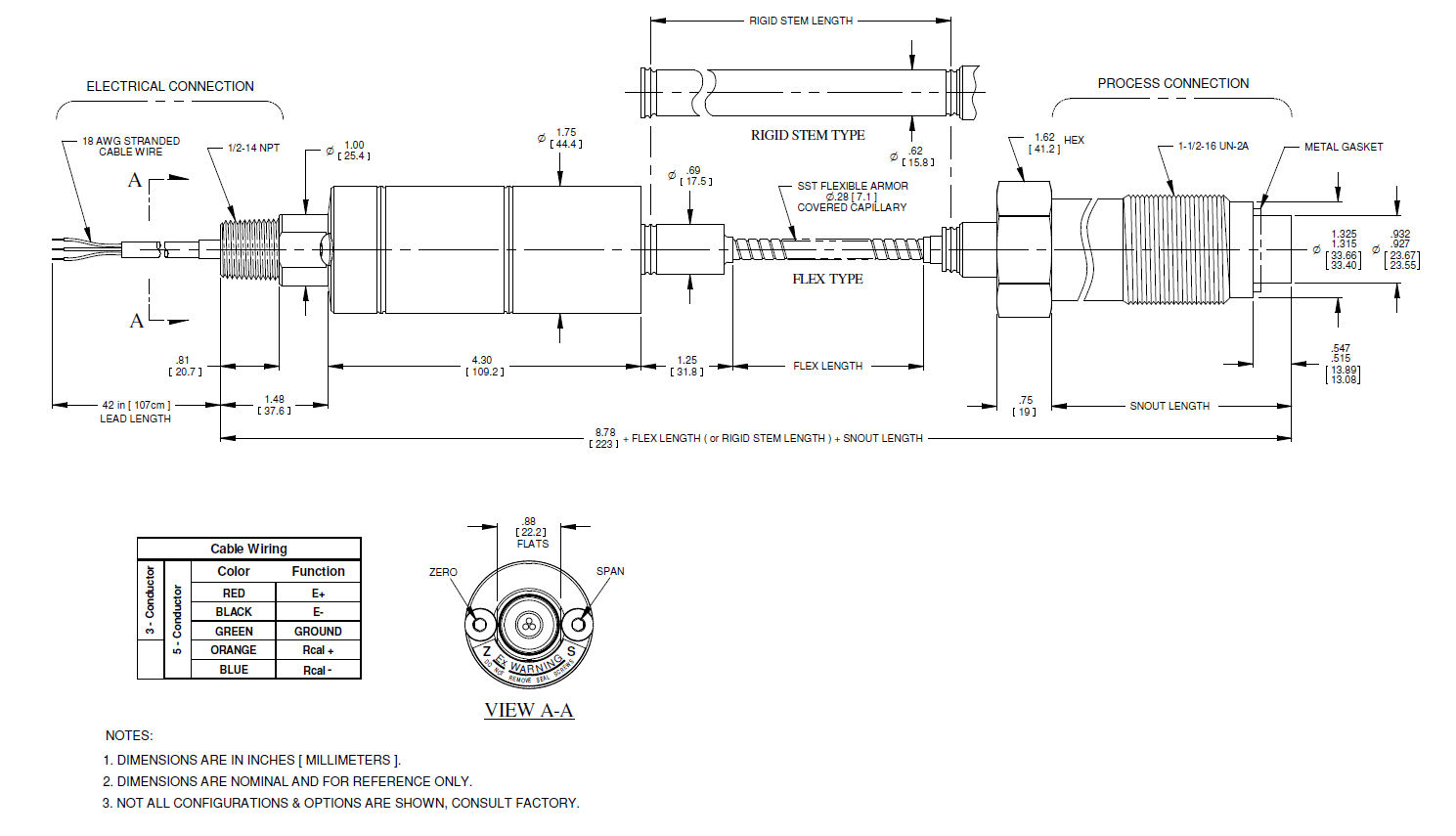

SENSOR DIMENSIONS:
CONNECTOR WIRING DIAGRAM:
Certification & Approval
|
|
EU Declaration of Conformity |
|
|
ISO 9001:2015 |
|
|
EAC - The Eurasian Conformity mark |
|
|
GOST Approval |
|
|
RoHS Compliance Fact Sheet |
|
|
Safety Integrity Level - SIL2 |
|
|
Canada CSA Explosionproof Approval SPX2 & 5 Series |
|
|
KTL IS Approval SPX |
|
|
NEPSI Approval: SPX 2 Series |
|
|
Explosion Protection Certificate of Conformity |
|
|
US FM Explosionproof Approval SPX2 & 5 Series |
