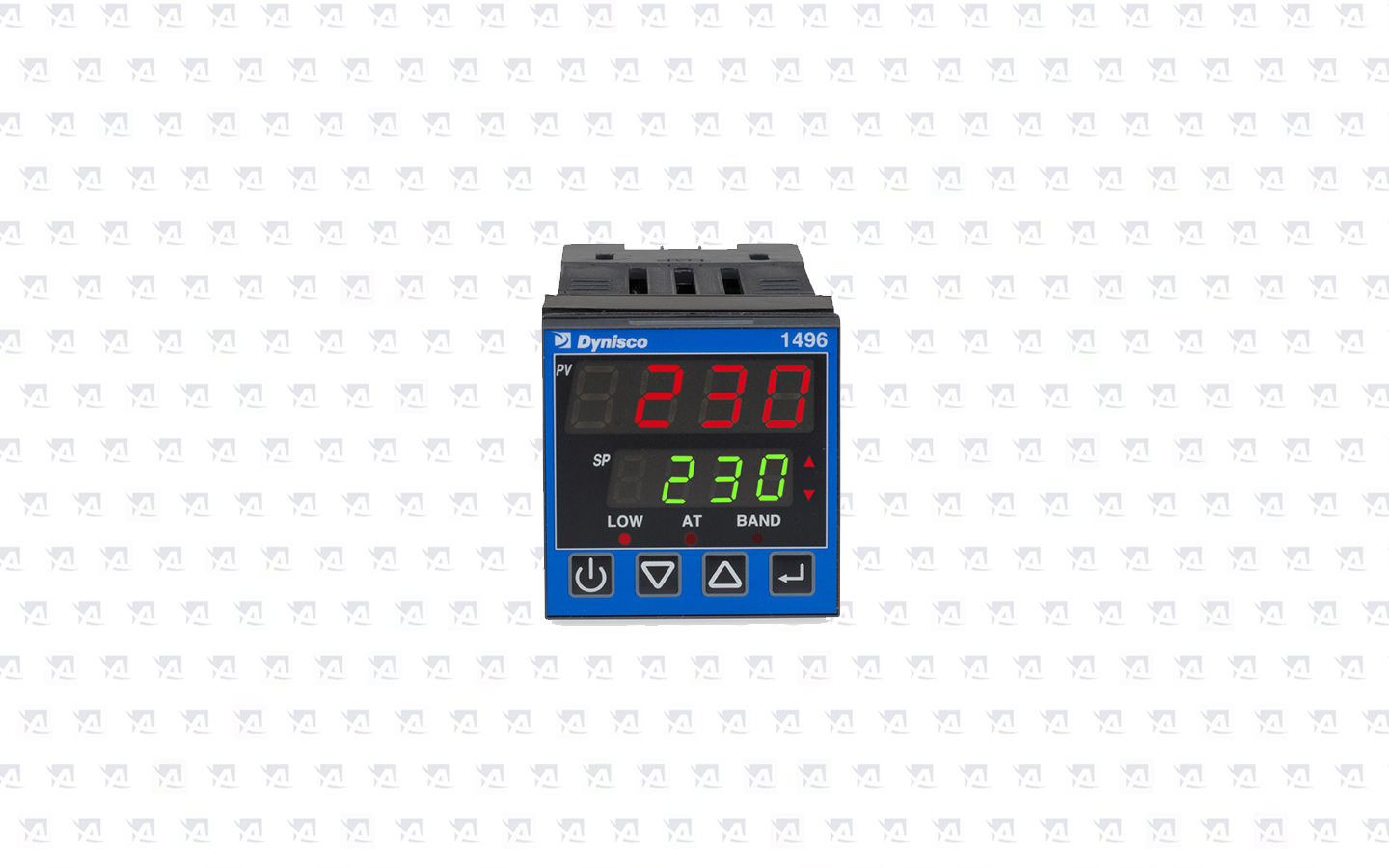

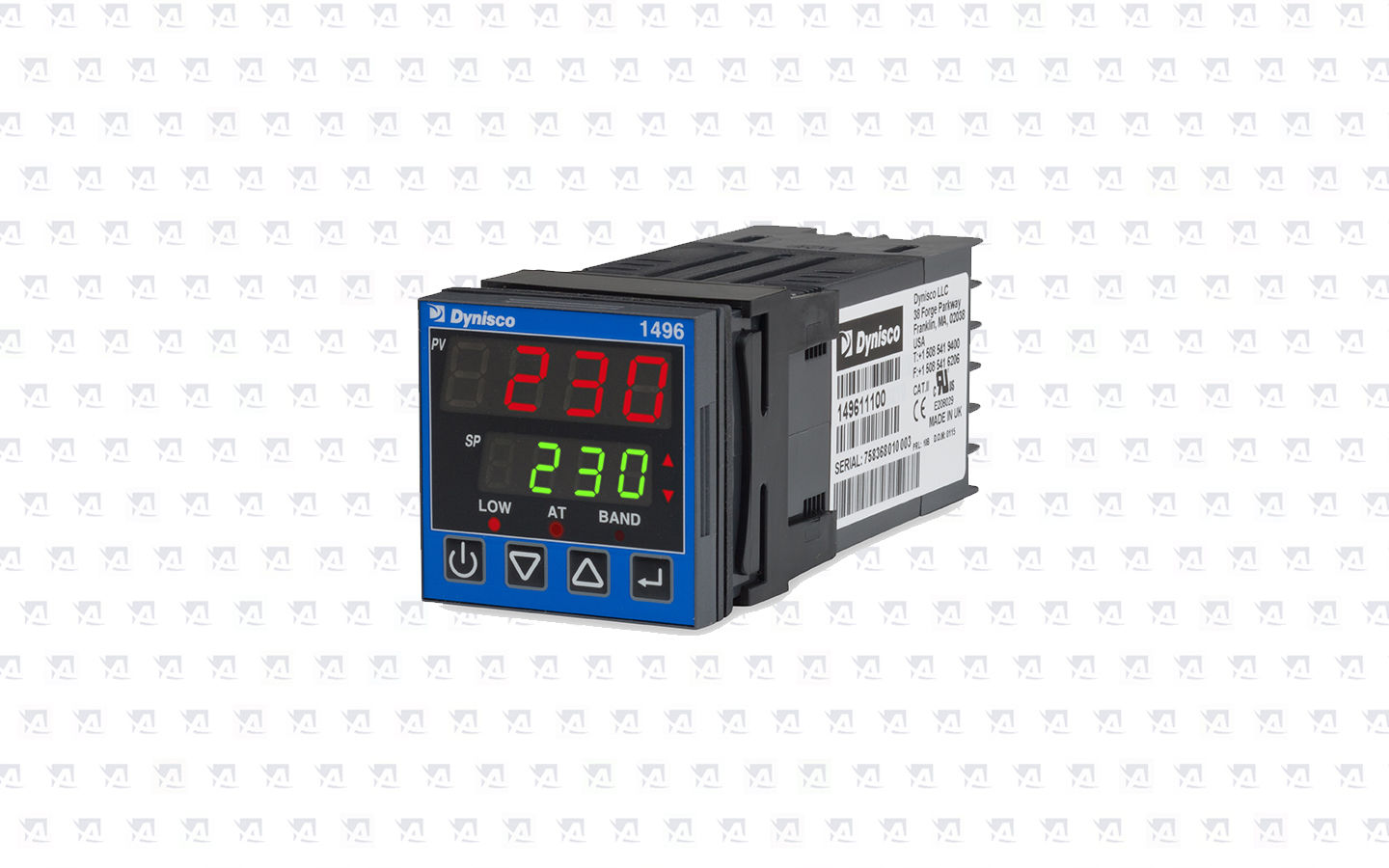

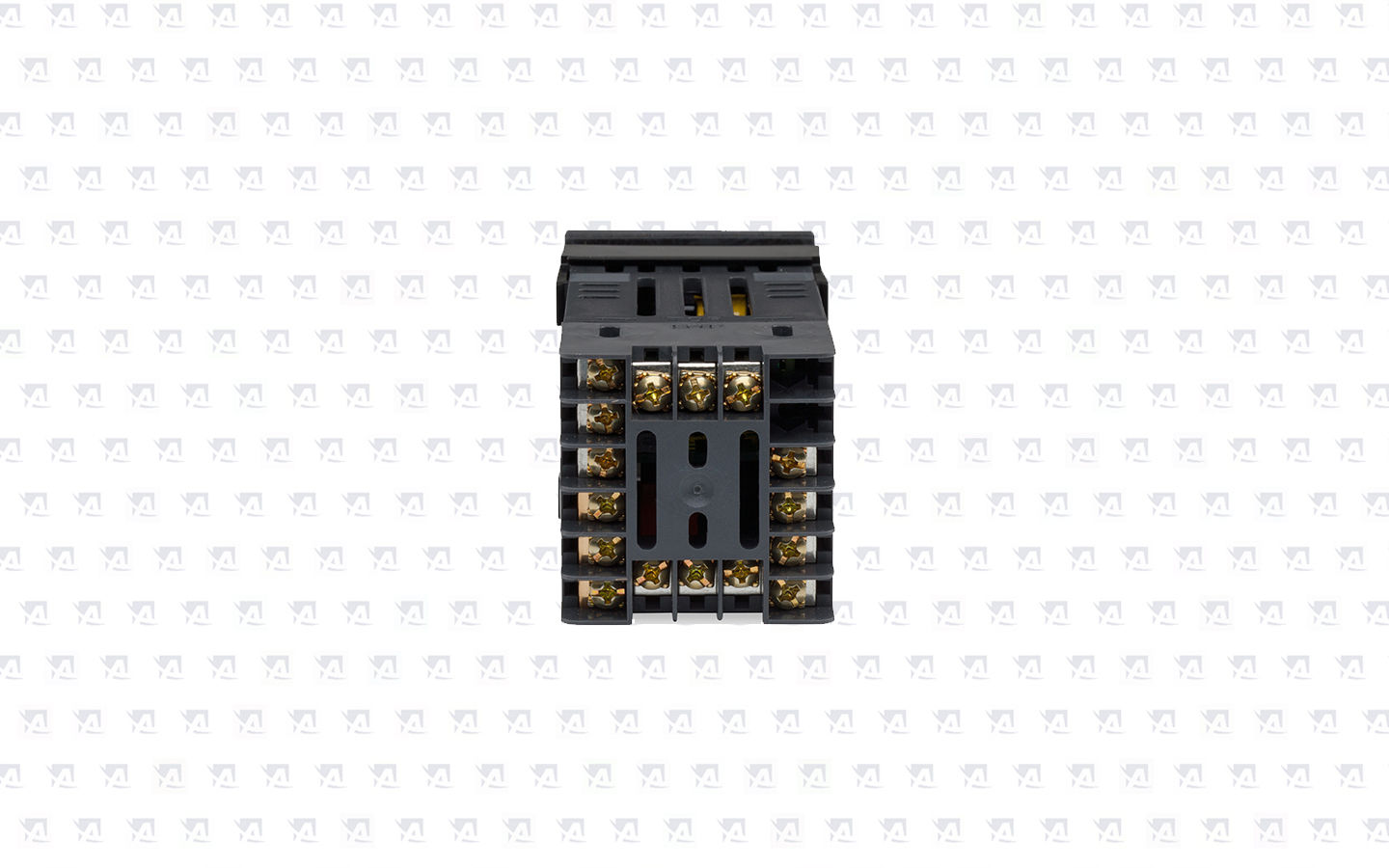

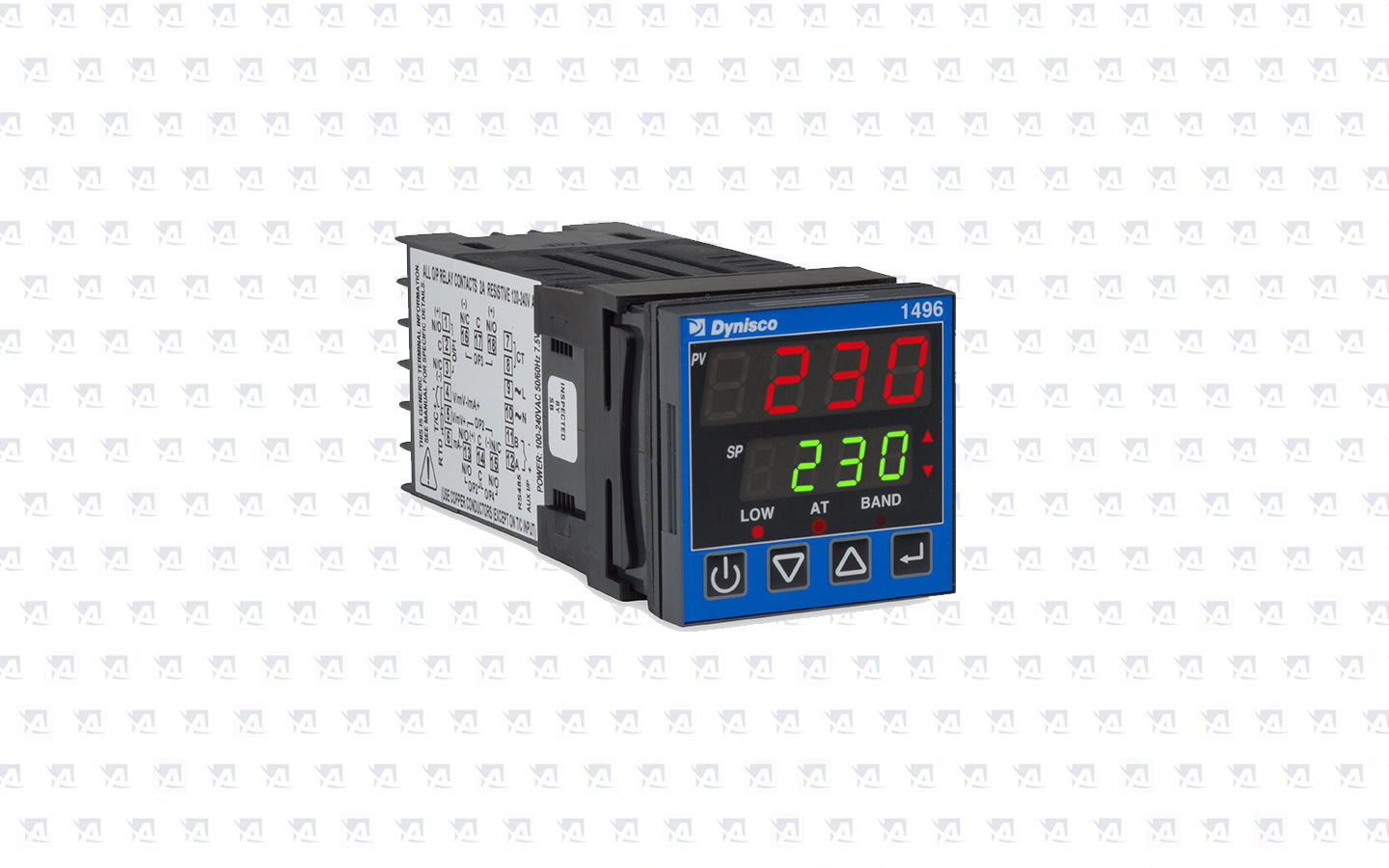

Temperature Controller 1496 Series

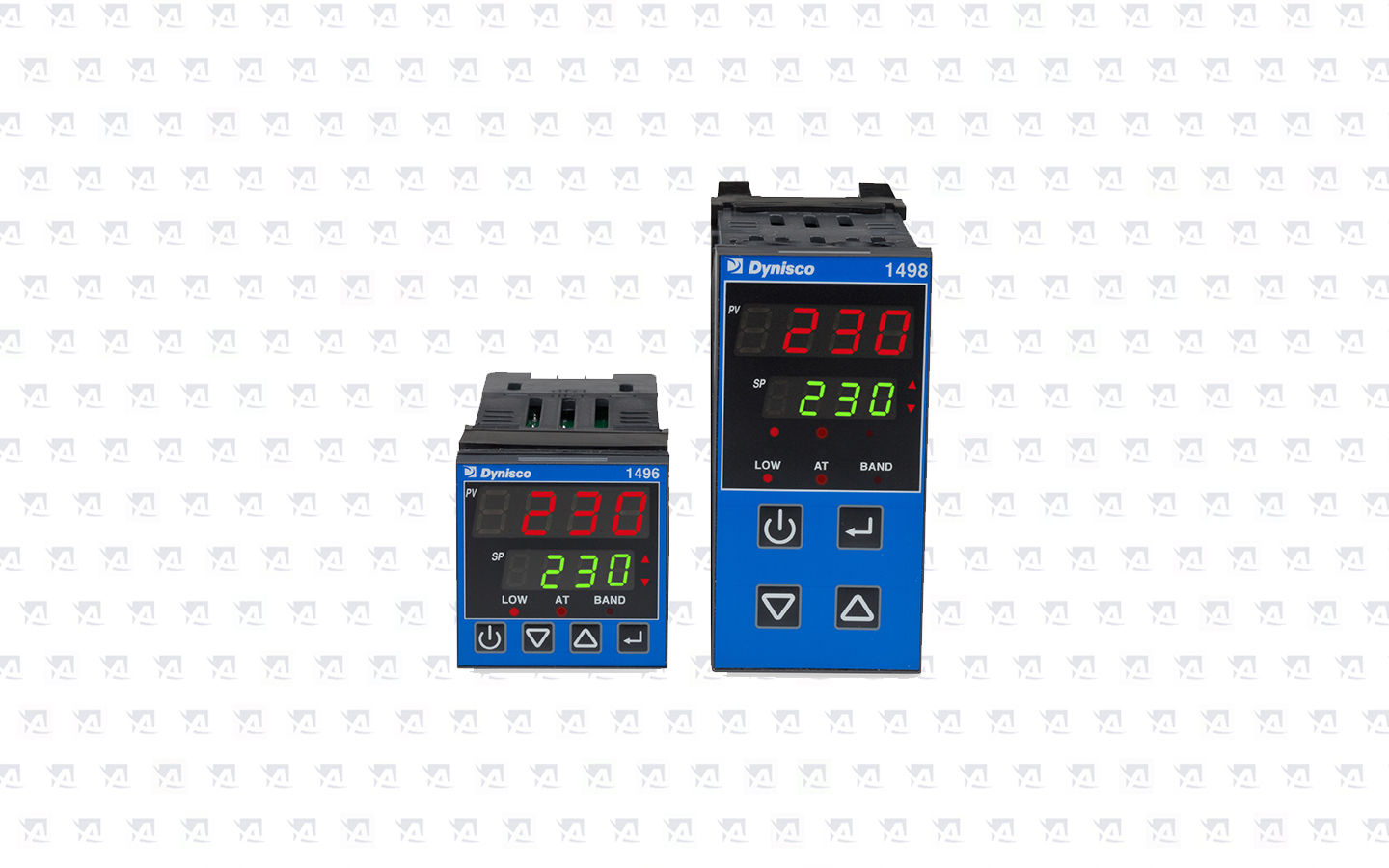

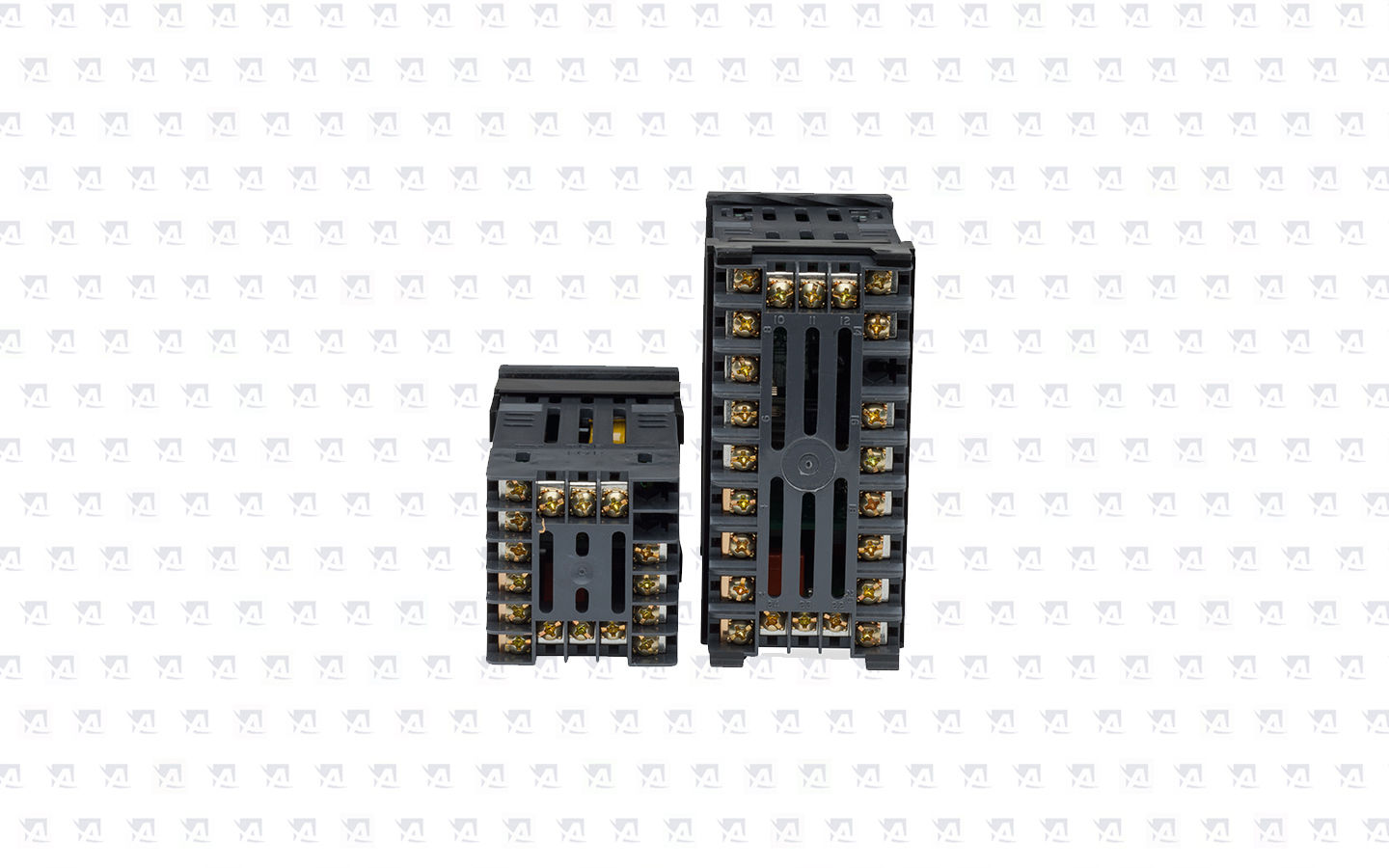

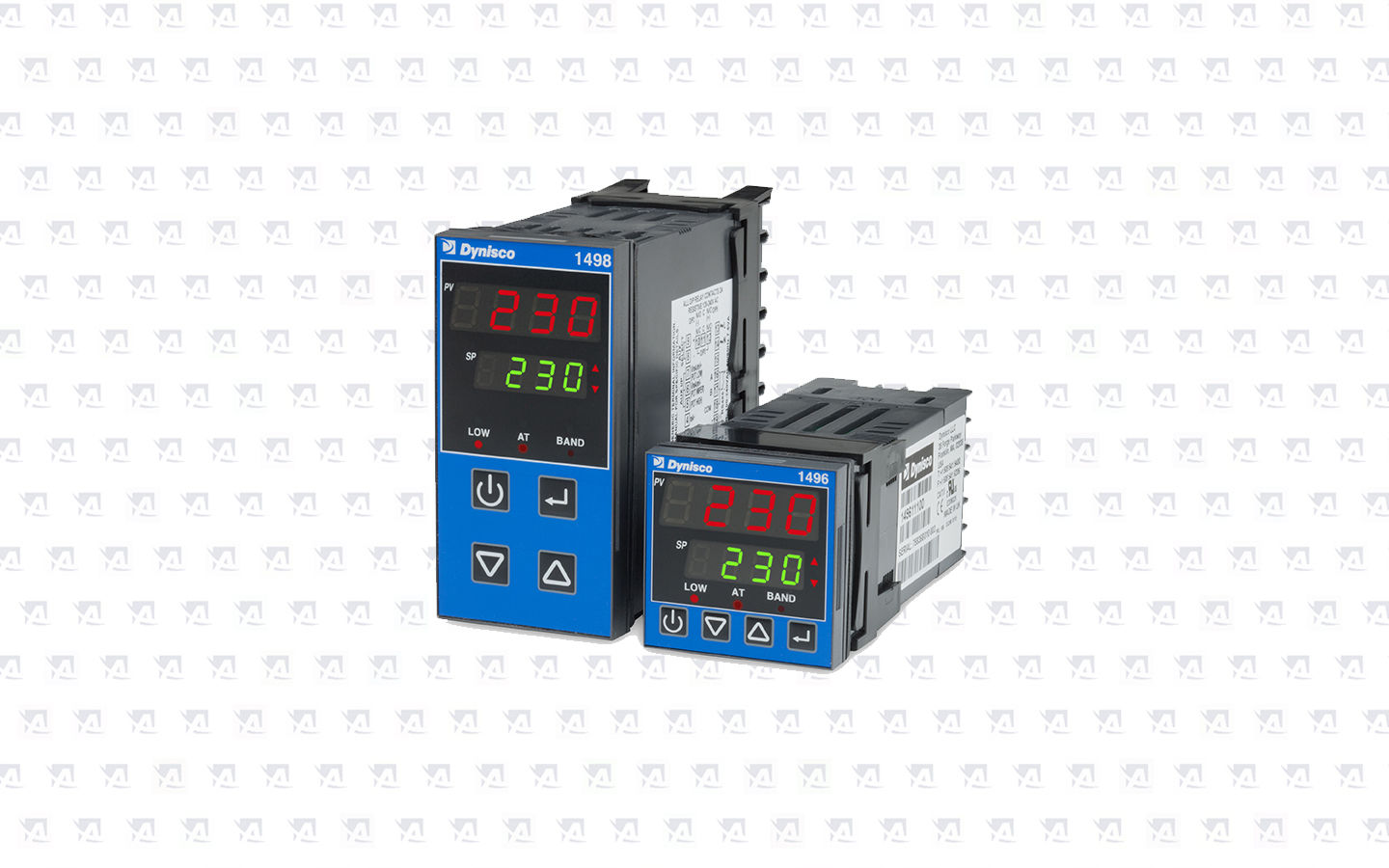

The Dynisco 1496 and 1498 series temperature controllers are a solution for precise temperature control of extruders. With two DIN dimensions and more output configurations, the controller is suitable for temperature control for extruders. The 1496 (1/16 DIN format) and 1498 (1/8 DIN format) controllers can also be used in indicator-only mode, which allows one device to be used for all applications. Ensuring maximum flexibility for industrial process control. The 1496 and 1498 series have been designed for quick configuration to match application-specific settings and default parameters. Triple alarm settings are standard and can be used for process processes with high low value, deviation from SP,, logical OR / AND, loop alarm to ensure process control. All process alarms have adjustable hysteresis.
Temperature Controller 1496 Series
Temperature Controller 1496 Series
Temperature Controller 1496 Series
Temperature Controller 1496 Series
Temperature Controller 1496 Series
Temperature Controller 1496 Series
Temperature Controller 1496 Series
Performance characteristics:
|
Types of input thermocouples:
|
J, K, C, R, S, T, B, L, N & PtRh20% vs. PtRh40%
|
|
|
RTD 3-wire input:
|
PT100, 50Ω for maximum line (balanced)
|
|
|
Accuracy:
|
± 0.1% of input range ± 1 LSD (T / C CJC better than 1 ° C)
|
|
| Device modes: | PID controller or indicator | |
| Types of proceedings: | Full PID function with presetting, automatic tuning, manual tuning or on / off control | |
| Control operations: | Heating or cooling | |
| SSR driver control Outputs: | Possibility of drive> 10V DC at 5000Ω minimum | |
| Output configuration: | Up to 3 possible, for control and alarm | |
| Alarm types, 3 available: | Process is high, low process, SP deviation, band, logical OR / AND | |
| Control and alarm relays: | Contacts SPDT 2 Amp resistor at 240VAC, 500,000 operations | |
| Communication: | 2 wires RS485, 1200 to 19200 Baud, Modbus | |
| DC Linear: | 1- 20mA, 4-20mA, 0-50mV, 10-50mV, 0-5V 2- 5V, 0-10V, 2-10V |
|
| Triac outputs: | 0.01-1 Amp AC, 20 to 280Vrms, 47 to 63Hz | |
| Sampling: | 4 per second, 14 bit resolution (approx.) | |
| Impedance: | 10MΩ for thermocouple range and mV, 47KΩ for V ranges and 5Ω for mA ranges, | |
| Sensor interruption detection: | <2 seconds (except zero-based DC ranges); O / P shutdown control; activation of high alarms for T / C and mV ranges; activate low alarms for RTD, mA or V range |
Mechanical characteristics and packaging:
|
Power source:
|
100 to 240V 50 / 60Hz 7.5VA; 20 to 48VAC 7.5VA; 22 to 65V DC 5W
|
|
|
Automatic or manual control:
|
Choice of panel with plug-in transmission
|
|
|
Control:
|
ON / OFF control can be selected from the keyboard
|
|
| User interface: | 4 buttons | |
| LED display: | 4 digital 10 mm red and bottom 8 mm green plus 5 LED indicators | |
| Short circuit calibration: | With or without resistance (40 to 100% of range) | |
| Scaling: | -1999 to 9999 with adjustable decimal point | |
| Front panel protection: | IEC IP66 (Za krytí panelu IP20) | |
| Temperature, operating: | 32 až 130°F (0 to 55°C) | |
| Temperature, storage: | -4 až 17°F (-20 to 80°C) | |
| Relative humidity: | 20% to 95% RH without condensation |
Approval and self-certification:
|
CE:
|
Directive 2004/108 / EC
|
|
|
ISO:
|
Production environment ISO 9001: 2008
|
|
|
UL, ULc:
|
Underwriters Laboratory (USA and Canada)
|
REGULATOR DIMENSIONS:
DIAGRAM:
