Melt Monitor Series

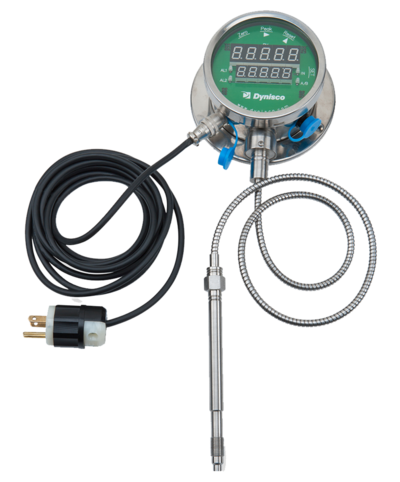

The Dynisco Melt Monitor series of indicators is a melt pressure sensor with an integrated digital display. It has the option of optional temperature measurement. The construction is made of stainless steel, which was designed for the strict environment of the polymer industry. Standard features include digital zero calibration and extreme display on the indicator display. It is easy to operate with accurate pressure measurement over the entire measuring range. Thanks to the optional built-in temperature sensor, the display is able to display pressure and temperature in one place at the same time.
Performance characteristics:
Ranges:
|
5000 psi, 10 000 psi a 15 000 psi
|
|
Pressure accuracy:
|
±1.0%
|
|
Temperature accuracy:
|
±0.5%
|
|
Sampling speed: | 50 mS | |
Power source: | Universal 110/220 Vac or 24 Vdc (optional) | |
Display | 5-digit LED, 0.5 "primary and 0.4" secondary | |
Pressure units: | PSI, bar, MPa or kg / cm2 | |
Distinction: | 1 PSI, 0,1 BAR, 0,01 MPa or 0,1 kg / cm2 | |
Temperature: | °C or °F | |
Distinction: | 0.1°C or 0.1°F |
Temperature and mechanical properties:
Electronics temperature:
|
0 up to 70°C
|
|
Maximum membrane temperature:
|
750°F (400 ° C)
|
|
Humidity:
|
Less than or equal to 80%
|
|
Bridge connection: | 4 or 6 wires (6 for using an external starter switch) | |
Optional temperature / Compensation: | 20 až 325°C | |
Electrical termination: | 1-3 pin connector (included) | |
Weight: | 2.5 to 3.5 lbs. |
