UPR 900 Panel Indicator

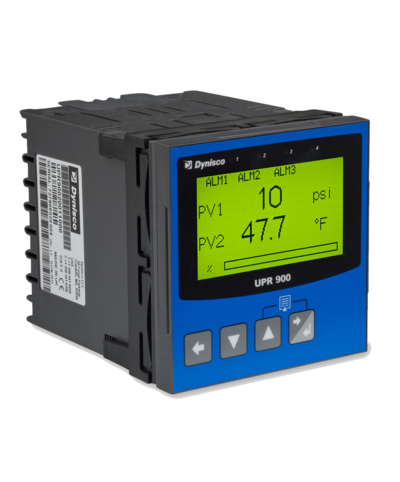

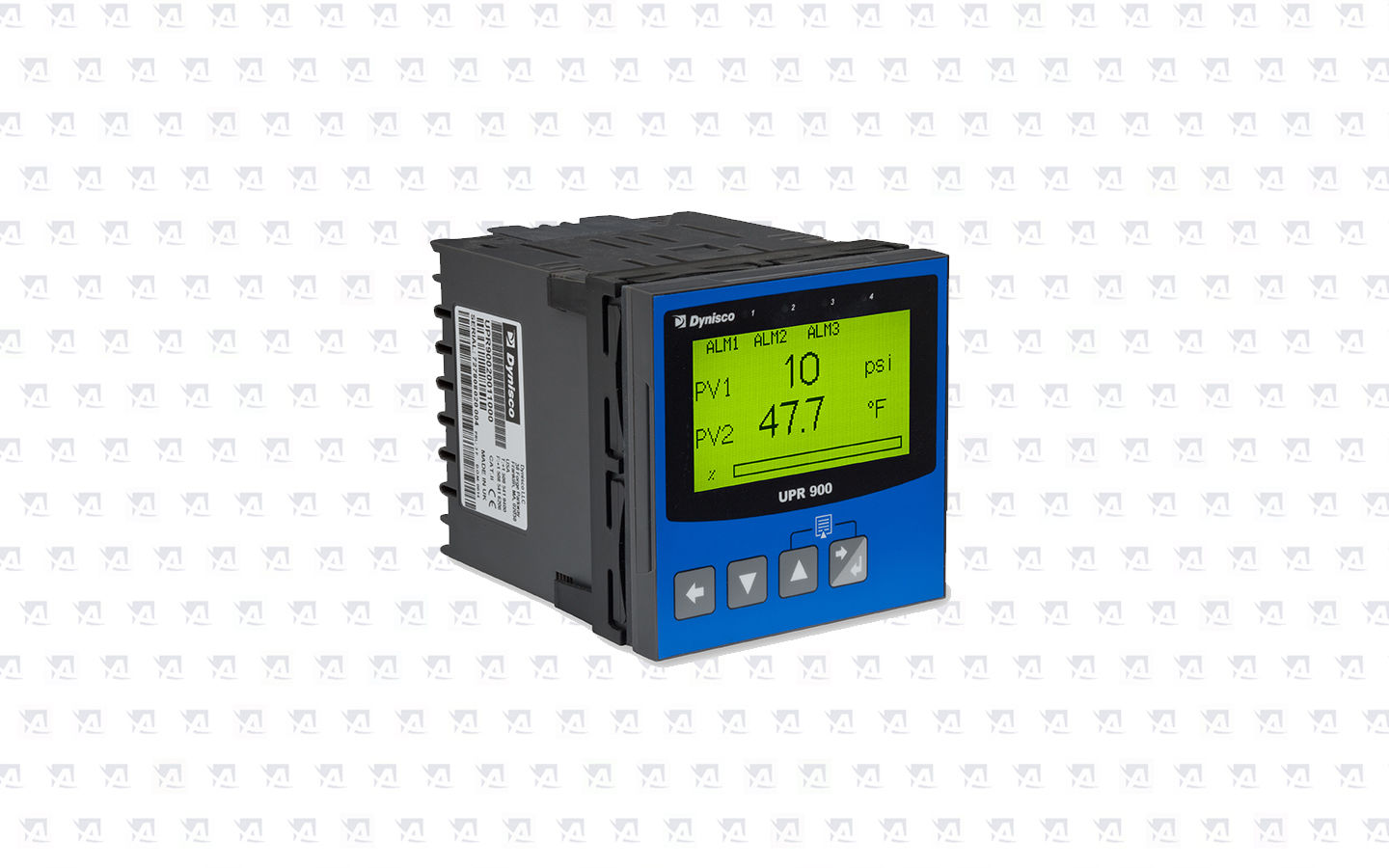

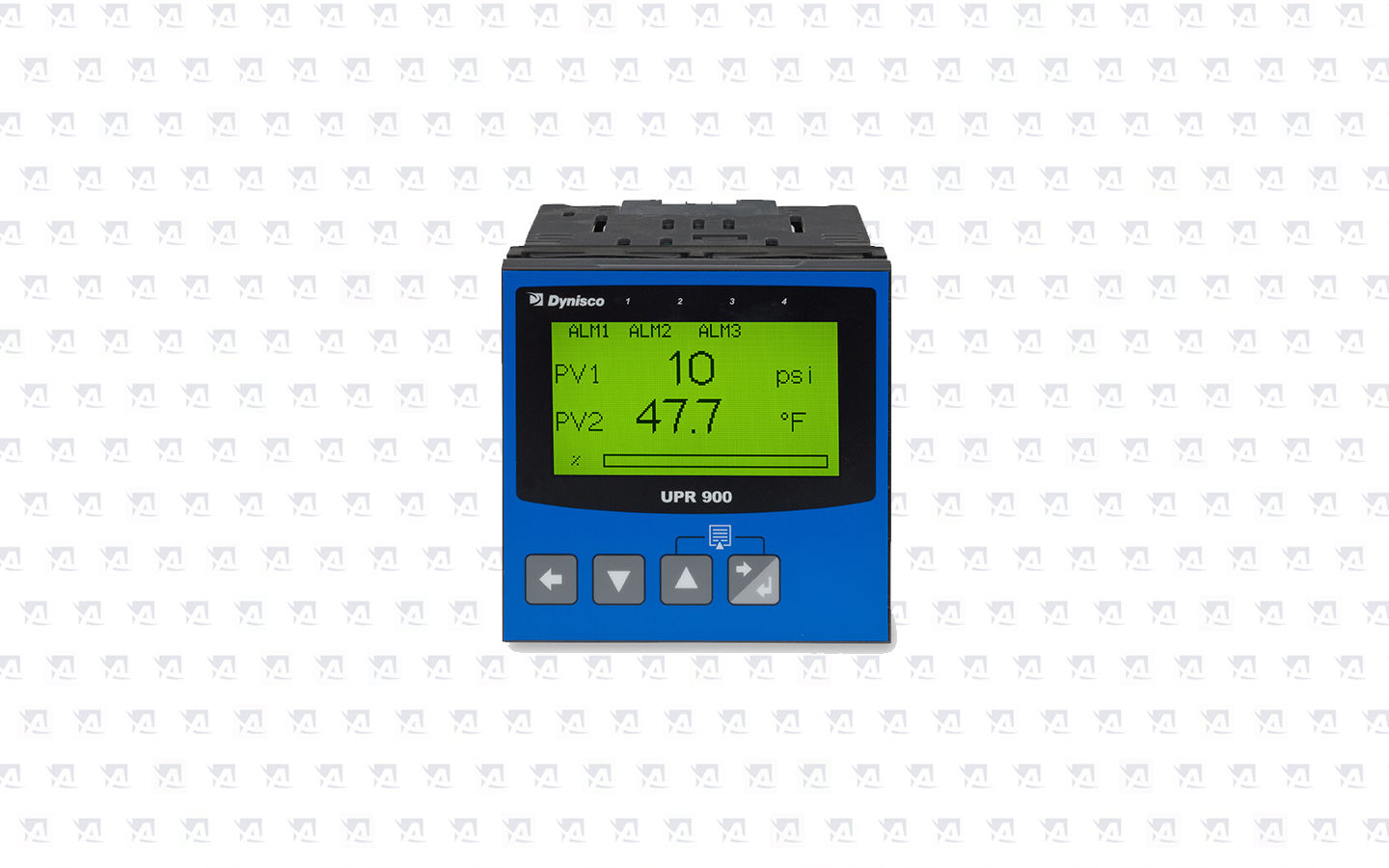

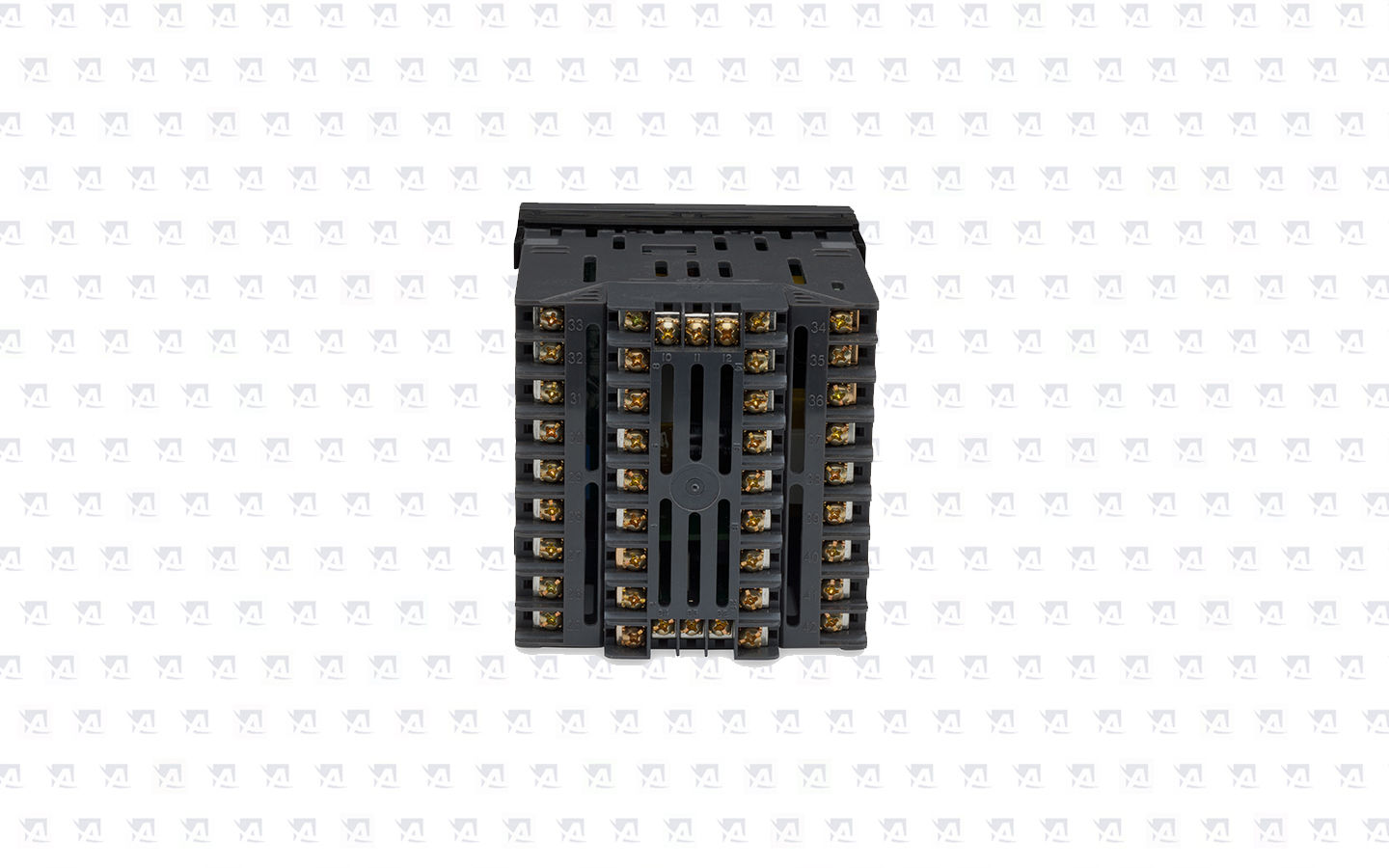

The Dynisco UPR900 is a compact 1/4 DIN process indicator. The UPR900 can display your preferred production process values. Optional secondary input for displaying the temperature or pressure of the polymer melt all in one place. The secondary input can be a strain gauge to measure the differential pressure in the process. The UPR900 contains two standard assigned alarms with the option to add a third alarm.
The graphical LCD display allows easy reading of trend graphs with user-selectable monochrome configurations. The UPR900 can be easily configured in individual sections, can be controlled remotely via optional Modbus RS-485 or can be programmed using BlueControl software.
UPR 9000 Panel Indicator
UPR 9000 Panel Indicator
UPR 9000 Panel Indicator
Performance characteristics:
|
Device type:
|
Digital, PID, indicator for panel mounting
|
|
|
Display:
|
160 x 80 monochrome graphic LCD display with backlight
|
|
|
Thermocouple:
|
± 0.1% of full scale,± 1LSD
(± 1 ° C pro vnitřní CJC, pokud je povoleno)
|
|
| DC Linear: | ± 0.1% of full scale, ± 1LSD | |
| Sampling time: | 50mS, typické |
Indicator inputs:
|
Input:
|
Strain gauge, thermocouple or linear (Vdc, mA)
|
|
|
Strain gauge:
|
350 to 5000Ω, 1.4 to 4mV / V, excitation 10V ± 7%
|
|
|
Linear input:
|
0 to 5Vdc and 0 to 10Vdc, 0 to 20mA and 4 to 20mA
|
|
| Input signal: | -25 to 125% in full range (approximately -10mV to + 50mV) | |
| Input impedance: | <10 Ω for linear current input, 165kΩ for linear voltage input | |
| Short circuit calibration: | With or without resistance (40 to 100% of range) | |
| Digital: | - 25% to + 125% of full scale (approximately -10 mV to +50 mV) | |
| Calibration: | 4 programmable voltage-free closing of contacts |
Alarm outputs:
|
Alarm type:
|
SPST 2A max @ 240Vac resistive load Two relays have a common share
|
|
|
Number of alarms:
|
3 standard
|
|
|
Alarm update time:
|
100mS, typical
|
Indicator outputs:
|
Type (retransmission):
|
0-5Vdc and 0-10Vdc, 0-20mA and 4-20mA
|
|
|
Distinction:
|
15 3/4 bitů
|
|
|
Accuracy:
|
0.1% output range (mA @ <500Ω, V @> 500Ω)
|
|
| Standards and certifications: | CE. Pollution degree 2, installation of category II "UL Listed" |
Indicator communication:
|
Typ:
|
Isolated RS-485
|
|
|
Protocol:
|
Modbus RTU
|
Mechanical characteristics:
|
Mounting:
|
Using the screw on the back
|
|
|
Front panel:
|
IP65 with seal (front USB connector IP65)
|
|
| Operating temperature: | 32 až 122 ° F (0 až 50 °C) | |
| Storage temperature: | - 4 až 158 ° F (-20 až 70 °C) | |
| Humidity: | 85% relative humidity, non-condensing | |
| Weight: | 1,43 libry. (650 g) |
Approval and certification:
|
CE marking:
|
Own certification according to valid standards
|
|
|
Agency approval:
|
UL
|
Indicator power supply:
|
Network power consumption:
Low power version:
|
100 až 240Vac, 50 / 60Hz přepínání
20 až 48 Vac 50 / 60Hz 25VA nebo 22 až 65Vdc 12W
|
|
| Power consumption: | 15VA, max | |
|
Transmitter power supply:
|
24Vdc up to 400Ω min, 60mA drive for 2 or 4-wire mA transmitters
|
