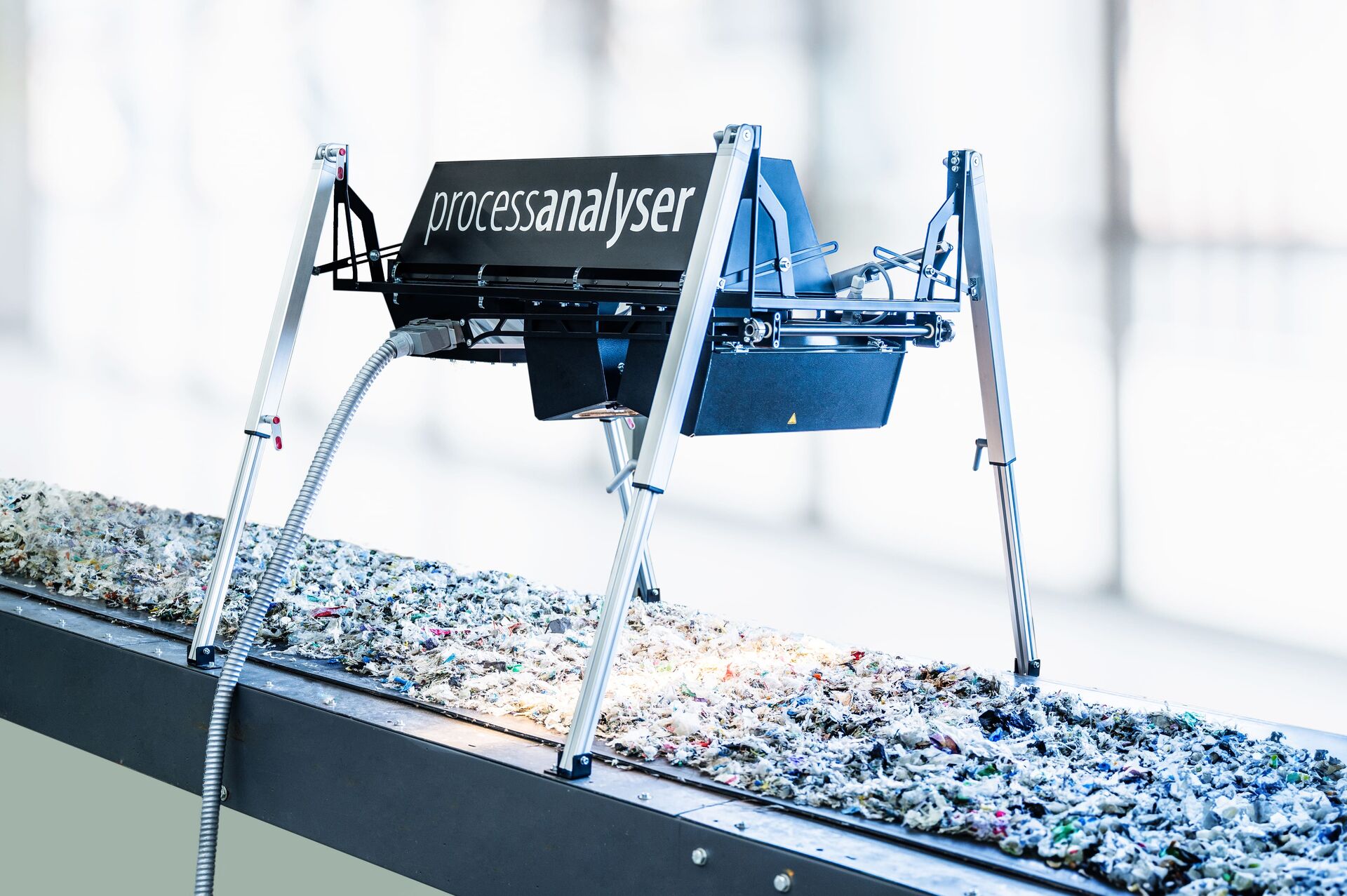

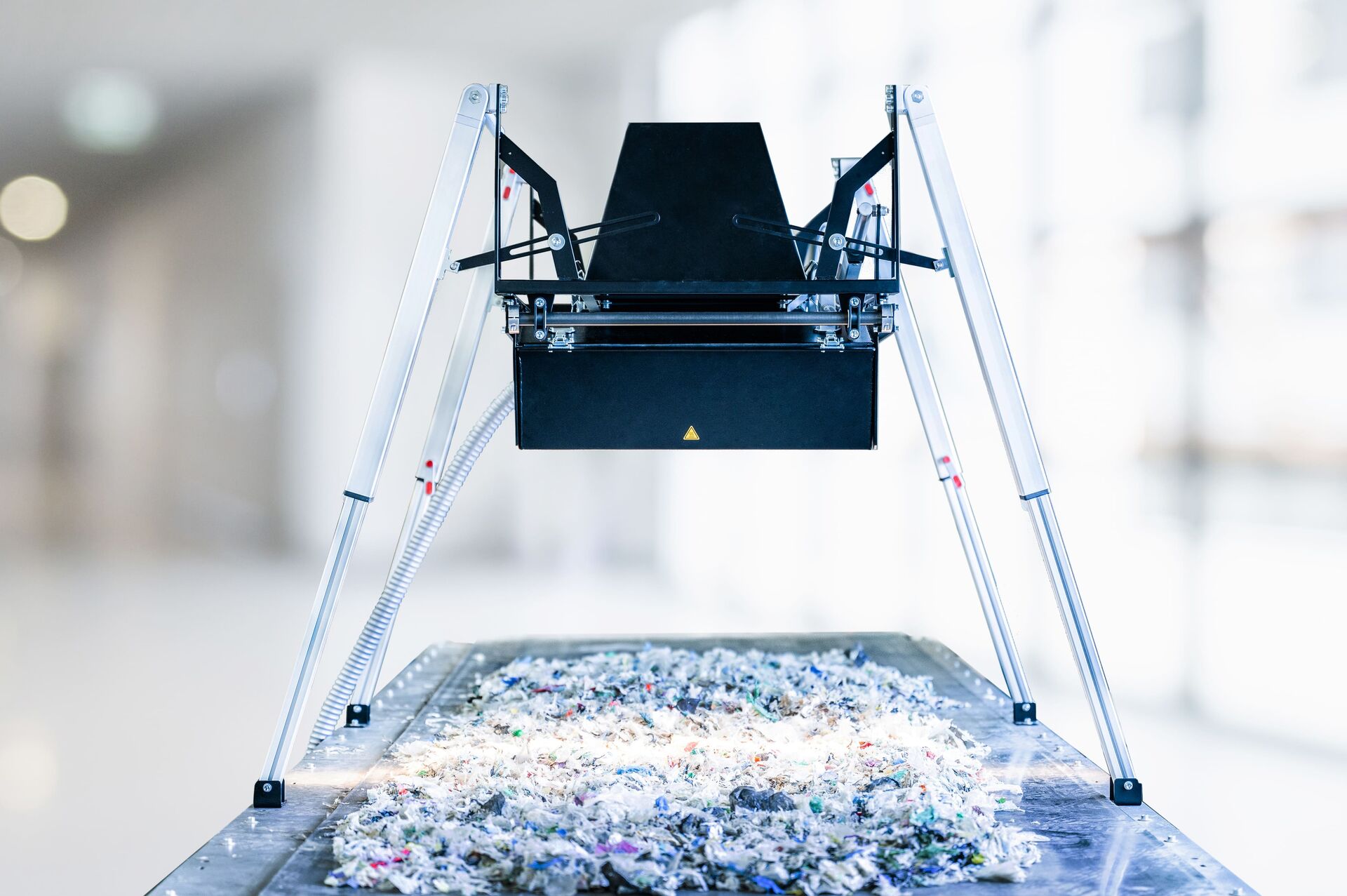

Processanalyser is an inline system for monitoring the quality of mass flows using sensor fusion and AI-based data evaluation.

Device Features

AI-based analysis of crushed 2D/3D materials as well as shaped materials based on:

• Material type and color
• Volume
• Object class (bottle / bowl / 2D, 3D)

• Online recording of mass flows
• Semi-mobile design
• Simple installation on existing conveyor (inclination 0° – 35°)
• Modern and robust design
• Intuitive operation via touchscreen
• Automatic archiving of analysis results (apparently repeated by mistake)

Technical Data

• Detection dimensions: 1,250 mm (H) × 650 mm (W) × 680 mm (D)
• Control cabinet dimensions (on wheels): 1,300 mm (H) × 1,000 mm (W) × 400 mm (D)
• Weight: approximately 50 kg
• Power consumption: max. 2.5 kW
• Particle size range: 6 – 350 mm
• Suitable conveyor widths: 600 – 2,000 mm
• Maximum belt speed: 1.5 m/s
