The EPR4 series are sensors with ± 0.5% accuracy ideal for food or medical applications requiring easy installation, repeatability and reliability. Technology Push Rod design is especially suitable for food or medical applications with the possibility of filled systems. EPR4 provide an industry standard in the form of an amplified 4-20 mA signal designed to work with DCS and PLC. The EPR4 model is available in various pressure variants.

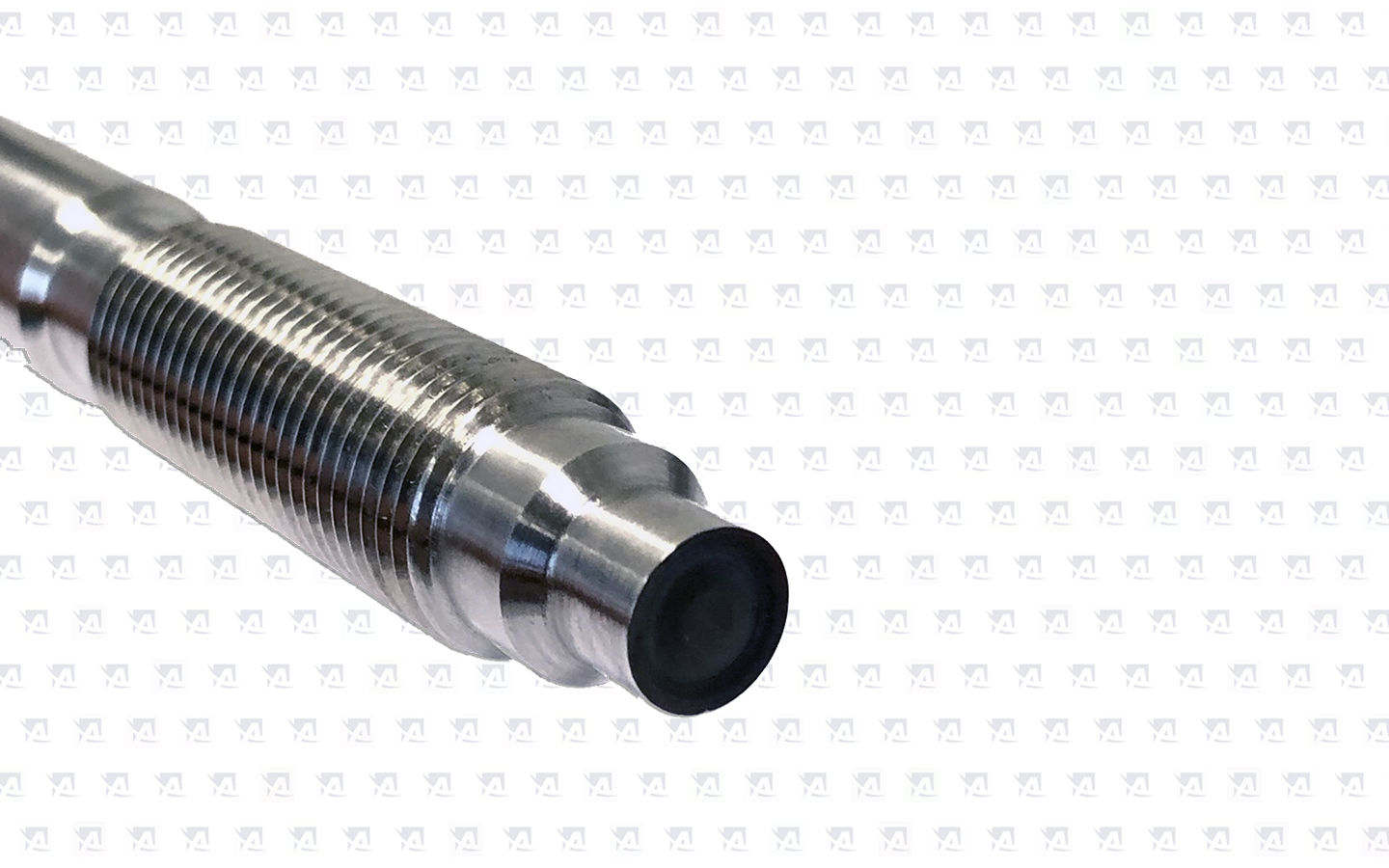

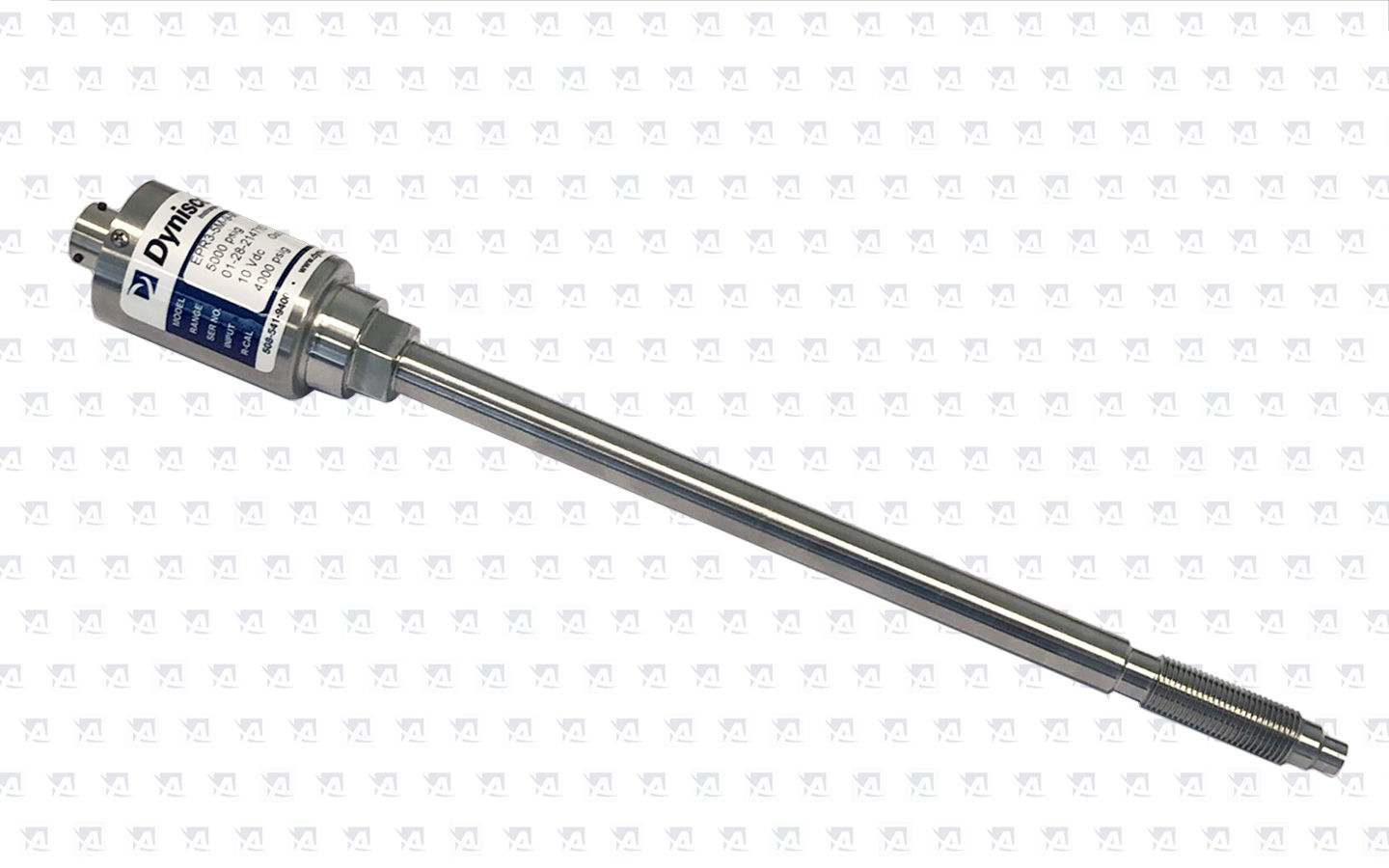

EPR pressure sensor with rigid construction and mercury-free filling.

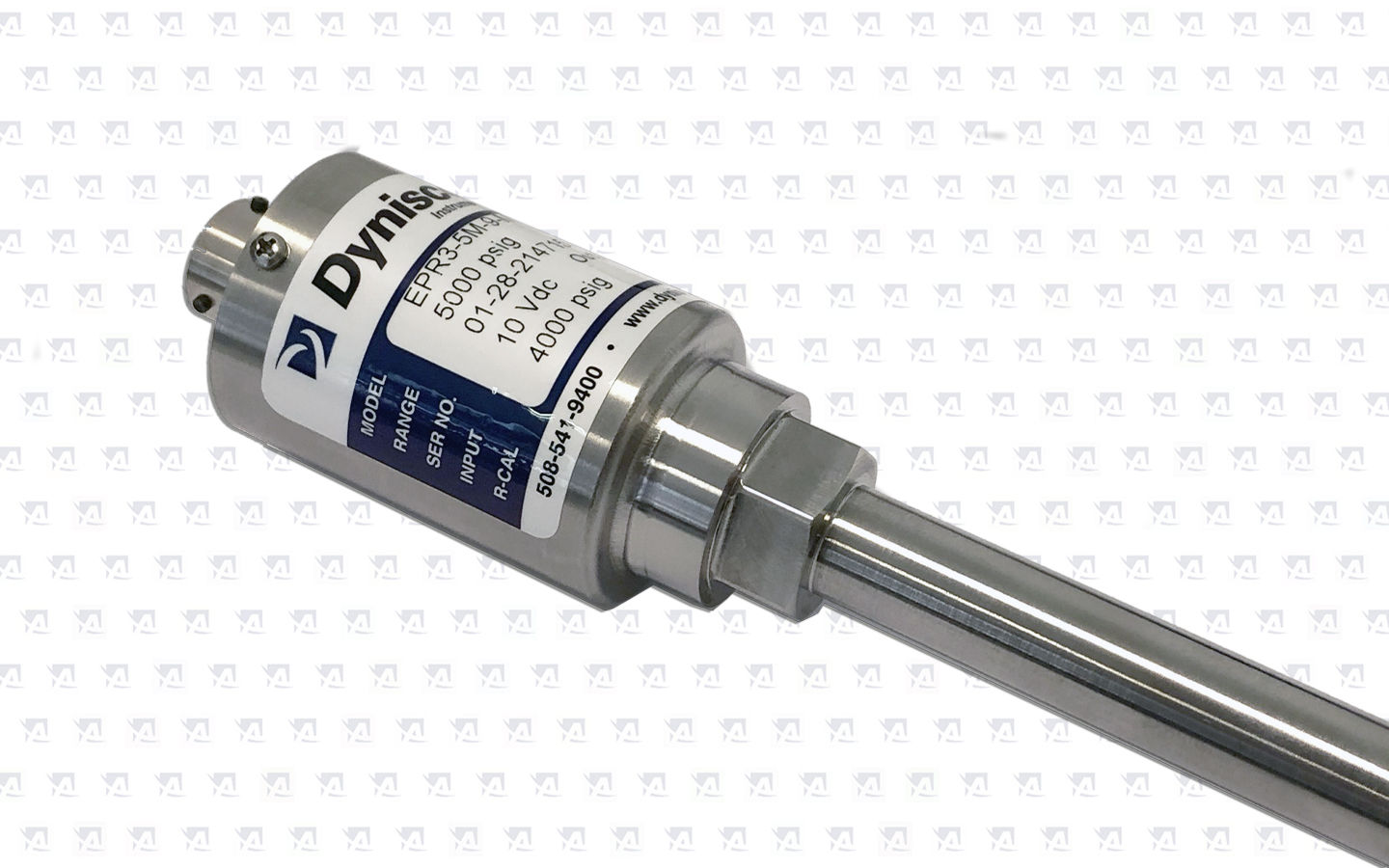

EPR pressure sensor with rigid construction and mercury-free filling.

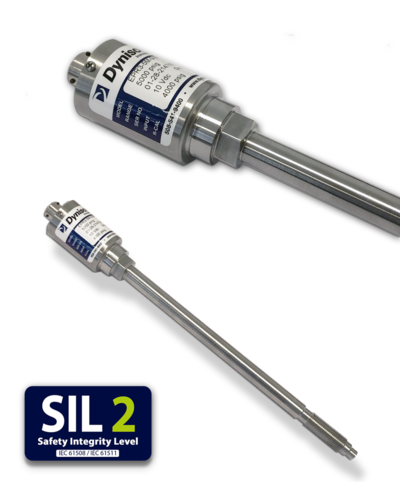

EPR pressure sensor with rigid construction and mercury-free filling.

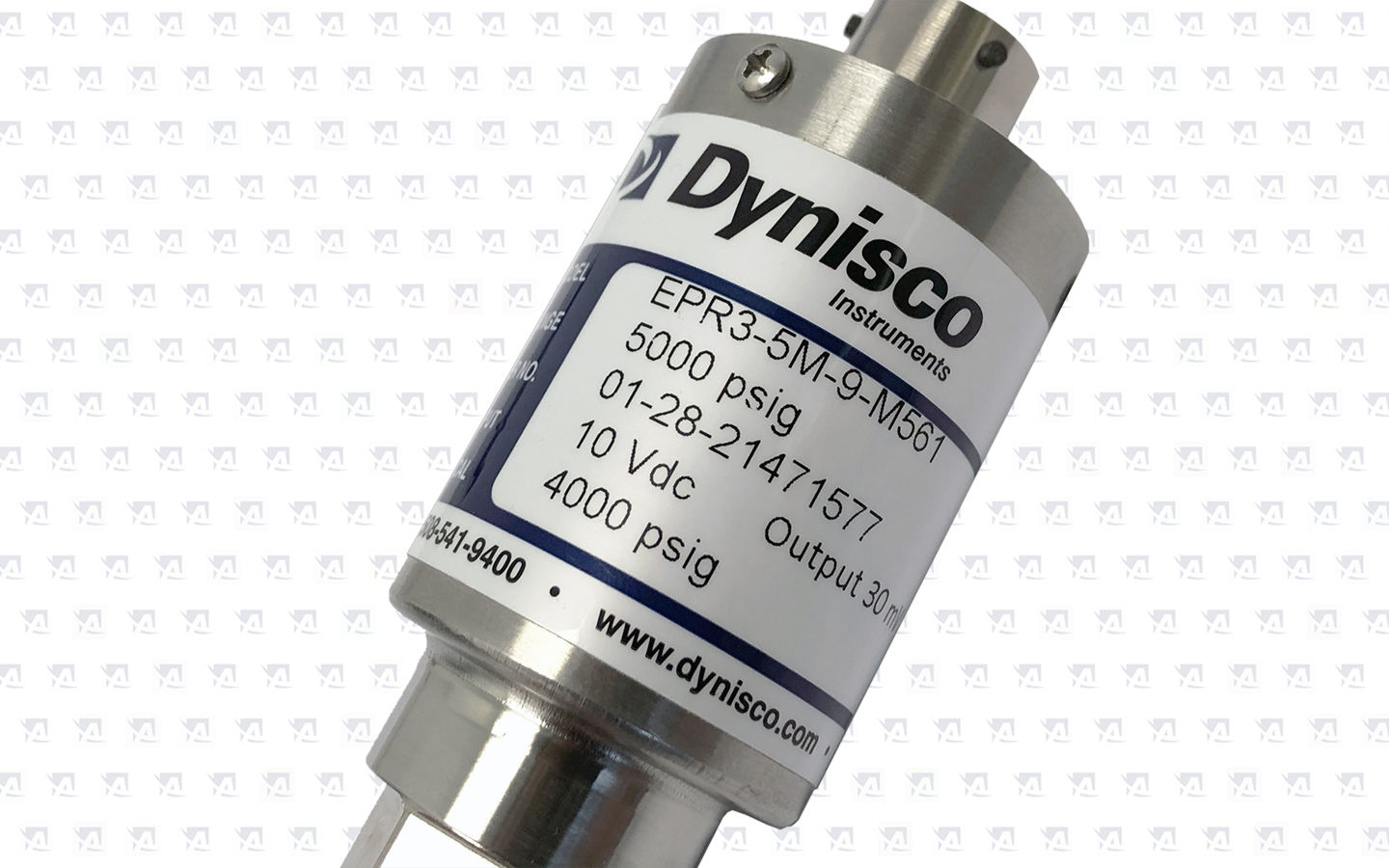

EPR pressure sensor with rigid construction and mercury-free filling.

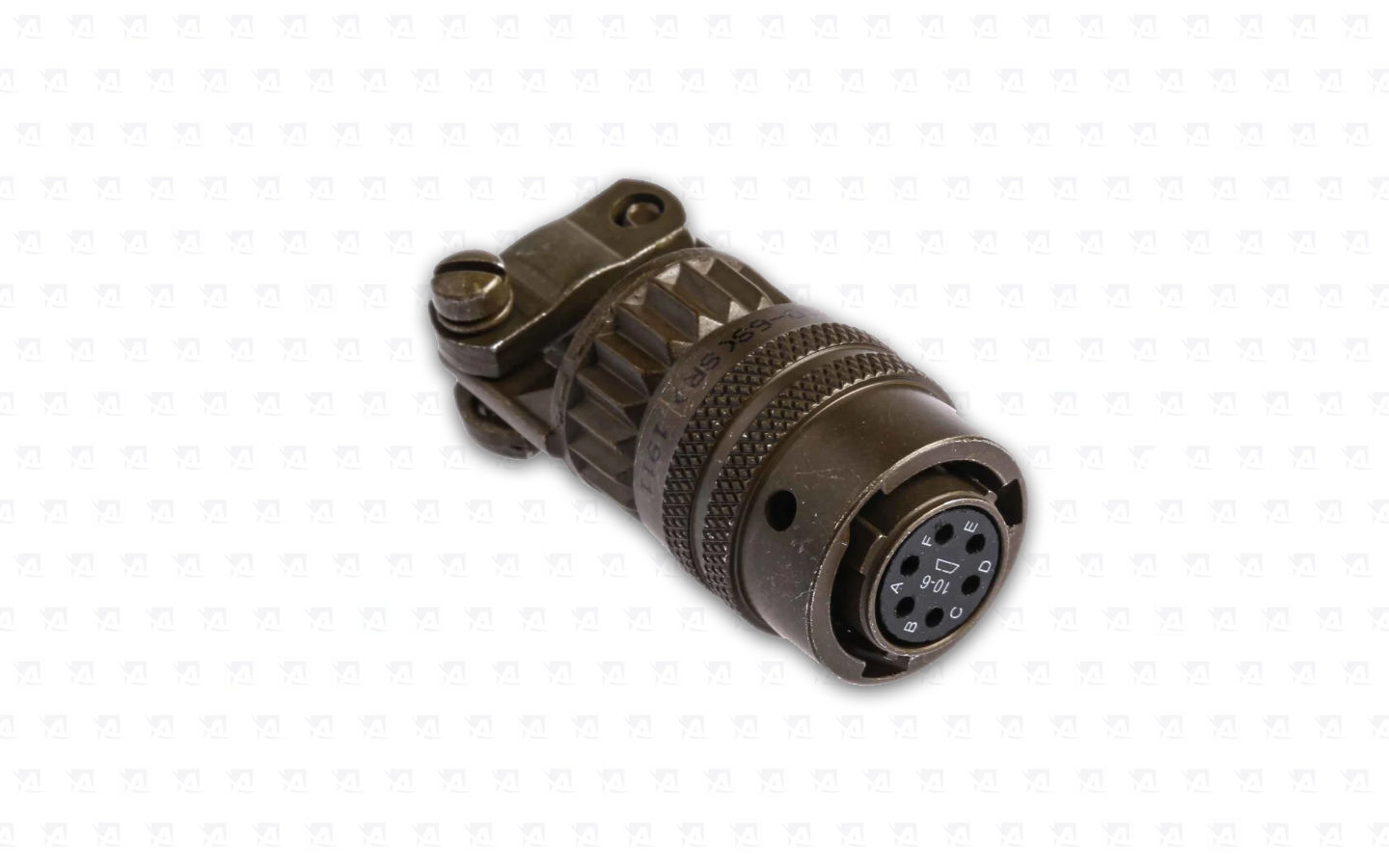

Detail - Bayonet cable connector Amphenol 6-PIN
Detail - Bayonet cable connector Amphenol 6-PIN
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.
If you need more information do not hesitate to contact us.
The push-rod technology provides a design suitable for applications where a filled system may not be desirable. The EPR4 transmitters provide the industry standard 4 - 20 mA amplified signal designed to work with DCS and PLCs. The EPR4 comes equipped with adjustable zero and span pots. Optional thermocouple or RTD configurations are available to provide melt temperature. The EPR4 can feature either the standard push rod configuration (see mechanical drawing) or a 1/2-20 UNF thread for simple and easy installation in standard transducer mounting holes (M561).
Rigid Stem pressure sensors are easily installed into the mounting hole of the production line, ensuring a simple and robust design that is suitable for applications where the sensor is not exposed to radiant heat from the line and the electronics are not subjected to extreme temperatures. We do not recommend installing these sensors in a vertical position above the line (12 o'clock position), as radiant heat can negatively affect the sensor's electronics lifespan. In such cases, we recommend using a sensor design with a flexible capillary, which allows the electronics to be diverted away from the radiant heat, ensuring a long sensor life. The main advantages of this type of sensor include resistance to impacts and vibrations, enabling them to withstand mechanical stress, which increases their lifespan and reduces the need for maintenance. They also feature high accuracy, ensured by quality materials and advanced measurement technology, which is crucial for efficient process control.
| Ranges (psi): | 0 - 10 000 PSI |
|---|---|
| Accuracy: | ±0.5% FSO |
| Repeatability: | ±0.2% FSO |
| Mounting Torque: | 100 inch - lbs. recommended, 250 inch - lbs. maximum |
| Maximum Pressure: | 150% full scale |
| Material In Contact With Pressure Media: | 17 - 4 PH stainless steel, Dymax® coated |
| Weight: | 13.25 oz |
| Configuration: | Four active arm bonded Wheatstone bridge strain gage |
|---|---|
| Bridge Resistance: | Input: 345 Ohms minimum; Output: 350 Ohms ±10% |
| Excitation: | 10 Vdc recommended, 12 Vdc maximum |
| Internal Shunt Calibration (R-Cal): | 80% FSO ±1.0% |
| Insulation Resistance: | 1,000 megohms at 50 VDC |
Transducer Diaphragm: |
|
|---|---|
| Maximum Diaphragm Temperature: | 750°F (400°C) |
| Zero Shift Due To Temperature Change: | ±1.0% full scale/100°F (±2.0% full scale/100°C) |
| Sensitivity Shift Due To Temperature Change: | ±1.0% full scale/100°F (±2.0% full scale/100°C) |
Electronics Housing: |
|
| Maximum Temperature: | 250°F (121°C) |
| Zero Shift Due To Temperature Change: | ±1.0% full scale/100°F (±2.0% full scale/100°C) |
| Sensitivity Shift Due To Temperature Change: | ±1.0% full scale/100°F (±2.0% full scale/100°C) |
Torque wrench Wera 075611 Click-Torque B 2 with switch ratchet 3/8 "(20 - 100 Nm)
Wera Click-Torque torque wrenches are supplied as switch ratchets (with connection dimensions 1/4 ", 3/8", 1/2 "and 3/4") or with clamping for socket tools (9x12 mm, 14x18 mm) for tightening torques from 2.5 Nm up to 1,000 Nm.
All Wera Click-Torque torque wrenches manufactured in accordance with DIN EN ISO 6789 are supplied with a declaration of conformity.
Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.
The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.
