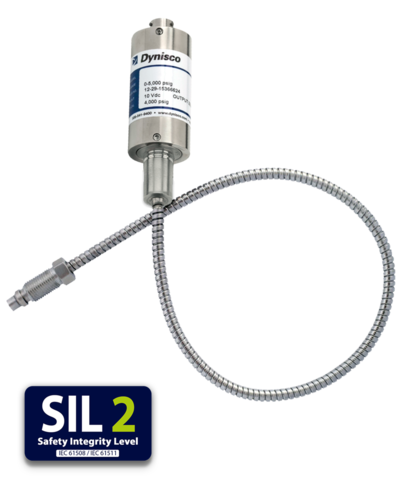

The Dynisco PT4654XL Series transmitter is a ±0.5% sensor ideal for injection molding machine nozzles or hot runners to measure polymer melt pressure. The PT4654XL transmitter provides the industry standard 4 - 20 mA amplified signal to data acquisition or SPC/SQC programs. The PT4654XL comes equipped with adjustable zero and span pots. The PT4654XL features a 1/2-20 UNF jam nut for simple and easy installation in space restricted areas. The transmitter can be supplied in a variety of lengths to meet the requirements of the application.

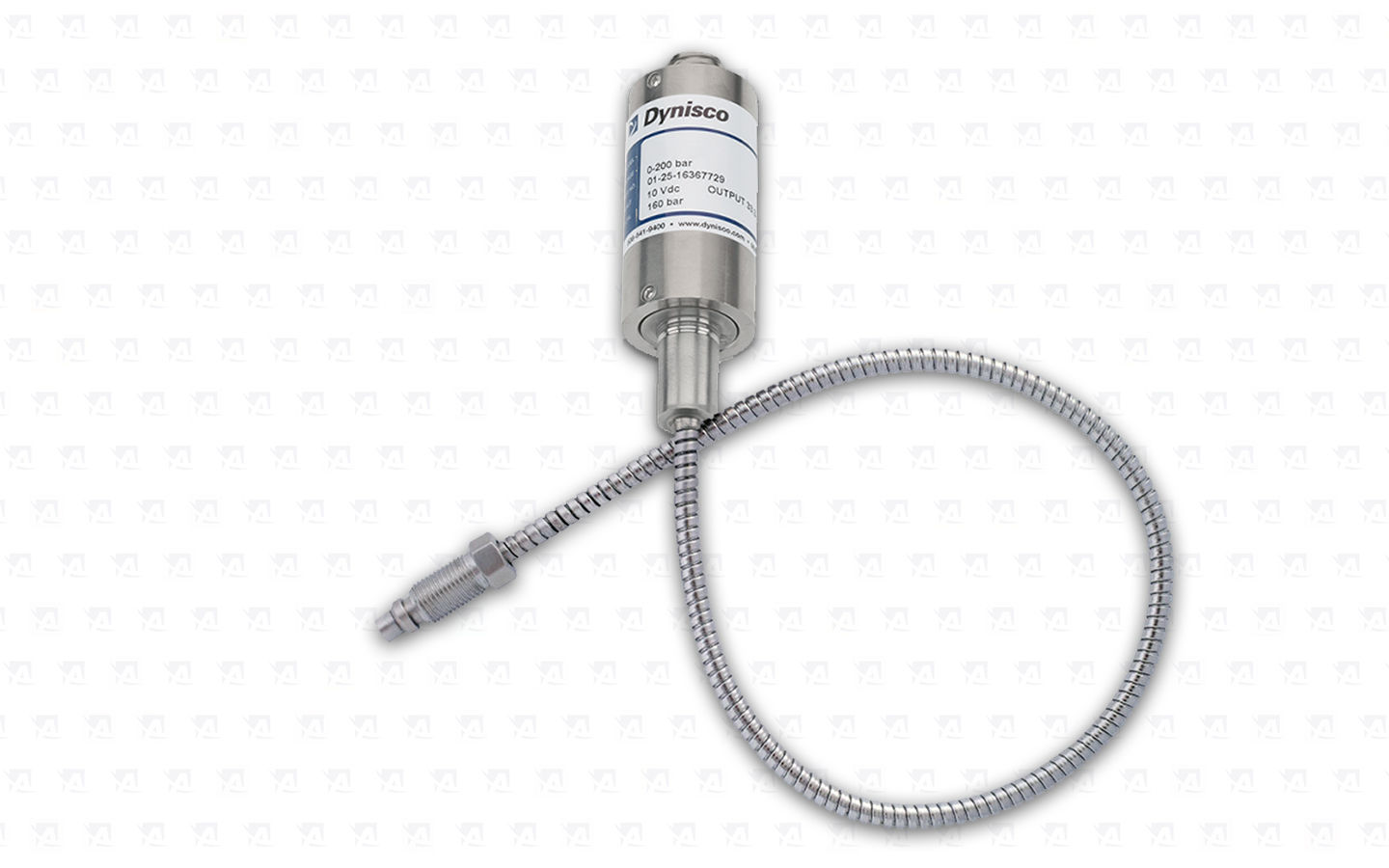

Melt pressure sensor in design with exposed capillary XL
Sensor terminal and compatible cable connector
Adjusting screws - used to adjust the zero and upper range of the sensor
Detail - Bayonet cable connector Amphenol 6-PIN
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.
If you need more information do not hesitate to contact us.
The sensor is equipped with a durable flexible capillary throughout its entire length, which further enhances its lifespan and provides increased robustness.
This innovative pressure sensor is perfectly designed for injection molding applications with
minimal installation space requirements. Thanks to its unique features and cutting-edge technical parameters, this sensor can handle demanding conditions in any environment. The manufacturer has spared no expense on advanced technologies and sophisticated production processes, allowing the sensor to achieve very small dimensions and low weight without any compromise to its exceptional performance. The pressure sensor is an ideal solution for a wide range of injection molding applications due to its exceptional resistance to vibrations, which it can withstand very well. A pleasant bonus is the easy and hassle-free installation of this sensor in spaces with limited dimensions.
| Output: | 4 - 20 mA |
|---|---|
| Input Voltage: | 14 - 36 Vdc |
| Combined Error: | ± 1.0% FSO (Including Linearity, Repeatability & Hysteresis) |
| Repeatability: | ± 0.2%FSO |
| Configuration: | Four-arm bonded foil Wheatstone bridge strain gage |
| Load Resistance: | 0 - 1,100 Ohms |
| Over Pressure: | 2 X FSO or 35,000 psi (whichever is less) |
| Zero Balance Adjustment Range: | ± 0.5%, min. -2% to 5% fs |
| Internal Shunt Calibration (R-Cal): | 80% FSO ± 0.5% |
| Insulation Resistance: | 1000 megohms @ 50 Vdc |
| Max Diaphragm Temperature: | 750ºF (400ºC) |
|---|---|
| Zero Shift (due to temperature change): | < 20 psi/100°F Typical (36 psi/100°C) |
| Electronics Operating Temperature: | -20ºF to 185ºF (-25ºC to 85ºC) |
| Zero Shift Due to Temperature Change: | ± 0.05% FS/ºF max (± 0.10% FS/ºC max) |
| Mounting Torque: | 250°F (121°C) |
| Zero Shift Due to Temperature Change: | 500 inch/lbs. maximum |
| Standard Wetted Parts: | Inconel 718 |
All dimensions are inches (mm) unless otherwise specified.
Torque wrench Wera 075611 Click-Torque B 2 with switch ratchet 3/8 "(20 - 100 Nm)
Wera Click-Torque torque wrenches are supplied as switch ratchets (with connection dimensions 1/4 ", 3/8", 1/2 "and 3/4") or with clamping for socket tools (9x12 mm, 14x18 mm) for tightening torques from 2.5 Nm up to 1,000 Nm.
All Wera Click-Torque torque wrenches manufactured in accordance with DIN EN ISO 6789 are supplied with a declaration of conformity.
Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.
The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.
1480 is a universal pressure or temperature indicator with one or double configurable alarm as well as optional linear retransmission of the displayed process. Ideal for use in extrusion applications.
Indicator 1490 is a universal device with one or two configurable alarms, optional linear process variable retransmission, optional pressure sensor power supply, and optional Modbus communication.
The Dynisco UPR900 is a compact 1/4 DIN process indicator. The UPR900 can display your preferred production process values. Optional secondary input for displaying the temperature or pressure of the polymer melt all in one place. The secondary input can be a strain gauge to measure the differential pressure in the process. The UPR900 contains two standard assigned alarms with the option to add a third alarm.
The ATC 990 series controller is a time-tested product that has received a new design and new functions. Compared to classic features such as pressure, temperature and alarm setting options, these new models are enhanced with the ability to monitor and record parameters to a USB drive, the undeniable advantage is the large display and interactive environment when setting up the controller.
The PPS1210 pressure calibration pump with heated pressure port enables fast and accurate inspection of melt pressure sensors directly in the laboratory or directly in the factory. Thanks to its compact dimensions, it is easily portable.
These cables are used to connect Dynisco pressure sensors to a 6-pin connector. The cables provide the electrical connection between the sensors and the indicators or controllers. The kits consist of a Bendix bayonet connector and a six-core shielded cable.
Separate Bendix connectors. In the variant of the 6-pin connector.
