The PT467 XL series of pressure transmitters are the ideal choice for applications with high accuracy and minimal mounting space. The PT467 XL models have an accuracy of ± 0.5% of range and an exposed capillary with a diameter of 1.5 mm, which allows bending in a radius of 1/16 inch. The sensors are supplied with a Dymax® membrane, which ensures an increase in wear resistance and thus a longer service life. Sensors marked XL have a protector (flexible capillary) up to the tip of the sensor and more durable membrane.
The sensors come with a 6-pin Bendix connector, which is used for easy connection. These models are also an ideal option for all polymer melt injection applications.

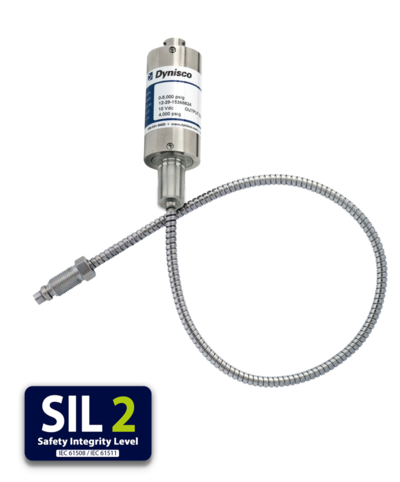

PT 467 XL - Melt pressure sensor in design with exposed capillary XL
Adjusting screws - used to adjust the zero and upper range of the sensor
Koncovka snímače a kompatibilní kabelový konektor
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.
If you need more information do not hesitate to contact us.
Innovative pressure sensor, perfectly designed for injection applications with minimal installation space. Thanks to its unique features and state-of-the-art technical parameters, this sensor can cope with demanding conditions in any environment. The manufacturer spared no expense in advanced technologies and sophisticated production processes, enabling the sensor to achieve very small dimensions and low weight without any compromise to its outstanding performance. The pressure sensor is an ideal solution for a wide range of injection applications, thanks to its exceptional resistance to vibrations, which it can withstand very well. A pleasant bonus is the easy and hassle-free installation of this sensor in spaces with limited dimensions.
| Pressure Range: | 0- 30 000 PSI |
|---|---|
| Maximum pressure: | 2 x full range or 35,000psi (whichever is less |
| Accuracy: | ±0.5% FSO |
| Repeatability: | ± 0.2% FSO |
| Resolution: | Infnite |
| Maximum Overload (without influencing operating data): |
2 x full range or 35,000psi (whichever is less |
| Material in Contact with Media: | Dymax® coated 15-5 PH SST |
| Mounting torque: | 500 inch - lbs. maximum |
| Weight: | 1.5 lbs |
| Diaphragm | |
|---|---|
| Max. Temperature: | 750°F (400°C) |
| Zero Shift Due to Temperature Change: | 25 psi/100°F maximum (45 psi/100°C) |
| Housing | |
| Max. Temperature: | 250°F (121°C) |
| Zero Shift Due to Temperature Change: | ±0.05% full scale/°F maximum (±0.10% full scale/°C) |
| Sensitivity Shift Due to Temperature Change: | ±0.02% full scale/°F maximum (±0.04% full scale/°C) |
| Configuration: | 4-arm Wheatstone bridge strain gage |
|---|---|
| Bridge resistance: | Input: 345 Ohms minimum; Output: 350 Ohms ±10% |
| Zero balance: | ±5% FSO |
| Full scale output: | 3.33 mv/V ±2% |
| Excitation: | 10 Vdc recommended, 12Vdc maximum |
| Internal shunt calibration (R-Cal): | 80% FSO ±0.5% |
| Insulation resistance: | 1000 megohms at 50 Vdc |
All dimensions are inches (mm) unless otherwise specified.
