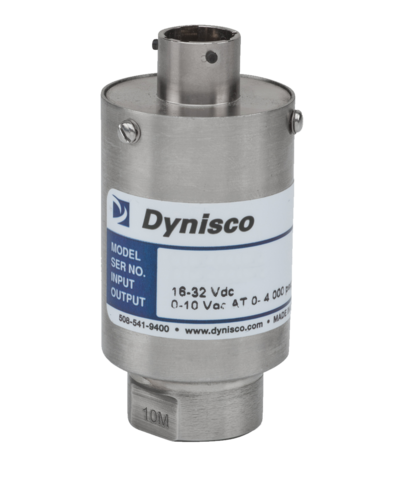

832 Model
Dynisco's 832 is a universal sensor for most applications. The sensor offers highly accurate pressure measurement in the range of 0 to 10,000 PSI. Excellent temperature compensation is ensured by high performance in operating environments up to 120 ° C. Its high accuracy and robust design make it ideal for a variety of applications, such as test stands for the automotive and automotive industries up to test equipment for polymer systems.
832 Pressure sensor
PERFORMANCE CHARACTERISTICS
|
Pressure range:
|
from 100 psi to 10,000 psi
|
|
|
Accuracy:
|
± 0.15% FSO, (Including linearity, repeatability and hysteresis)
|
|
|
Overload capacity:
|
1.5 x total sensor range
|
|
| Sensor diaphragm: | 17 - 4 PH, 15 - 5 PH stainless steel | |
| Sensor connection: | 1/8-27 NPT | |
| Pressure fuse: | 100 - 250 psi: 10 x nominal pressure 500 - 3000 psi: 5x nominal pressure 5,000 - 10,000 psi: 3 x nominal pressure |
|
| Sensor construction: | Sensor measuring head without process adapter construction material 303, 304 stainless steel |
TEMPERATURE CHARACTERISTICS
|
Max. sensor temperature:
|
-54°C to + 120°C
|
|
|
Compensated range:
|
-18°C to + 66°C
|
|
|
-------------------------------------------
|
------------------------------------------------------------------
|
|
| Zero shift (due to electronics temperature) |
±0.005% full scale/°C | |
| Range offset (due to electronics temperature) |
±0.005% full scale/°C |
ELECTRICAL CHARACTERISTICS
|
Power supply:
|
Recommended 10 Vdc Maximum 15 Vdc
|
|
|
Output signal:
|
3 mV/V ±0.25%
|
|
|
Zero setting:
|
±1% FSO
|
|
| Connector: | 6 PIN Bendix connector | |
| Insulation resistance: | 1000 megaohmy @ 50 Vdc | |
| Resistance calibration (R-Cal): | 80% of duty. range ± 0.50% of the total range |

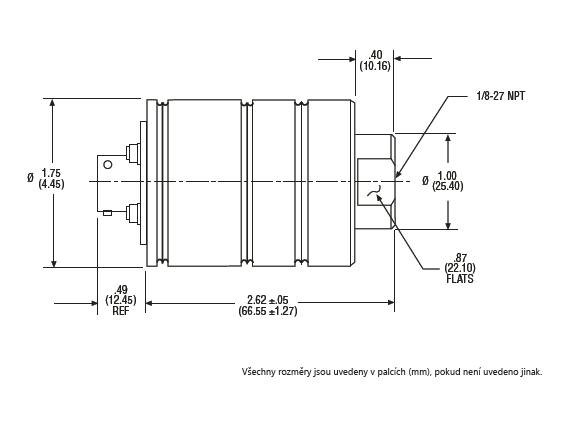

ROZMĚRY SNÍMAČE:
Certification & Approval
|
|
EU Declaration of Conformity |
|
|
ISO 9001:2015 |
|
|
EAC - The Eurasian Conformity mark |
|
|
RoHS Compliance Fact Sheet |
|
|
