Industrial series

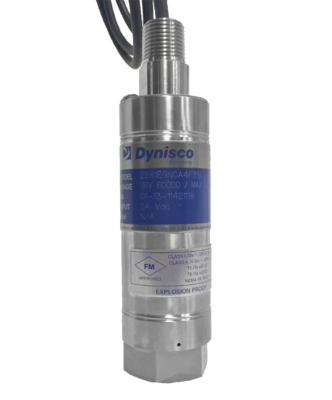

Dynisco SPX228X is a versatile rugged intelligent 4-20 mA industrial pressure sensor designed for use in
dangerous places (danger of explosion). Models are available in PSIG, PSIA and PSIS systems. Optional
pressure fittings and electrical connectors are available.

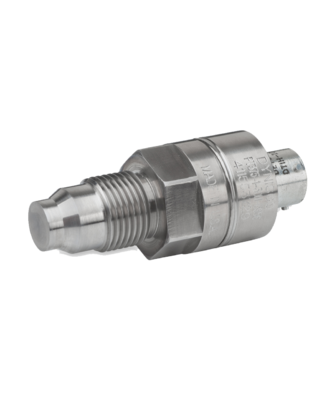

The Dynisco PT 375 pressure transmitter is designed for applications requiring a zero volume pressure port, fast response time and strict cleanliness standards. The high-pressure metal-to-metal seal offers reliable pressure measurement of sludges, viscous liquids and other media that can be homogenized.

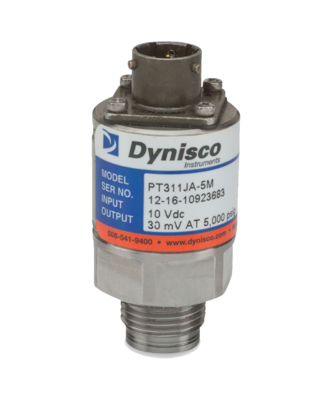

The Dynisco PT311JA Washable Pressure Sensor is designed for applications requiring a zero volume pressure port. The recessed diaphragm improves the frequency response. The PT311JA has a full 3 mV / V output signal and offers reliable and accurate pressure measurement of gases, viscous liquids.

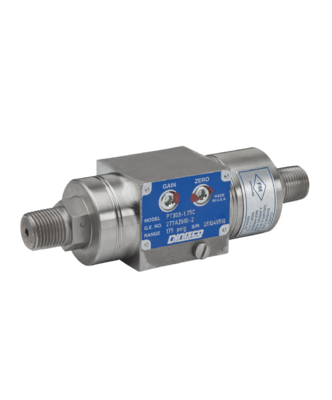

The Dynisco PT303 pressure transmitter is designed for all pressure applications in potentially explosive atmospheres. With high performance and a wide range of pressures, it offers trouble-free operation and flexibility to suit all your requirements.

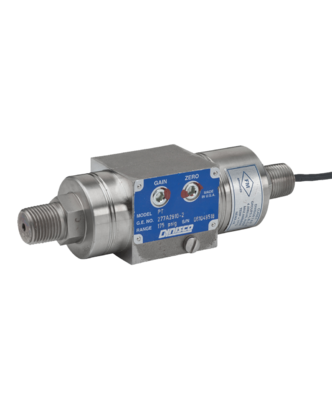

The PT199 pressure sensor is designed to measure pressure on turbine systems. Provides information on pressure or temperature in gas or fuel systems such as gas turbines to regulate gas or fuel flow.

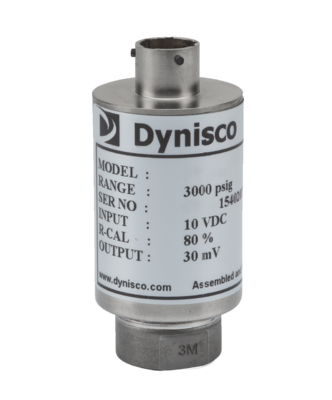

Dynisco PT139 and PT139A pressure sensors are designed to measure hydraulic pressure in extreme conditions for testing vehicles, stands and other hydraulic and pneumatic applications. These sensors withstand cyclic pressure and provide excellent performance during demanding industrial conditions.

Dynisco's 832 is a universal sensor for most applications. The sensor offers highly accurate pressure measurement in the range of 0 to 10,000 PSI. Excellent temperature compensation is ensured by high performance in operating environments up to 120 ° C. Its high accuracy and robust design make it ideal for a variety of applications, such as test stands for the automotive and automotive industries up to test equipment for polymer systems.

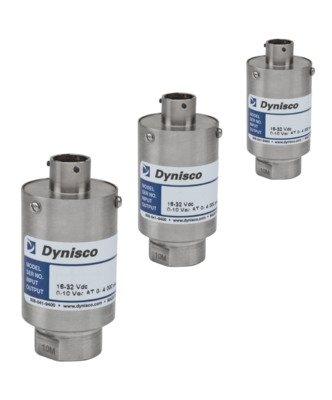

Models 831, 851 and 861 have universal signal converters with a compact design and pressure measurement accuracy of ± 0.25% of full power range. The optional configuration allows users to select a pressure range, mounting connection and output signal that meets the specific requirements of the application. The adhesive mV sensor ensures reliable operation in a wide range of industrial applications.

Models 830, 850 and 860 are sensors for general use, offering flexible design and accuracy of pressure measurement ± 0.50% of full range. The optional configuration allows users to specify pressure ranges, mounting connections and output signals that meet specific application requirements. The compact sensor ensures reliable operation in a wide range of industrial applications.
