PT311JA Pressure sensor

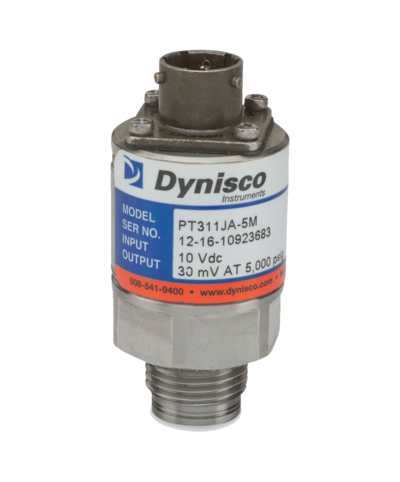

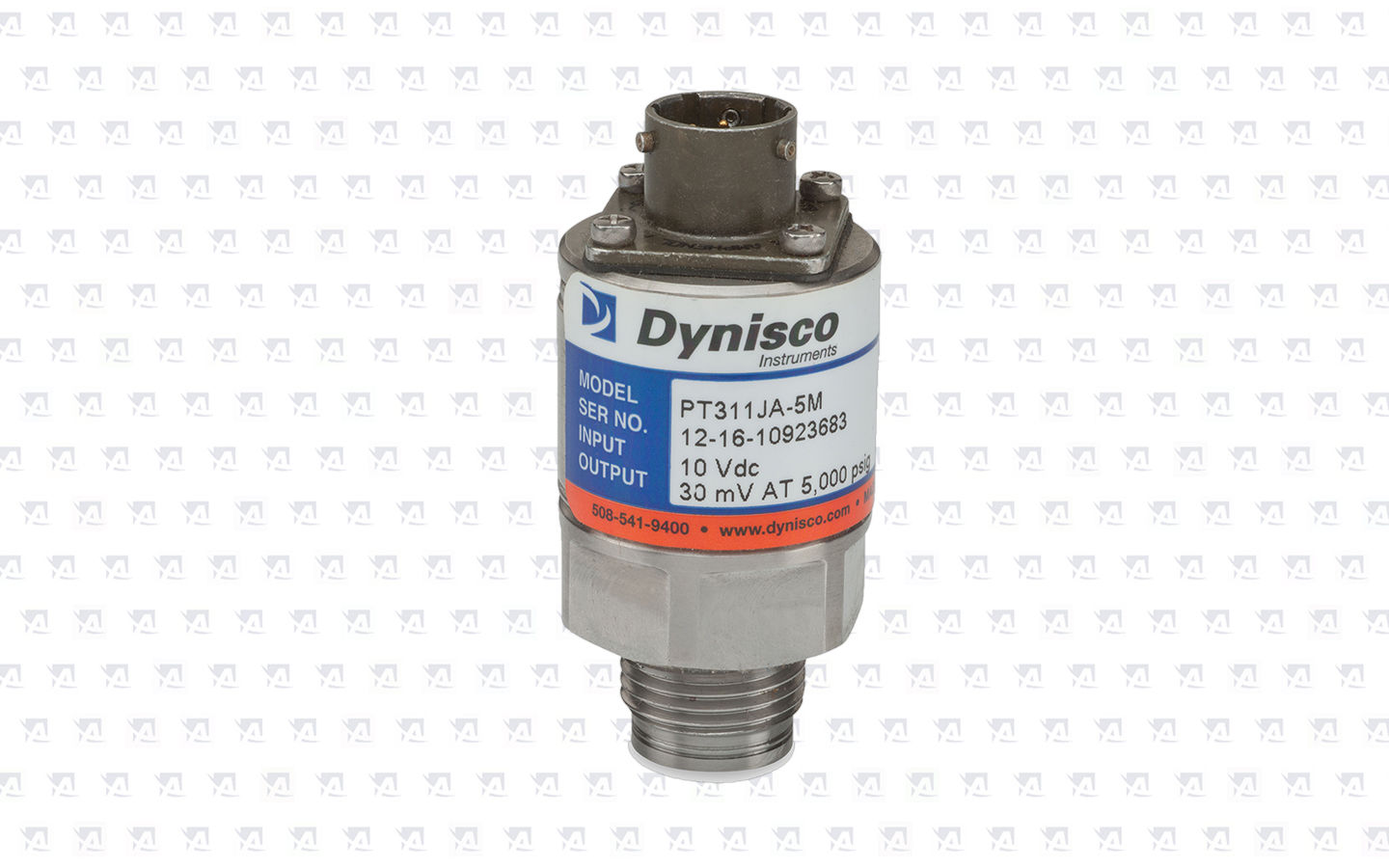

The Dynisco PT311JA Washable Pressure Sensor is designed for applications requiring a zero volume pressure port. The recessed diaphragm improves the frequency response. The PT311JA has a full 3 mV / V output signal and offers reliable and accurate pressure measurement of gases, viscous liquids.
PT311JA Pressure sensor
PERFORMANCE CHARACTERISTICS
|
Pressure range:
|
0 - 15, až 0 - 10,000 psi
|
|
|
Accuracy:
|
± 0.5% FSO, (Including linearity, repeatability and hysteresis)
|
|
|
Overload capacity:
|
2x total range of the sensor
|
|
| Sensor diaphragm: | 17 - 4 PH stainless steel | |
| Sensor connection: | 3/4-16 UNF-3A1.125 | |
| Mounting torque: | 25 Nm - 55 Nm | |
| Pressure fuse: | with fuse 6 x total sensor range. max 3000 bar | |
| Sensor construction: |
TEMPERATURE CHARACTERISTICS
|
Max. membrane temperature:
|
-54 ° C to + 120 ° C
|
|
|
Compensated range:
|
-18 ° C to + 66 ° C
|
|
|
-------------------------------------------
|
------------------------------------------------------------------
|
|
| Zero shift (due to temperature): | ± 0,018% plný rozsah / ° C | |
| Range shift (due to temperature): | ± 0,036% plný rozsah / ° C |
ELECTRICAL CHARACTERISTICS
|
Power supply:
|
10 Vdc recommended, maximum 12 Vdc
|
|
|
Output signal:
|
3 mV/V in full
|
|
|
Bridge resistance:
|
350 Ohm nominal
|
|
| Connector: | 6 Bendix PIN connector | |
| Insulation resistance: | 1000 megohms @ 50 Vdc | |
| Resistance calibration (R-Cal): | 80% of duty. range ± 1.0% of the total range |
ROZMĚRY SNÍMAČE:
Certification & Approval
 |
EU Declaration of Conformity |
 |
ISO 9001:2015 |
 |
EAC - The Eurasian Conformity mark |
 |
GOST Approval |
 |
RoHS Compliance Fact Sheet |
 |
Safety Integrity Level - SIL2 |
