Characteristics of sensors for injection molding applications
The pressure sensors of this series have very compact dimensions with a cap nut and a flexible capillary for easy installation. The sensors have very good accuracy with the possibility of optional configurations, such as different lengths of flexible capillary, membrane resistance or mercury-free filling.
Contact us, we will be happy to help you with the configuration.
PT 4656XL
PT 4656XL - Melt pressure sensors for injection molding applications
The PT4656XL models are ideal for measuring melt pressure in a nozzle or manifold for injection applications. The flexible capillary extends from its electronics housing to the installed tip in the machine melt, which guarantees unrivaled strength and extended sensor life.
1 "bending radius
Inconel 718 membrane
Cap nut for easy installation
Scanning accuracy ± 0.5%
Usable up to 400°C
Zero and range calibration
Optional output signal
PT 4655XL
PT 4655XL - Melt pressure sensors for injection molding applications
The PT4655XL models are ideal for measuring melt pressure in a nozzle or manifold for injection applications. The flexible capillary extends from its electronics housing to the installed tip in the machine melt, which guarantees unrivaled strength and extended sensor life.
1 "bending radius
Inconel 718 membrane
Cap nut for easy installation
Scanning accuracy ± 0.5%
Usable up to 400°C
Zero and range calibration
Optional output signal
PT 4654XL
The PT4654 models are ideal for measuring melt pressure in a nozzle or manifold for injection applications.
The flexible capillary extends from its electronics housing to the installed tip in the machine melt, which guarantees unrivaled strength and extended sensor life.
1 "bending radius
Inconel 718 membrane
Cap nut for easy installation
Scanning accuracy ± 0.5%
Usable up to 400°C
Zero and range calibration
4-20mA output signal

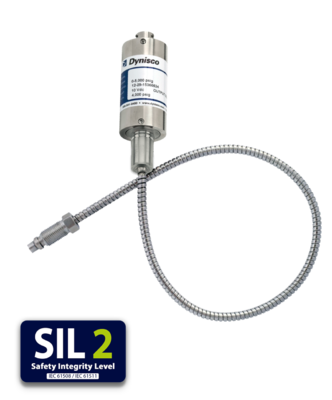

PT 467 XL
PT 467 XL- Sensor with flexible and exposed capillary
The PT 467XL series of pressure transmitters are the ideal choice for applications with high accuracy and minimal mounting space. The PT 467XL models have an accuracy of ± 0.5% of range and an exposed capillary with a diameter of 1.5 mm, which allows bending in a radius of 1/16 inch. The sensors are supplied with a Dymax® membrane, which ensures an increase in wear resistance and thus a longer service life. Sensors marked XL have a protector (flexible capillary) up to the tip of the sensor.
Output signal 3.33 mV/V
Accuracy ± 0.5% f.s.v.
Proven sensor design
Construction for hard-to-reach spaces
0-500 to 0-30,000 psi
Excellent thermal stability
R-Cal calibration 80%

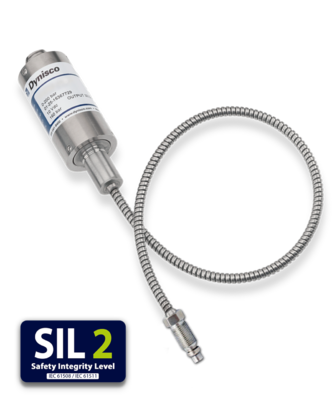

PT4676 (0-10Vdc)
Model PT4676 is a special variant of the pressure sensor with exposed capillary, which has an output signal of 4-20 mA. It is used wherever a conventional sensor with a fixed rod or flexible capillary cannot be installed due to lack of space.
Scanning accuracy ± 0.5%
Output signal 0 to 10 Vdc
Internal 80% calibration
Adjustable zero and sensor range
Exposed capillary
PT4675 (0-5 Vdc)
Model PT4675 is a special variant of the pressure sensor with exposed capillary, which has an output signal of 0-5Vdc. It is used wherever a conventional sensor with a fixed rod or flexible capillary cannot be installed due to lack of space.
Scanning accuracy ± 0.5%
Output signal 0 to 5 Vdc
Internal 80% calibration
Adjustable zero and sensor range
Exposed capillary
PT4674 (4-20 mA)
Model PT4674 is a special variant of the pressure sensor with exposed capillary, which has an output signal of 4-20 mA. It is used wherever a conventional sensor with a fixed rod or flexible capillary cannot be installed due to lack of space.
Scanning accuracy ± 0.5%
4-20mA output signal
Internal 80% calibration
Adjustable zero and sensor range
Exposed capillary
