Characteristics of the MDT Series
All sensors in this series can be configured. Optional accessories offer a more resistant membrane against abrasive, aggressive materials or without mercury filling and much more.
Contact us, we will be happy to help you with the configuration.
Pressure sensors with built-in amplifier (signal converter).
Depending on the conductor type, 2-wire mA, 3 or 4-conductor Vdc.
|
Output signal |
Sensor power supply |
Pressure range |
Units |
|
Signal Converter |
10 - 32 VDC |
0 - 2000 |
Bar |

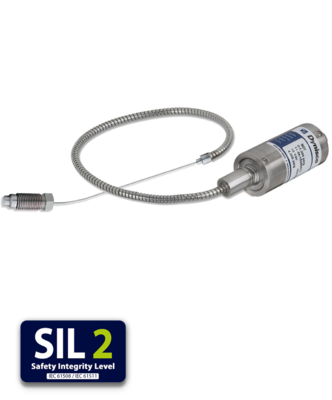

MDT 467
MDT 467 - Sensor with flexible and exposed capillary
Sensor with amplifier (signal converter) in version with flexible capillary and exposed membrane. Scanning accuracy better than 1.00% of range. Power supply via 10-36 Vdc. Membrane made of 15-5 PH material and coated with DyMAX®. The length of the fixed rod can be made and adjusted to the required size.
Output signal optional
Accuracy better than 1.00%
Power supply 10 -36 V dc
6 Pin connector
R-Cal calibration
MDT 435
MDT 435 - Sensor with flexible and exposed capillary
Sensor with an amplifier (signal converter) in a version with flexible capillary and exposed membrane. Scanning accuracy better than 0.50% of the range. Power supply via 10-36 Vdc. Membrane made of 15-5 PH material and coated with DyMAX®. The length of the fixed rod can be made and adjusted to the required size.
Output signal optional
Accuracy better than 0.50%
Power supply 10 -36 V dc
6 Pin connector
R-Cal calibration

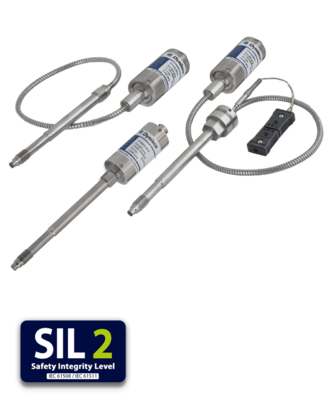

MDT 460 | 462 | TDT 463
MDT 460 - Sensor with rigid stem
MDT 462 - Sensor with flexible capillary.
TDT 463 - Sensor with flexible capillary and temperature sensor.
Sensor with integrated amplifier (signal converter). Scanning accuracy better than 1.00% of range. Power supply via 10-36 Vdc. Membrane made of 15-5 PH material and coated with DyMAX®. The length of the fixed rod can be made and adjusted to the required size.
Output signal according to configuration
Accuracy better than 1.00%
Power supply 10 -36 V dc
6 Pin connector
R-Cal calibration
MDT 420 | 422 | TDT 432
MDT 420 - Sensor with rigid stem
MDT 422 - Sensor with flexible capillary.
TDT 432 - Sensor with flexible capillary and temperature sensor.
Sensor with integrated amplifier (signal converter). Scanning accuracy better than 0.50% of range. Power supply via 10-36 Vdc. Membrane made of 15-5 PH material and coated with DyMAX®. The length of the fixed rod can be made and adjusted to the required size.
Output signal according to configuration
Accuracy better than 0.50%
Power supply 10 -36 V dc
6 Pin connector
R-Cal calibration
