Characteristics of the PT Series
All sensors in this series can be configured. Optional accessories offer a more resistant membrane against abrasive, aggressive materials or without mercury filling and much more.
Contact us, we will be happy to help you with the configuration.
TPT models are the same as PT, however are equipped with temperature sensors in the form of a thermocouple. J, K, T, E or PT 100 thermocouples are available.
|
Output signal |
Sensor power supply |
Pressure range |
Units |
|
Signal converter |
10 - 12 VDC |
0 - 30 000 |
PSI |
PT46X6 Series
PT 4606 - Sensor with rigid stem
PT 4626 - Sensor with rigid stem and flexible stem
TPT 4636 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor
The PT46X6 Series transmitter is a ±0.5% sensor ideal for general purpose melt pressure measurements requiring simple installation, repeatability and reliability. The PT46X6 transmitters provide the industry standard 0 - 10 Vdc amplified signal designed to work with DCS and PLCs, 1 - 11 Vdc outputs are also available.
Adjustability locally
Accuracy better than ±0.5%
Output signal 0 - 10 Vdc / 1 - 11 Vdc
Range 0-500 to 0-30,000 psi
Internal 80% R-CAL

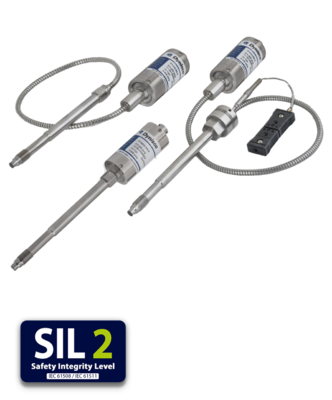

PT46X4 Series
PT 4604 - Sensor with rigid stem
PT 4624 - Sensor with rigid stem and flexible stem
TPT 4634 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor
The PT46X4 Series pressure sensor is a ±0.5% sensor ideal for general melt pressure measurements requiring simple installation, repeatability and reliability. The PT46x4 sensor provides the industry standard 4-20 mA amplified signal designed to work with DCS and PLCs.
Adjustability locally and remote
Accuracy better than ±0.5%
Output signal 0 - 5 Vdc / 1 - 6 Vdc
Range 0-500 to 0-30,000 psi
Internal 80% R-CAL
PT46X5 Series
PT 4605 - Sensor with rigid stem
PT 4625 - Sensor with rigid stem and flexible stem
TPT 4635 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor
The PT46X5 Series transmitter is a +/- 0.5% sensor ideal for general purpose melt pressure measurements requiring simple installation, repeatability and reliability. The PT46X5 transmitters provide the industry standard 0 - 5 Vdc amplified signal designed to work with DCS and PLCs, 1 - 6 Vdc outputs are also available.
Adjustability locally
Accuracy better than ±0.5%
Output signal 0 - 5 Vdc / 1 - 6 Vdc
Range 0-500 to 0-30,000 psi
Internal 80% R-CAL
EPR4 Push Rod Sensors
The EPR4 series are sensors with ± 0.5% accuracy ideal for food or medical applications requiring easy installation, repeatability and reliability. Technology Push Rod design is especially suitable for food or medical applications with the possibility of filled systems. EPR4 provide an industry standard in the form of an amplified 4-20 mA signal designed to work with DCS and PLC. The EPR4 model is available in various pressure variants.
Better than ± 0.5% accuracy
Fixed rod construction
Usable up to 400 ° C
Welded stainless steel construction
4-20 mA output signal
Internal calibration 80%
EPR3 Push Rod Sensors
The high-temperature EPR3 melt pressure sensor from Dynisco is offered as an alternative to the PT420 and PT460 series. The solid rod design is suitable for applications where the use of a filling medium may not be appropriate, such as applications for the food and pharmaceutical industries and the production of photographic films.
The EPR3 model is available in various pressure variants.
Better than ± 0.5% accuracy
Fixed rod construction
Usable up to 400 ° C
Welded stainless steel construction
Internal calibration 80%
PT375 Pressure Transducer
The Dynisco PT 375 pressure transmitter is designed for applications requiring a zero volume pressure port, fast response time and strict cleanliness standards. The high-pressure metal-to-metal seal offers reliable pressure measurement of sludges, viscous liquids and other media that can be homogenized.
3 mV / V in full
Accuracy ± 0.50%
Range 0-1000 to 0-30,000 PSI
Membrane material Iconel 718
Zero volume pressure port
Meets standards for cleaning
Metal-to-metal pressure seal
Internal calibration 80%
PT311JA Pressure sensor
The Dynisco PT311JA Washable Pressure Sensor is designed for applications requiring a zero volume pressure port. The recessed diaphragm improves the frequency response. The PT311JA has a full 3 mV / V output signal and offers reliable and accurate pressure measurement of gases, viscous liquids.
Front membrane
Accuracy ± 0.50%
Zero volume pressure port
15 to 10,000 psi
Output signal 3 mV/V
Internal calibration
PT303 Pressure sensor
The Dynisco PT303 pressure transmitter is designed for all pressure applications in potentially explosive atmospheres. With high performance and a wide range of pressures, it offers trouble-free operation and flexibility to suit all your requirements.
Accuracy ± 0.25%
Stainless steel construction
Powerful and durable construction
Ranges from 110 PSI to 750 PSI
PT199 Pressure sensor
The PT199 pressure sensor is designed to measure pressure on turbine systems. Provides information on pressure or temperature in gas or fuel systems such as gas turbines to regulate gas or fuel flow.
Accuracy ± 0.25%
Stainless steel construction
Adjustable zero and upper range
Excellent temperature compensation
Ranges 0-15 PSI to 0-15000 PSI
Advanced electronic design
Internal calibration
PT139 | PT139A
Dynisco PT139 and PT139A pressure sensors are designed to measure hydraulic pressure in extreme conditions for testing vehicles, stands and other hydraulic and pneumatic applications. These sensors withstand cyclic pressure and provide excellent performance during demanding industrial conditions.
Full power 3 mV/V
Accuracy better than ± 0.5%
The pressure range is from 0-15 PSI to 0-10,000 PSI
Pressure and vacuum support
Extended operating temperature range
Fully welded stainless steel construction
It resists strong shocks and vibrations
Internal 80% calibration
CE approval
PT 4656XL
PT 4656XL - Melt pressure sensors for injection molding applications
The PT4656XL models are ideal for measuring melt pressure in a nozzle or manifold for injection applications. The flexible capillary extends from its electronics housing to the installed tip in the machine melt, which guarantees unrivaled strength and extended sensor life.
1 "bending radius
Inconel 718 membrane
Cap nut for easy installation
Scanning accuracy ± 0.5%
Usable up to 400°C
Zero and range calibration
Optional output signal
PT 4655XL
PT 4655XL - Melt pressure sensors for injection molding applications
The PT4655XL models are ideal for measuring melt pressure in a nozzle or manifold for injection applications. The flexible capillary extends from its electronics housing to the installed tip in the machine melt, which guarantees unrivaled strength and extended sensor life.
1 "bending radius
Inconel 718 membrane
Cap nut for easy installation
Scanning accuracy ± 0.5%
Usable up to 400°C
Zero and range calibration
Optional output signal
