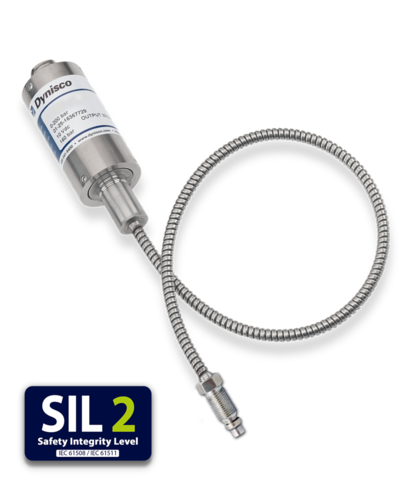

PT4676 (0-10Vdc)

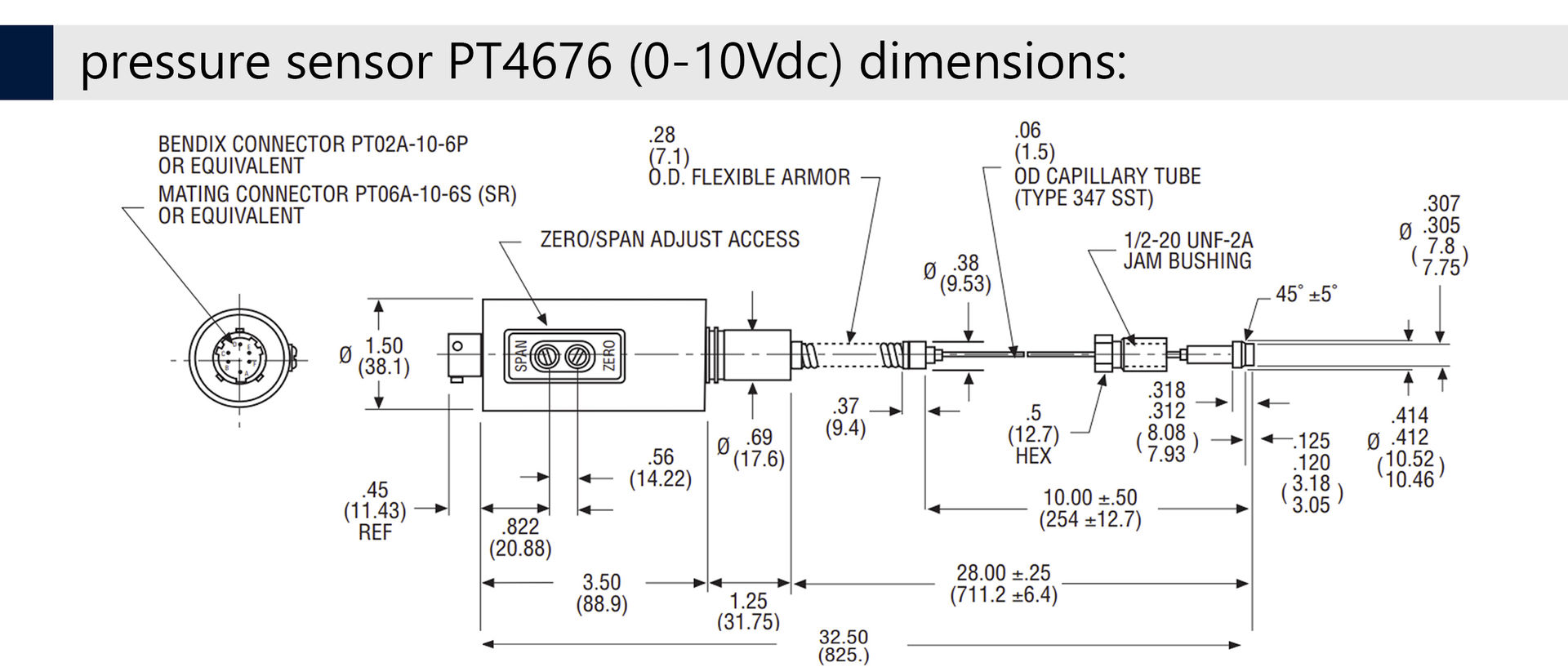

The Dynisco PT4676 models offer a capillary with an exposed diameter of 0.06 "to allow 1/16" radius bending for installation in confined spaces. Each model is equipped with a built-in amplifier for DCS output or a computer system with an interface of 0 to 5Vdc (PT4675), 1-6Vdc (PT4675B), 0-10Vdc (PT4676) or 1-11Vdc (PT4676B).

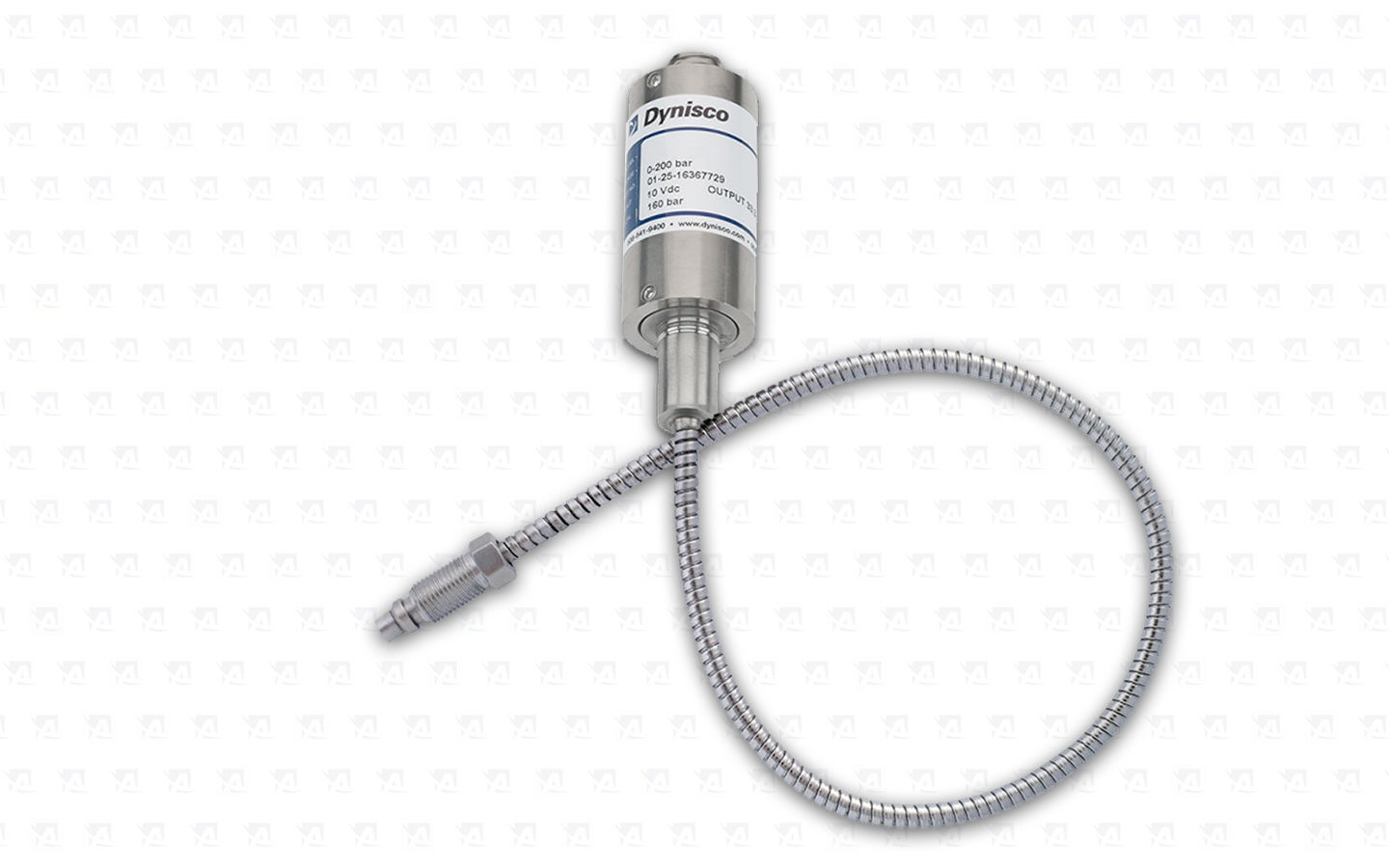

Melt pressure sensor in design with exposed capillary XL
Sensor terminal and compatible cable connector
Adjusting screws - used to adjust the zero and upper range of the sensor
Detail - Bayonet cable connector Amphenol 6-PIN
PERFORMANCE CHARACTERISTICS
|
Pressure range:
|
0 - 30 000 psi
|
|
|
Accuracy:
|
± 0.5% FSO, (full sensor range)
|
|
|
Overload capacity:
|
2 X FSO or 35,000 psi, lower value applies
|
|
| Repeatability: | ± 0,2% FSO | |
| Sensor diaphragm: | 15 - 5 PH, DyMax™ | |
| Sensor connection: | 1/2"-20 UNF-2A nebo M18 x 1.5 | |
| Mounting torque: | 500 inch/lbs. maximum | |
| Sensor construction: | Sensor with rigid stem Sensor with rigid stem and flexible stem Combined sensor with rigid stem, flexible stem and built-in temperature sensor |
TEMPERATURE CHARACTERISTICS
|
Max. membrane temperature:
|
400°C
|
|
|
Zero shift (due to temperature):
|
45 psi/100°C
|
|
|
-------------------------------------------
|
------------------------------------------------------------------
|
|
| Max. sensor body temperature: | 121°C | |
| Zero shift (due to temperature) | ±0.05% full scale/°F | |
| Displacement sensitivity (due to temperature) | ±0.02% full scale/°F |
ELECTRICAL CHARACTERISTICS
|
Power supply:
|
11 až 36 Vdc
|
|
|
Output signal:
|
0 až 10 Vdc
|
|
|
Zero setting:
|
±15%
|
|
| Connector: | 6 Bendix PIN connector | |
| Insulation resistance: | 1000 megohms @ 50 Vdc | |
| Resistance calibration (R-Cal): | 80% of duty. range ± 0.50% of the total range |
Certification & Approval
 |
EU Declaration of Conformity for Flush Mount Volt Output |
|
CE Approval PT46x5XL | PT46x6XL |
 |
ISO 9001:2015 |
 |
EAC - The Eurasian Conformity mark |
 |
GOST Approval |
 |
RoHS Compliance Fact Sheet |
 |
Safety Integrity Level - SIL2 |
