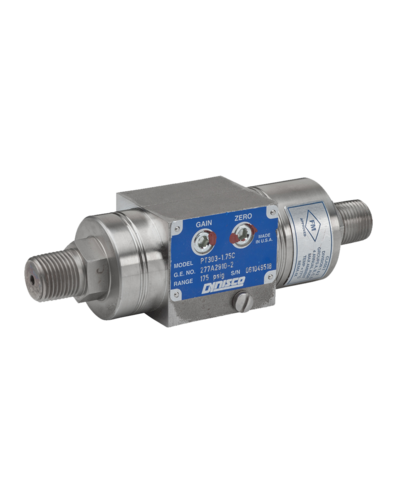

PT303 Pressure sensor
The Dynisco PT303 pressure transmitter is designed for all pressure applications in potentially explosive atmospheres. With high performance and a wide range of pressures, it offers trouble-free operation and flexibility to suit all your requirements.
PT303 Pressure sensor
PERFORMANCE CHARACTERISTICS
|
Pressure range:
|
0-110 psi to 0-700 psi
|
|
|
Accuracy:
|
± 0.25% FSO, (Including linearity, repeatability and hysteresis)
|
|
|
Overload capacity:
|
2x total range of the sensor
|
|
| Sensor diaphragm: | 15-5 SS | |
| Sensor connection: | 1/2-14 NPT, TYPICAL | |
| Mounting torque: | 25 Nm - 55 Nm |
TEMPERATURE CHARACTERISTICS
|
Max. membrane temperature:
|
350°C
|
|
|
Zero shift (due to temperature):
|
Depending on the range
|
|
|
-------------------------------------------
|
------------------------------------------------------------------
|
|
| Max. sensor body temperature: | 80°C | |
| Zero shift (due to temperature) | Depending on the range | |
| Displacement sensitivity (due to temperature) | Depending on the range |
ELECTRICAL CHARACTERISTICS
|
Power supply:
|
± 12 Vdc for explosion-proof units approved
FM 28 Vdc |
|
|
Output signal:
|
4-wire 0-5 Vdc
|
|
| FM approval: | Class 1, Group 1, Groups A, B, C & D | |
| Resistance calibration (R-Cal): | 80% of duty. range ± 0.50% of the total range |
ROZMĚRY SNÍMAČE:
Certification & Approval
 |
EU Declaration of Conformity |
 |
ISO 9001:2015 |
 |
EAC - The Eurasian Conformity mark |
 |
GOST Approval |
 |
RoHS Compliance Fact Sheet |
 |
Safety Integrity Level - SIL2 |
