PT199 Pressure sensor

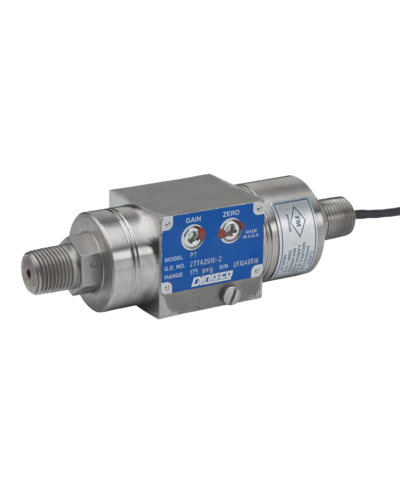

The PT199 pressure sensor is designed to measure pressure on turbine systems. Provides information on pressure or temperature in gas or fuel systems such as gas turbines to regulate gas or fuel flow.
PT199 Pressure sensor
PERFORMANCE CHARACTERISTICS
|
Pressure range:
|
0-15 psi to 0-1500 psi
|
|
|
Accuracy:
|
± 0.25% FSO, (Including linearity, repeatability and hysteresis)
|
|
|
Overload capacity:
|
2 x nominal pressure
|
|
| Sensor diaphragm: | 15-5 SS | |
| Sensor connection: | 1/2 "NPT male thread or 3/8" pipe | |
| Pressure fuse: | with fuse 6 x total sensor range. max 3000 bar | |
| Sensor construction: | Sensor measuring head without process adapter construction material 303, 304 stainless steel |
TEMPERATURE CHARACTERISTICS
|
Max. sensor temperature:
|
76.7°C maximum
|
|
|
Zero shift (due to temperature):
|
It depends on the range
|
|
|
-------------------------------------------
|
------------------------------------------------------------------
|
|
| Max. sensor body temperature: | 80°C | |
| Zero shift (due to temperature): | It depends on the range | |
| Displacement sensitivity (due to temperature): | It depends on the range |
ELECTRICAL CHARACTERISTICS
|
Power supply:
|
10 Vdc recommended, maximum 15 Vdc
± 12 Vdc for explosion-proof units approved
FM 28 Vdc max.
|
|
|
Output signal:
|
4-wire 0-5 Vdc
|
|
| Konektor: | 3/8 FLARED TUBE FITTING PER MS33656-6, 4 CONDUCTOR CABLE 40 in [102 cm ] MINIMUM LENGTH |
SENSOR DIMENSIONS:
Certification & Approval
 |
EU Declaration of Conformity |
 |
ISO 9001:2015 |
 |
EAC - The Eurasian Conformity mark |
 |
GOST Approval |
 |
RoHS Compliance Fact Sheet |
 |
Safety Integrity Level - SIL2 |
