Charakterystyka serii modeli ECHO
Seria ECHO to tania opcja dla aplikacji, które nie wymagają najwyższej dokładności i niezawodności.Te czujniki nie mogą być opcjonalnie konfigurowane jak inne modele, jest to alternatywa jakościowa z szybkim terminem dostawy.
Nowość również z opcją bezrtęciowego napięcia NAK.
Skontaktuj się z nami, chętnie pomożemy w konfiguracji.
Sygnał wyjściowy |
Zasilanie czujnika |
Zakres ciśnienia |
Jednostki |
3.33 mV/V |
10 - 12 Vdc |
100 - 700 |
Bar |
4 - 20 mA |
14 - 30 Vdc |
1.5M - 10M |
PSI |
0 - 5 Vdc |
16 - 30 Vdc |
10 - 70 |
MPa |
0 - 10 Vdc |
16 - 30 Vdc |
100 - 700 |
Kg/cm2 |

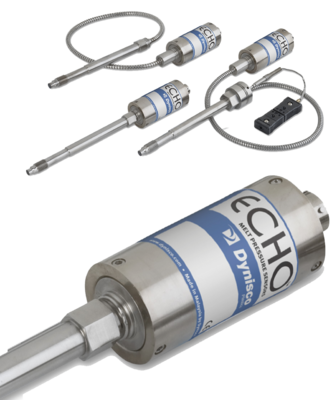

Seria ECHO
Trusted for Quality, Reliability and Accurate Performance at an Affordable Price
Dynisco's Echo™ Series of melt pressure sensors offer quality performance and value for plastic processing utilizing standard configurations and pressure ranges. Echo sensors are designed to meet customer requirements by providing a combination of economic value and performance for general extrusion applications while providing a ±0.2% repeatability when measuring process pressures. Use Echo Series sensors when the application requires a quality measurement for optimized control, but not the costs of all the extra features.
2 year warranty
Accuracy better than ±0.5%
TiAIN diaphragm coating is standard
mV/V, 0-10VDC, or mA outputs available
Integral temperature sensor option
Output configurations
0 - 1000 Bar
Alternative fill model available
![Označení CE dokládá, že výrobek byl posouzen před uvedením na trh Evropského hospodářského prostoru a splňuje legislativní požadavky EU tzn. že výrobce ověřil, že výrobek splňuje všechny příslušné základní požadavky. CE](http://www.azurr-tech.cz/pl/file/42b33a74f6de7f0491a15287a7f4f160/9152/CE.png)
![ISO9001 ISO9001](http://www.azurr-tech.cz/pl/file/b6eec219c92ff835875f53468a7f9e46/9719/ISO_9001.png)
![BSI BSI](http://www.azurr-tech.cz/pl/file/a4fb6397f3403843587bf8514310c69b/9721/BSI.png)
![RoHS2 RoHS2](http://www.azurr-tech.cz/pl/file/613181f1275e6dba2cb4907b94a98155/9722/RHOS.png)
![EAC EAC](http://www.azurr-tech.cz/pl/file/a0b565a6a80dcda9a2eaacbc70b61be9/9156/EAC.png)
Seria ECHO (NaK)
Mercury-free. Trusted for Quality, Reliability and Accurate Performance at an Affordable Price
Dynisco's Echo™ Series of melt pressure sensors offer quality performance and value for plastic processing utilizing standard configurations and pressure ranges. Echo sensors are designed to meet customer requirements by providing a combination of economic value and performance for general extrusion applications while providing a ±0.2% repeatability when measuring process pressures. Use Echo Series sensors when the application requires a quality measurement for optimized control, but not the costs of all the extra features.
2 year warranty
Accuracy better than ±0.5%
TiAIN diaphragm coating is standard
mV/V, 0-10VDC, or mA outputs available
Integral temperature sensor option
Output configurations
0 - 1000 Bar
Alternative fill model available
