PolyClean 12"čistící fluidní lázeň

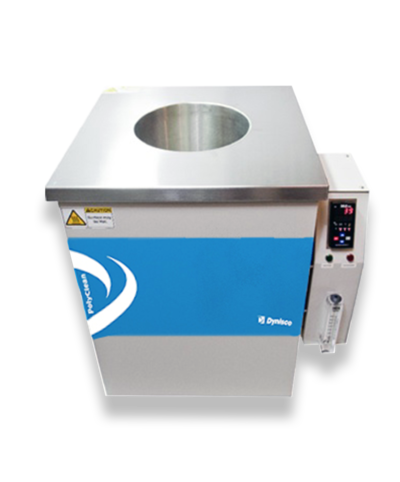

PolyClean 12"

Dynisco PolyClean 12L Fluidni čistící lázeň, která se používá k čištění všech nástrojů a všech dílů, které jsou v kontaktu s polymerní teveninou, jako jsou tlakové snímače, teplotní senzory, kapiláry nebo vytlačovací hlavy, jejich části nebo filtrační tkaniny polymerních filtrů. Fluidní čištění s vyššími teplotami poskytují rychlejší a efektivnější zpracování než vypalovací pece a díky ohřívanému médiu dochází k přesunu teploty i do nejmenších otvorů mnohem efektivněji a stabilněji než právě u vypalovacích pecí. Rychlé ohrání čištěných dílů je jednou z dalších předností tohoto systému. Fluidní lázně jsou i  bezpečnější a nevyžadují žádné jiné připojení než vzduch a elektřinu,  předměty vycházejí čisté a suché bez zbytků materiálu, který je třeba odstranit.
PolyClean používá regulátor teploty PID, který má čtyři ovládací zóny pro lepší tepelné výsledky.

Dynisco PolyClean 12L Fluidized Temperature Bathre

Features

■ Fully automate fluidizing air control

■ Independent over-temperature protection

■ Advanced PID temperature controller for optimumresults

■ Built rugged for years of reliable operation

■ Cleans most tooling in under 60 minutes

■ Removes all types of polymer, paint, adhesives andresins

■ Large working volume – up to 8.3” diameter by26" depth in parts basket depending on model

■ Up to 6500 watts of heat capacity for fast heat up

PolyClean Model 6L:

The PolyClean 6" Fluidized Temperature Bath can be used to clean small tooling from Laboratory Extruders ar lnjection molding machines, Capillary Rheometer and Melt Flow lndexer dies ar other small components used in polymer testing ar small part production. 5.3" X 6" Deep (134mm X 152mm)





PolyClean Model 12L:

The PolyClean 12" The PolyClean 12" Fluidized Temperature Bath can be used to clean tooling from all extrusion, injection molding, blow molding, and laboratory applications. lts 12" deep ba sket is desig ned to handle a large variety of components from laboratory as well as production environments. The 12L can also be configured with its sensor support tray allowing (2) pressure sensors to be cleaned at a single time. 1 O" X 12" deep (8.4" diameter when using parts basket) and (213mm X 305mm)



PolyClean Model 26L:

The PolyClean 26" The PolyClean 26" Fluidized Temperature Bath can be used to clean tooling from all extrusion, injection molding, blow molding, and laboratory applications. lts 26" deep basket is designed to handle a large variety of components from laboratory as well as production environments. 1 O" X 12" deep (8.4" diameter when using parts basket) and (213mm X 305mm)





Performance Characteristics
PolyClean Model 12L:



Temperature Range 50 to 605°C
Overall footprint, H x W x D (inches) 27 x 24 x 21
Temperature Stability at 500°C ±1.0 ºC
Calibrated Accuracy at 500º C ±5.0 ºC
Radial Temperature Uniformity at 500ºC 3.0
Heat Up time: Ambient to 600ºC 150 minutes
Power Consumption 4.5 Kw (240v, single phase)
Working diameter 9.5 inches
Working depth 12 inches
Working area in basket (diam x depth) 8.4 x 12
Maximum load capacity 25 lbs
Air pressure required 40 PSI
Maximum Air consumption 3.5 SCFM
Total Unit Weight 110 lbs
Operating Weight with Aluminum Oxide 210 lbs
Cleaning Capacity 25 lbs
Cool Downtime: Max to 200ºC 150 minutes



Material Burn Off Temp Guide



• Nylon 450°C/842° F
• Paint 475-575°C/887-1067° F
• Styrene 450°C/842° F
• Polyethylene 425-450°C/797-842° F
• Polypropylene 425-500°C/797-932° F
• Flouropolymers 525°C/975° F
• PTFE 500°C/932° F
• PVC 460-540°C/860-1004° F
• High density polythene 450°C/842° F
• PEEK 500-525°C/932-977° F
• Silicone Rubber 535°C/995° F
• Polyesters 450°C/842°
• Ethylene methacytic 450-480°C/842-8960F
• Polyurethane 440-450°C/824-842° F
• Polystyrene 450° C/842° F
• Rubber debonding 350°C/662° F
• Polycarbonate 400-425°C/752-797 ° F
• Organic matter oil/grease 300-5000C/572-932 ° F
• Crosslink PE 400°C/750° F

PolyClean 6"

Unlike other Fluidized baths, the Dynisco PolyClean 6L Fluidized bath has a smaller footprint, include advanced features and are safer than salt baths with thermal response that is 2 to 3 times faster than ovens. Unique bath cover and lid design that minimizes media loss. Media is either blocked by the lid or collected on the cover flange which then drops back into the system. The included lid with handle is lowered into the Fluidized Bath for cleaning parts, heattreating or calibrating temperature sensors as shown.
