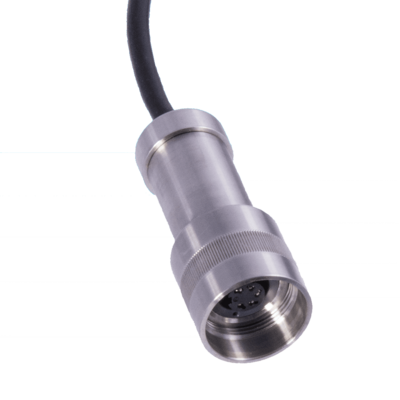

Connector and wiring to removable sensors
If you need to replace the removable level cable of the waste water transmitter, you don't have to wait.
Failure is not an option. With Viatran's new RapidShip program, the Model 596 Detachable Cable is available in just 1-2 days and in some cases can be shipped overnight. RapidShip allows you to reduce inventory costs, minimize supply chain management efforts, eradicate unexpected delays and/or align situations resulting from demand peaks.
Viatran stocks the six most popular sizes of polyurethane cable in lengths up to 150 feet (46 meters). Please specify the required cable length when ordering.
VÝKONNOSTNÍ CHARAKTERISTIKY
Tlakové rozsahy: | 0-32" W.C. to 0-335 Feet W.C. or equivalent in Meters or PSI. | |
Přesnost [Kombinovaná nelinearita (BFSL), hystereze a opakovatelnost]: | ≤ +/-0.1% FSO [Combined Non-Linearity (BFSL), Hysteresis & Repeatability |
|
Kompenzovaný teplotní rozsah | -4° to 176° F (-20 to 80° C) | |
Rozsah provozních teplot | -13° to 185° F (-25 to 85° C) Note: Medium must not freeze near sensor | |
Teplota skladování: | -13° to 185° F (-25 to 85° C) | |
Dlouhodobá stabilita (% FSO) | ≤ +/- 0.1% FSO / year Note: At reference condition | |
Tepelný účinek na nulu | ≤ +/- 0.16% FSO per 100° F | |
Tepelný účinek na rozpětí | ≤ +/- 0.16% FSO per 100° F |
ELEKTRICKÉ CHARAKTERISTIKY
Výstupní signál
|
4-20 mA
|
|
Napájecí napětí
|
12-36 Vdc
|
|
Regulace napájení
|
< +/- .005% FSO per volt
|
|
Ochrana obvodů | Reverse polarity protected, CE marked | |
RFI / EMI | CE EMC compliant as per IEC EN 61326 | |
Ochrana před přepětím | Withstand 1000 volt spike per EN 61000 | |
Doba odezvy | < 380 mSec |
KONSTRUKČNÍ MATERIÁLY
Materiál pouzdra:
|
316L Stainless Steel
|
|
Membrána snímače:
|
Ceramic Al2O3 96%
|
|
Těsnění O-kroužku
|
FKM (Standard) or EPDM (Optional)
|
|
Ochranná čepice: | POM (Polyoxymethylene) |
MECHANICKÉ CHARAKTERISTIKY
Tlakové připojení:
|
Removable Protective POM cap
|
|
Krytí:
|
IP 68
|
|
Přetlak limit:
|
5x Minimum (≥ 167 Ft. range = 3.5x)
|
|
Hmotnost: | 1.4 lbs. (without cable) |
OPTIONS
EA
|
Special Calibration Run
|
|
NSR
|
Non-Standard Range
|
|
PW
|
Calibrate Transmitter with Meter / Display
|
|
ZB | 1/2" NPT Conduit Adapter |
