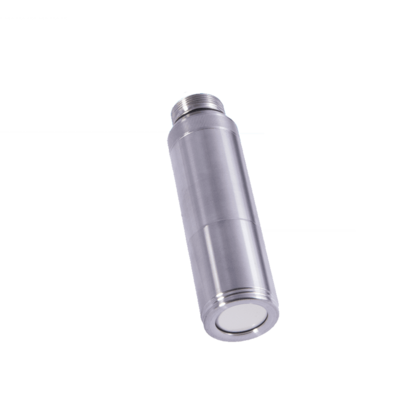

Model 596 Interchangeable sensor head
When you need to replace a waste water level transmitter, you don't have time to wait. Failure is not an option. With Viatran's new RapidShip program, the Model 596 Detachable Sensor Head is available in as little as 1-2 days and can be shipped overnight in some cases.
RapidShip allows you to reduce inventory costs, minimize supply chain management efforts, eliminate unexpected delays and/or adjust situations due to peak demand.
A removable level transducer allows quick switching of the sensor head without having to remove the entire cable. The Model 596 is a robust transmitter that is ideal for higher viscosity media and is resistant to a wide range of materials. Its semi-flush ceramic sensing face resists clogging and is easy to clean, allowing cage-free use.
This model can operate in pressure ranges from 0 to 32 inches. at 0 to 335 ft. (or equivalent in meters or PSI) and an operating temperature range of -25° to 85° C. Viatran also stocks six of the most popular polyurethane cable sizes in lengths up to 150 feet (46 meters). When ordering, specify the required range (depth) and cable length.
VÝKONNOSTNÍ CHARAKTERISTIKY
Rozsah tlaků v plném rozsahu: | 0-32" W.C. to 0-335 Feet W.C. or equivalent in Meters or PSI | |
Přesnost: | ≤ +/- 0,1% FSO [Kombinovaná nelinearita (BFSL), hystereze a opakovatelnost | |
Dlouhodobá stability: | ≤ +/- 0.1% FSO / year Note: At reference conditions | |
Kompenzovaný teplotní rozsah: | -4° to 176° F (-20 to 80° C) | |
Provozní teplota: | -13° to 185° F (-25 to 85° C) Note: Medium must not freeze near sensor | |
Tepelný účinek na nulu: | ≤ +/- 0.16% FSO per 100° F | |
Tepelný účinek na rozpětí: | ≤ +/- 0.16% FSO per 100° F | |
Limity teploty skladování: | -13° to 185° F (-25 to 85° C) |
ELEKTRICKÉ CHARAKTERISTIKY
Napájecí napětí:
|
12-36 Vdc
|
|
Výstupní signál
|
4-20 mA
|
|
Regulace napájení | < +/- .005% FSO per volt | |
Ochrana obvodů | Chráněno proti přepólování, označení CE | |
Ochrana před napětím | Odolejte špičce 1 000 V podle EN 61000 | |
Doba odezvy | < 380 mSec | |
RFI/EMI | CE EMC kompatibilní podle IEC EN 61326 |
KONSTRUKČNÍ MATERIÁLY
Materiál pouzdra:
|
316L nerezová ocel
|
|
Membrána snímače:
|
Nerezová ocel 316L a Inconel X750
|
|
Těsnění O-kroužku
|
NEMA/Type 4X (1P68)
|
|
Odnímatelné ochranné víčko: | POM (Polyoxymethylene) |
MECHANICKÉ CHARAKTERISTIKY
Tlakové připojení:
|
Removable Protective POM cap
|
|
Krytí:
|
IP 68
|
|
Overpressure Limit
|
5x Minimum (≥ 167 Ft. range = 3.5x)
|
|
Hmotnost: | 1.4 lbs. (without cable) |
OPTIONS
EA
|
Special Calibration Run
|
|
NSR
|
Non-Standard Range
|
|
PW
|
Calibrate Transmitter with Meter / Display
|
|
ZB | 1/2" NPT Conduit Adapter |
