Cabling to temperature sensors

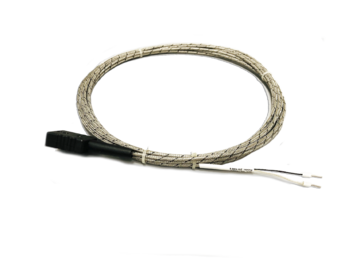

Standard temperature cabling to temperature sensors with J-type connector.

J-Type connector

Two-wire cable


Eight-core, shielded cable with threaded Bendix 8pin connector

These cables are used to connect Dynisco pressure sensors to a 6-pin connector. The cables provide the electrical connection between the sensors and the indicators or controllers. The kits consist of a Bendix bayonet connector and a six-core shielded cable.

Six-core cable

Shielded cable

Bayonet connector

6-Pin

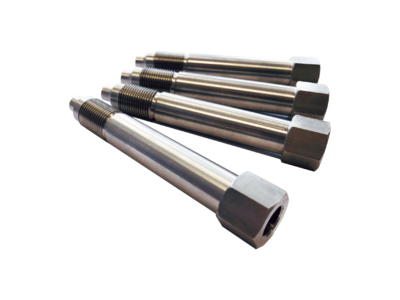

Adapters for pressure sensors

Adapter for Dynisco pressure sensors
Reduction for sensors from 1 / 2-20 UNF thread to M10x1.5 or M18x1.5 thread Another variant is the reduction from m10x1.5 to M18x, 15. These adapters are the fastest and most efficient way to turn an available (warehouse) sensor into a full-fledged replacement for a crisis situation.


High quality workmanship

Adapter options

1 / 2-20 UNF -> M10x1.5

M10x1.5 -> M18x1.5


Adapters for pressure sensors

Adapter for Dynisco pressure sensors
Reduction for sensors from 1 / 2-20 UNF thread to M10x1.5 or M18x1.5 thread Another variant is the reduction from m10x1.5 to M18x, 15. These adapters are the fastest and most efficient way to turn an available (stock) sensor into a full-fledged replacement for a crisis situation.


High quality workmanship

Adapter options

1/2-20 UNF -> M10x1.5

M10x1.5 -> M18x1.5


Guardian function

Machinery Directive standard EN ISO 13849-1 is a European safety regulation. This is a generic standard defining the requirements for the safety-related parts of control systems. Guardian meets the directive without the expense and complication of redundant sensors and external relay modules. Guardian also complies with NFPA 79 clauses A.9.2, A.9.4.1, A.9.4.3.2 as a way of evaluating safety-related aspects of control functions.

Integrated safety relay

Third party analysis (exida ™)

Meets performance level "c"

Machinery Directive (category 3)

Machinery Directive 2006 /42 / EC

SIL1 or 2 (output dependent)

NFPA provisions 79 A.9.2, A.9.4.1, A.9.4.3.2

Directive EM-C 2004/108 / EC

Available on all known Dynisco pressure sensors

Bendix 8-PIN connectors

Separate Bendix connectors. In the 8-pin connector variant.

8-pin connector

Threaded connection

Bendix 6-PIN connectors

Separate Bendix connectors. In the variant of the 6-pin connector.

6-pin connector

Bayonet connection

Six-core, shielded cable with threaded Bendix 6pin connector

These cables are used to connect Dynisco pressure sensors to a 6-pin connector. The cables provide the electrical connection between the sensors and the indicators or controllers. The kits consist of a Bendix bayonet connector and a six-core shielded cable.

Six-core cable

Shielded cable

Bayonet connector

6-Pin

Transducer Mounting Hole Machining Tool Kit

The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.

Thread repair

Prevents damage to the sensor

Maintenance prevention

Leak removal

Transducer Mounting Hole Cleaning Tool Kit

Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.


Thread cleaning

Prevents damage to the sensor

Maintenance prevention

Melt removal


VPC 999084 Transducer Simulator

Model VPC-999084 simplifies the on-line troubleshooting of Dynisco strain gauge transducers, signal conditioners, and indicators. Its out-put can be varied in 20% steps or via a variable trim pot.


Optional sensor output sensitivity

Standard 6-pin Bendix connector

5 stage linear output 0 - 100%

Identifies defective components in the measuring loop

Simulates a number of sensors

Replacements for most pressure transducers

Indicator linearity check

Diagnostic tool

Adapters Button Seal

Process adapters are an accessory to all pressure and temperature sensors, allowing a 1 / 2-20 UNF (Unified National Fine nt) melt pressure sensor to be installed in the mounting port using a flange. The use of the flange is compatible with all sensors of the given dimensions and all manufacturers. Each adapter and sealing elements are made to order depending on the dimensions and mounting port. Flange extensions are available as one-piece constructions or detachable threaded connections. The design of the flange is specific to the one used and depends on the dimensions, thickness and diameter of the mounting screws.

Adaptation of any 1 / 2-20 UNF pressure sensor to the process flange adapter
Can be used with all Dynisco sensors

The flanges can be supplied in one piece, with a thread or a combination of thread and weld
Custom production
