DETACHABLE LEVEL TRANSMITTERS
Seria DLTTM umożliwia szybką wymianę czujnika bez usuwania całego zainstalowanego ciągu kablowego. Nie są wymagane żadne specjalne narzędzia. Po prostu pociągnij kabel i odłącz głowicę czujnika, aby wymienić. Dzięki temu rozwiązywanie problemów, naprawa lub wymiana są szybkie i proste.
Model 593 (pokazany powyżej) to odłączany przetwornik poziomu zaprojektowany specjalnie, aby sprostać wymagającym wymaganiom pomiaru poziomu cieczy. Wytrzymała membrana ceramiczna, pokazana ze zdjętą osłoną ochronną, umożliwia użytkowanie bez klatki ochronnej. Jeśli wolisz używać klatki, zapytaj o naszą opcję SharkcageTM dla modeli 593, 595 i 596.
Wszystkie czujniki z tej serii można skonfigurować zgodnie z własnymi potrzebami. Skontaktuj się z nami, chętnie Ci pomożemy.Gama do wydajnych zastosowań została zaprojektowana z myślą o najbardziej wymagających zastosowaniach, takich jak platformy wiertnicze, górnictwo itp.
Model 590 Detachable level sensor
0-40" to 835' WC, PUR Standard cable, stainless steel sensor and housing
The Model 590 removable level sensor allows quick replacement of the sensor without interfering with the wiring. The sensor can be simply unscrewed and replaced with another compatible one or moved to a more suitable location. PVC, TPE and FEP cables are also available. The sensor head and/or cable can be ordered separately. A complete range of accessories is available for this model. The 590/591 models have the deepest level rating at 835'.
Separable
Entire stainless steel construction
IP-68 Rated
Low pressure applications
Model 591 Detachable level sensor
0-40" to 835' WC, high accuracy, standard PUR cable, stainless steel sensor and housing
The detachable level sensor of the 591 is similar to the 590 but provides a more accurate solution. The removable design allows for quick replacement of the sensor without interfering with the wiring. The sensor can be simply unscrewed and replaced with another compatible one or moved to a more suitable location. PVC, TPE and FEP cables are also available. The sensor head and/or cable can be ordered separately. A complete range of accessories is available for this model. The 590/591 models have the deepest level rating at 835'.
Oddělitelný
Celá konstrukce z nerezové oceli
Vysoká přesnost
V souladu s RoHS
IP-68 Jmenovité
Nízkotlaké aplikace
Model 592 Detachable level sensor
0-40" to 335' WC, PUR cable standard, PP-HT housing, stainless steel sensor
Model 592 allows for quick replacement of the sensor without interfering with the wiring. The sensor can be simply unscrewed and replaced with another compatible one or moved to a more suitable location. PVC, TPE and FEP cables are also available. The sensor head and/or cable can be ordered separately. A complete range of accessories is available for this model.
Separable
RoHS Compliant
IP-68 Rated
Low pressure applications
Polypropylene - high temperature body
Model 593 Detachable level sensor
0-16" over 335' WC, PUR cable standard, stainless steel housing, ceramic sensor, lowest level
Model 593 allows for quick replacement of the sensor without interfering with the wiring. The sensor can be simply unscrewed and replaced with another compatible one or moved to a more suitable location. PVC, TPE and FEP cables are also available. The sensor head and/or cable can be ordered separately. A complete range of accessories is available for this model.
Separable
RoHS Compliant
IP-68 Rated
Low pressure applications
Model 595 Detachable level sensor
0-16" over 335' WC, PUR cable standard, PVC housing, ceramic sensor, lowest level
The 595 model allows quick replacement of the sensor without interfering with the wiring. The sensor can be simply unscrewed and replaced with another compatible one or moved to a more suitable location. PVC, TPE and FEP cables are also available. The sensor head and/or cable can be ordered separately. A complete range of accessories is available for this model.
IP-68
Oddělitelný
V souladu s RoHS
Nízkotlaké aplikace
Model 596 Detachable level sensor
0-32" to 0-335' WC, PUR Cable Standard, Stainless Steel Housing, Ceramic Sensor, RapidShip
The Viatran Model 596 DLT is a submersible level transmitter specifically designed to meet the demanding requirements of liquid measurement. Being able to disconnect the sensor can be a huge time saver when or if ever needed.
Ranges can be set from 0 to 32 inches W.C. to 0-335 ft. W.C. or the equivalent in meters or PSI from Viatran at the time of manufacture This capability allows Viatran to quickly deliver the transmitter within a day or two. There is no need for you to have excess stock.
Separable
IP-68 Rated
RapidShip - 2 day turnaround
RoHS Compliant

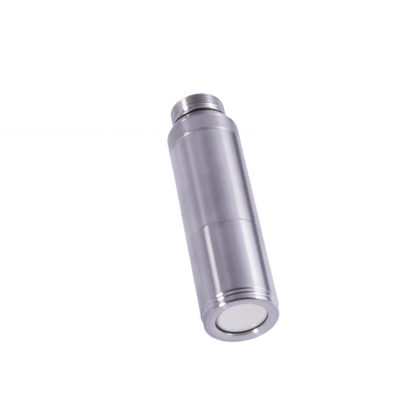

Model 596 Interchangeable sensor head
0-32" to 0-335' WC, Stainless Steel Housing, Ceramic Sensor, RapidShip
The Viatran Model 596 DLT transducer head is available in a variety of pressure ranges adjustable from 0 to 32 in. W.C. to 0-335 ft. W.C. or the equivalent in meters or PSI. RapidShip is a service from Viatran that allows you to quickly send a spare part within one or two days. There is no need for you to have excess stock in your warehouse.
Separable
IP-68 Rated
RapidShip - 2 day turnaround
RoHS Compliant

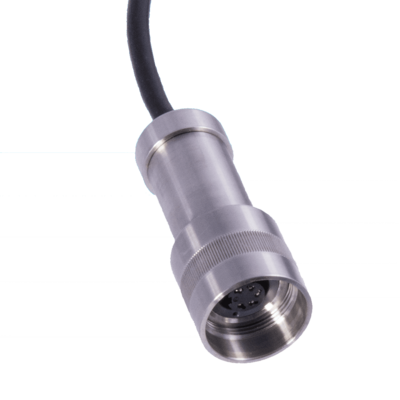

Connector and wiring to removable sensors
Stainless steel connector, RapidShip
Viatran stocks the six most popular sizes of polyurethane cable in lengths up to 150 feet (46 meters). This capability allows Viatran to quickly ship a replacement cable within a day or two. There is no need for you to have excess stock.
Separable
IP-68 Rated
RapidShip - 2 day turnaround
