Pressure sensors

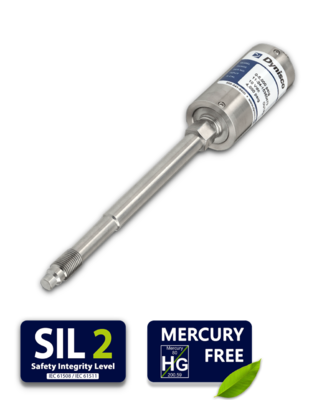

 PT415D - Washable sensor with rigid stem and NaK filling.


The PT415D pressure transmitter with accuracy of better than ±0.5% is the ideal choice for food and medical applications that require high accuracy and easy maintenance. It is a washable sensor with insulated wiring type 1/2-14 NPT or an optional 6-pin hermetically insulated bendix connector. PT 415D contains a high temperature fill (NaK, sodium potassium) and an Inconel membrane. Meets FDA and USDA hygiene regulations and requirements.

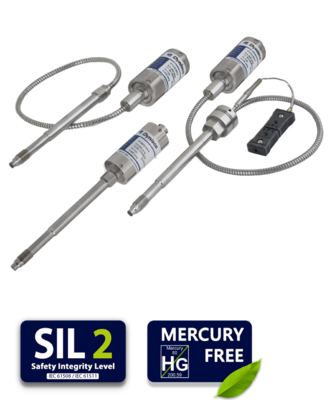

PT410 - Sensor with rigid stem
PT412 - Sensor with rigid stem and flexible stem
TPT412 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor

The PT 41x series is a sensor with ±0.25% accuracy, which is ideal for food or medical applications. Its alternative filling (NaK), which replaces mercury.

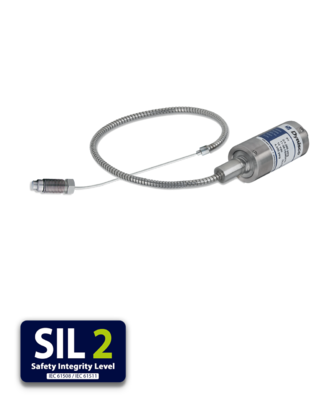

PT467E - Sensor with flexible and exposed capillary

The PT467E models have been designed for applications where installation space is extremely limited. The exposed part of the capillary allows a bend with a small radius of 3 mm. The specially developed design of the sensor tip facilitates the installation of the sensor in very cramped and confined spaces, where it is not possible to install a standard sensor with a fixed rod or flexible capillary.

PT435A - Sensor with flexible and exposed capillary

The PT435A series model have been designed for applications where installation space is extremely limited. The exposed part of the capillary allows a bend with a small radius of 3 mm. The specially developed design of the sensor tip facilitates the installation of the sensor in very cramped and confined spaces, where it is not possible to install a standard sensor with a fixed rod or flexible capillary.

PT460E - Sensor with rigid stem
PT462E - Sensor with rigid stem and flexible stem
TPT463E - Combined sensor with rigid stem, flexible stem and built-in temperature sensor

Sensors with high accuracy ± 1.0% in optional design. Power supply via 10-12 V dc. Membrane made of 15-5 PH material and coated with DyMAX layer. The length of the fixed rod can be made and adjusted to the required size. 6-pin bayonet connector.

PT420A - Sensor with rigid stem
PT422A - Sensor with rigid stem and flexible stem
TPT432A - Combined sensor with rigid stem, flexible stem and built-in temperature sensor

PT420A Series transducer is a ±0.25% sensor ideal for melt pressure applications requiring high accuracy, simple installation, repeatability and reliability.

MDA 410 - Sensor with rigid stem
MDA 412 - Sensor with rigid stem and flexible stem
TDA  412 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor

Mercury-free sensors with 10-12 Vdc power supply. They meet the most stringent conditions controlled by the FDA - the Food and Drug Administration and the USDA. The membrane is made of Inconel 718. The length of the rigid rod and flexible capillary can be made and adjusted to the required size.

MDA467 - Sensor with flexible and exposed capillary


The sensors of this MDA467 series have a flexible capillary with an exposed mounting tip, which is used in an area where it is not possible to install a standard sensor with a flexible capillary and a rigid stem. Individual models have different accuracy. Model 467 has an accuracy of 1.00% of the pressure range. Power supply with 10-12 V DC and membrane made of 15-5 PH material and coated with DyMAX layer. The length of the flexible capillary can be optionally configured.

MDA435 - Sensor with flexible and exposed capillary

The sensors of this series MDA435 have a flexible capillary with an exposed mounting tip, which is used in an area where it is not possible to install a standard sensor with a flexible capillary and a rigid stem. Individual models have different accuracy. Model 435 has an accuracy of 0.50% of the pressure range. Power supply with 10-12 V DC and membrane made of 15-5 PH material and coated with DyMAX layer. The length of the flexible capillary can be optionally configured.

Trusted for Quality, Reliability and Accurate Performance at an Affordable Price

Dynisco's Echo™ Series of melt pressure sensors offer quality performance and value for plastic processing utilizing standard configurations and pressure ranges. Echo sensors are designed to meet customer requirements by providing a combination of economic value and performance for general extrusion applications while providing a ±0.2% repeatability when measuring process pressures. Use Echo Series sensors when the application requires a quality measurement for optimized control, but not the costs of all the extra features.

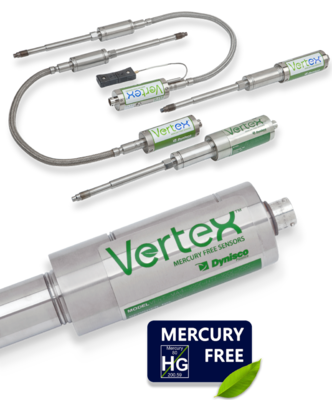

Vertex is more accurate than any other mercury-filled sensor and is ideal for industrial applications that require low pressure.

The pressure range for Vertex is now available from 250 - 10,000 PSI. Not only is this an overall improvement to one’s process, but it helps with customers that are focused on sustainability and zero-waste.

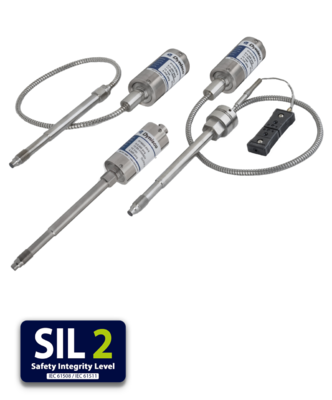

MDA 460 - Sensor with rigid stem
MDA 462 - Sensor with rigid stem and flexible stem
TDA  463 - Combined sensor with rigid stem, flexible stem and built-in temperature sensor

The sensors of this 46X series are specific with a 6-pin bayonet connector and an accuracy of ±0.5% of the pressure range. Power supply via 10-12 V DC. Membrane made of 15-5 PH material and coated with the DyMAX layer. The length of the rigid stem and the flexible capillary can be optionally configured.
