Bendix 8-PIN connectors
Separate Bendix connectors. In the 8-pin connector variant.

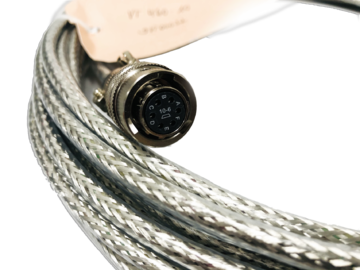

These cables are used to connect Dynisco pressure sensors to a 6-pin connector. The cables provide the electrical connection between the sensors and the indicators or controllers. The kits consist of a Bendix bayonet connector and a six-core shielded cable. The following cable assemblies and cover connector are compatible with Dynisco sensor models: PT460E, PT460XL, PT4624, PT100 Series, PT462E, PT462XL, PT4625, PT465XL, TPT463E, TPT463XL, PT4626, FT444DH, PT467E, PT467XL, TPH4644, FTT4644, FT TPT4636, PT4674, PT4675, PT4676, EPR Series, MRT Series, DYN-X, DYN-X-TC, IPX / PX18X Series (6-pin connectors, non-FM version)
Configure your own product, according to your requirements and needs. If you are not sure about the configuration, tell us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know, we will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have the necessary product the next day.
Description
|
Cable Length (meters)
|
Part Number | |
Bendix PT06A-10-6S(SR) Konektor
|
3
|
929008 | |
Bendix PT06A-10-6S(SR) Konektor
|
6
|
929020 | |
Bendix PT06A-10-6S(SR) Konektor | 12 | 929022 | |
Bendix PT06A-10-6S(SR) Konektor | 18 | 929024 | |
Bendix PT06A-10-6S(SR) Konektor | 24 | 929025 | |
Bendix PT06A-10-6S(SR) Konektor | 30 | 929026 |
Description
|
Part Number | |
Bendix PT06A -10 - 6S (SR) 6 Socket, Cable Mount
|
711600 |
Description
|
Part Number | |
6 - Socket Twist Lock Connector Bendix. PTO2W - 10 6S (SR) or
Equivalent Weather Tight Connector Mates with PT1H - 10 - 6P (SR)
Hermetically Sealed Connector Reference Option B314
|
711610 | |
Cable Mounted 8 - Pin Connector
|
710070 | |
Cable Mounted 6 - Pin Connecter | 711170 | |
Threaded DIN Connector, DIN 681/090026097 Mates with PT449, DPS732 | 712000 | |
Panel Mounted 8 - Pin Connector | 710180 | |
Panel Mounted 6 - Pin Connector | 711160 | |
Type J Thermocouple, Female Connector Only | 753000 | |
Type J Thermocouple, Male Connector Only | 753001 | |
Type K Thermocouple, Female Connector Only | 753007 | |
Type K Thermocouple, Male Connector Only | 753008 | |
Teflon-Coated Cable, 6 - Conductor for High Temperature Applications | 800005 | |
1' Cable Assembly, Adapts PT462 to PT422 Connector and Wiring | 800860 | |
1' Cable Assembly, Adapts PT422 to PT462 Connector and Wiring | 800861 | |
20' Cable Assembly with 6 - Pin Bendix Connector for MTX Models with a Type J Thermocouple or B Output Options | 929125 | |
20', Weather - Tight, 6 Conductor Cable Assembly, 711610 Connector on One End, Stripped Wires on Other End | 801850 | |
Armored, 6 Conductor, 20' Cable Assembly with PT460 Mating Connector | 912221 | |
Armored, 6 Conductor, 20' Cable Assembly with PT420 Mating Connector | 912228 |
Separate Bendix connectors. In the 8-pin connector variant.
