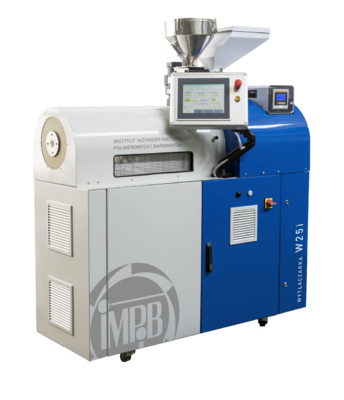

W25I Laboratory Extruder
The W25i single-screw laboratory extruder with innovative induction heating enables fast start-up and polymer processing at temperatures up to 650°C, including high-temperature materials (e.g., PEEK, PPS).
Single-screw extruder
Induction heating
Temperature up to 650°C
Heat-up time: 10–20 min
3 heating zones
Independent control
Main motor: 7.5 kW
Frequency inverter
PLC control
10" touch panel
Suitable for high-temperature polymers (e.g., PEEK, PPS)

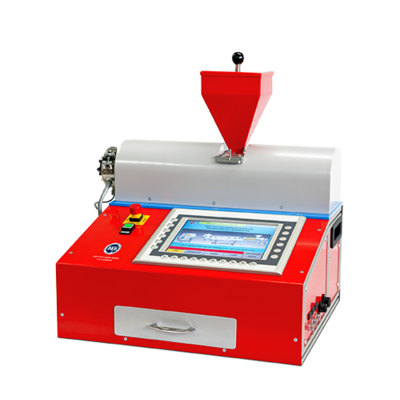

Laboratory Single-Screw Extruder W12
Compact W12 laboratory single-screw extruder for processing thermoplastics (PE, PP, PA, PVC) with an output of up to 2 kg/h. Ideal for education, research, testing, and R&D – requiring as little as 100 g of material.
Single-screw extruder
PE / PP / PA / PVC
Output up to 2 kg/h
Testing from ~100 g of material
Compact design
Easy operation
Research and laboratory testing
Company R&D and quality control
Expandable with additional equipment
LME - Laboratory Mixing Extruder
The Dynisco Polymer Test LME Laboratory Mixing Extruder is a unique laboratory tool developed to evaluate the processability of a variety of plastics and rubbers prior to production. From very fine powders to coarse materials, the LME will meet many extruding needs. The LME possesses a movable header and dial gage that allows for constant mixer adjustability. While in operation, the rotational shearing (mixing) is controlled by adjusting the distance between the end of the rotor and the inside header.
Three-part system
Extruder
Haul-off unit
Pelletizer
4 types of extrusion die heads
Two temperature zones
Max. 400°C
Variable speed
Cooled hopper
