PT46x4 Series
The PT46x4 Series pressure sensor is a ±0.5% sensor ideal for general melt pressure measurements requiring simple installation, repeatability and reliability. The PT46x4 sensor provides the industry standard 4-20 mA amplified signal designed to work with DCS and PLCs. The PT46x4 comes equipped with adjustable zero and span side-mounted potentiometers. PT46x4 Series mA sensors can be rezeroed in two ways: locally via the zero potentiometer, or remotely via shorting two pins together (contact closure). Optional thermocouple or RTD configurations are available to provide melt temperature. The PT46x4 features a 1/2-20 UNF thread for simple and easy installation in standard transducer mounting holes. The 4-20 mA output signal is rated PL‘c’ as described in the Machinery Directive EN ISO 13849-1. The PT46x4 Series mA sensors are self-certified based on the evaluation reports of the respected third-party agency, exida™. The PT46X4 Series mA sensors have undergone extensive FMEDA analysis (Failure Mode Effects and Diagnostic Analysis). The FMEDA reports show that these sensors have been evaluated for random failure requirements and meet Performance Level ‘c’ (PL‘c’) as well as SIL2 (Safety Integrity Level 2). The information in the FMEDA report can be used by the customer’s system designer as part of the overall qualification of the device in the system for PL‘c’ or SIL compliance. The PT46x4 Series can be equipped with a safety relay, separate from the signal output. Called Guardian, this optional relay signal has an application specific pressure threshold setting that will place a machine in a safe mode as described in the Machinery Directive EN ISO 13849-1.
Pressure sensors Dynisco PT46X4 Series
Pressure sensors Dynisco PT46X4 Series
Pressure sensors Dynisco PT46X4 Series
Pressure sensors Dynisco PT46X4 Series
Pressure sensors Dynisco PT46X4 Series
Pressure sensors Dynisco PT46X4 Series
Inquiry system
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.
If you need more information do not hesitate to contact us.
Dynisco Configuration Code:
Local and remote rezeroing capability
Our pressure sensors offer efficient, accurate, and durable solutions for reliable and safe pressure measurement. These sensors are used in a variety of industrial areas, where they monitor and measure the pressure of molten materials, ensuring optimal operation of production processes. Due to their resistance to high temperatures and pressures, which are typical for these applications, they represent a suitable choice for diverse uses. When selecting a sensor, it is important to consider the specific requirements of your application, such as temperature range, pressure range, and materials with which the sensor will interact. The correct choice of sensor guarantees reliable and accurate results and a long service life of the device without any problems. Installing the sensor into the mounting hole of the production line is simple.
However, if you have doubts about the proper installation, do not hesitate to contact our technicians. We are ready to provide support and offer the ideal solution for your application.
The PT46x4 sensor provides the industry standard 4-20 mA amplified signal designed to work with DCS and PLCs. The PT46X4 comes equipped with adjustable zero and span side-mounted potentiometers. PT46X4 Series mA sensors can be rezeroed in two ways: locally via the zero potentiometer, or remotely via shorting two pins together (contact closure). Optional thermocouple or RTD configurations are available to provide melt temperature. Features a 1/2-20 UNF thread for simple and easy installation in standard transducer mounting holes.
The PT46X4 Series includes models PT4604, PT4624, PT4634, TPT4604, TPT4624, and TPT4634.
⚠ WARNING: This product can expose you to chemicals including mercury and lead, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.
PT4604 Pressure Sensors - With rigid stem
Rigid Stem pressure sensors are easily installed into the mounting hole of the production line, ensuring a simple and robust design that is suitable for applications where the sensor is not exposed to radiant heat from the line and the electronics are not subjected to extreme temperatures. We do not recommend installing these sensors in a vertical position above the line (12 o'clock position), as radiant heat can negatively affect the sensor's electronics lifespan. In such cases, we recommend using a sensor design with a flexible capillary, which allows the electronics to be diverted away from the radiant heat, ensuring a long sensor life. The main advantages of this type of sensor include resistance to impacts and vibrations, enabling them to withstand mechanical stress, which increases their lifespan and reduces the need for maintenance. They also feature high accuracy, ensured by quality materials and advanced measurement technology, which is crucial for efficient process control.
PT4624 Pressure Sensors - With rigid stem and flexible capillary
Pressure sensors with flexible capillaries represent a professional solution suitable for applications with limited space or exposure to radiant heat from heating elements in production lines. Thanks to the thoughtful extended design, the sensor's electronics are located out of reach of the radiant heat source, reducing the risk of damage.
The flexible capillary is designed to be resistant to damage and allow a high degree of bending, which facilitates installation and handling of the sensor. It is essential to properly secure the sensor head to the included adapter, which is part of the package. To achieve optimal performance, we recommend placing the adapter on a part of the machine where unwanted vibrations or shocks do not occur, as these could negatively affect the sensor.
The length of the rod and flexible capillary can be customized according to individual needs, as well as other optional components. This ensures maximum flexibility in integrating the sensor into a wide range of industrial applications.
TPT4634 Pressure Sensors - Combined sensor with rigid stem, flexible capillary and built-in temperature sensor
Combined pressure sensors with flexible capillaries represent a professional solution suitable for applications with limited space or exposure to radiant heat from heating elements in production lines. Thanks to the thoughtful extended design, the sensor's electronics are located out of reach of the radiant heat source, reducing the risk of damage.
Additionally, these sensors are equipped with a temperature sensor, allowing the customer to choose the type of sensor, whether it is a type J, K thermocouple, or an RTD (pt100). By selecting a compatible sensor for temperature measurement, the customer obtains information about the melt temperature from a single process connection, increasing measurement efficiency and accuracy.
The flexible capillary is designed to be resistant to damage and allow a high degree of bending, which facilitates installation and handling of the sensor. It is essential to properly secure the sensor head to the included adapter, which is part of the package. To achieve optimal performance, we recommend placing the adapter on a part of the machine where unwanted vibrations or shocks do not occur, as these could negatively affect the sensor.
The length of the rod and flexible capillary can be customized according to individual needs, as well as other optional components. This ensures maximum flexibility in integrating the sensor into a wide range of industrial applications.
Performance Characteristics
| Outputs: | 4-20 mA |
|---|---|
| Input Voltage: | 14-36 Vdc |
| Accuracy: | ±0.5% FSO combined error (Including Linearity, Repeatability & Hysteresis) |
| Repeatability: | ±0.2% FSO |
| Configuration: | Four-arm bonded foil Wheatstone bridge strain gage |
| Load Resistance: | 0-1,100 Ohms |
| Over Pressure: | 2x FSO or 35,000 psi (whichever is less) |
| Internal Shunt Calibration (R-Cal): | 80% FSO ±0.5% |
| Insulation Resistance: | 1,000MΩ @ 50 Vdc |
Mechanical Characteristics
| Diaphragm Temp, Max: | 750°F (400°C) |
|---|---|
| Zero Shift (temp chg): | 25 psi/100°F Typical (45 psi/100°C) |
| Electronics Operating Temp: | -20° to 185°F (-29° to 85°C) |
| Zero Shift (temp chg): | ±0.05% FS/°F max (±0.10% FS/°C max |
| Mounting Torque: | 500 inch/lbs. max |
| Standard Wetted Parts: | DyMax® coated 15-5 PH SST |
Approvals & self certifications
| CE: | Directive 2004/108/EC |
|---|---|
| PL’c’: | EN ISO 13849-1 meeting the performance requirements of a safety-related part of a control system for Performance Level ‘c’ (PL’c’) safety system when installed per Category 1 |
| SIL2: | Safety Integrity Level 2 |

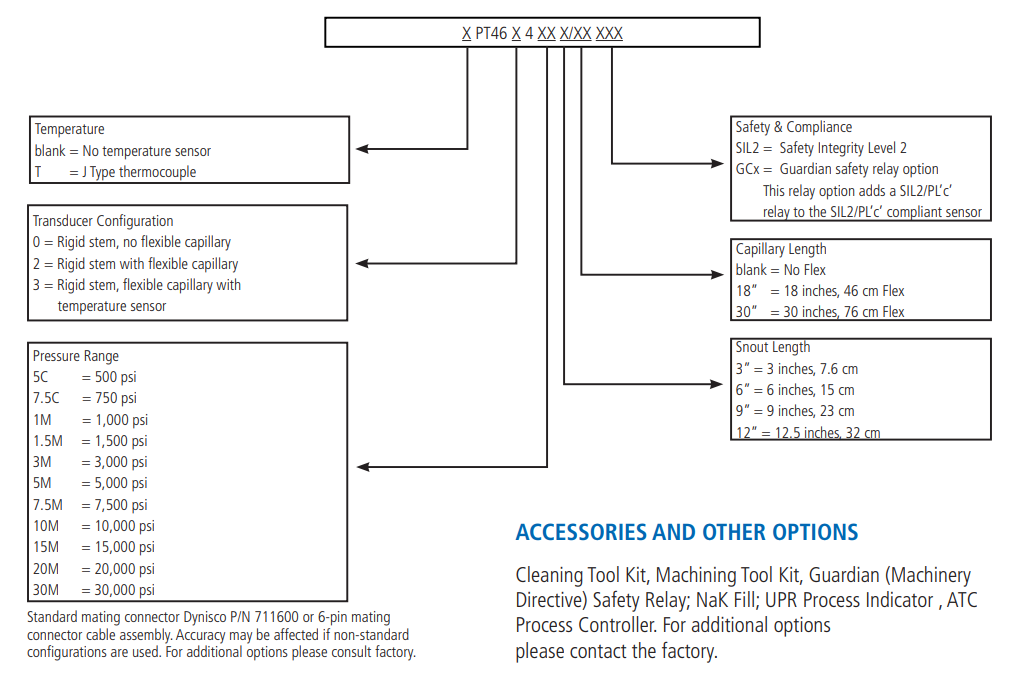

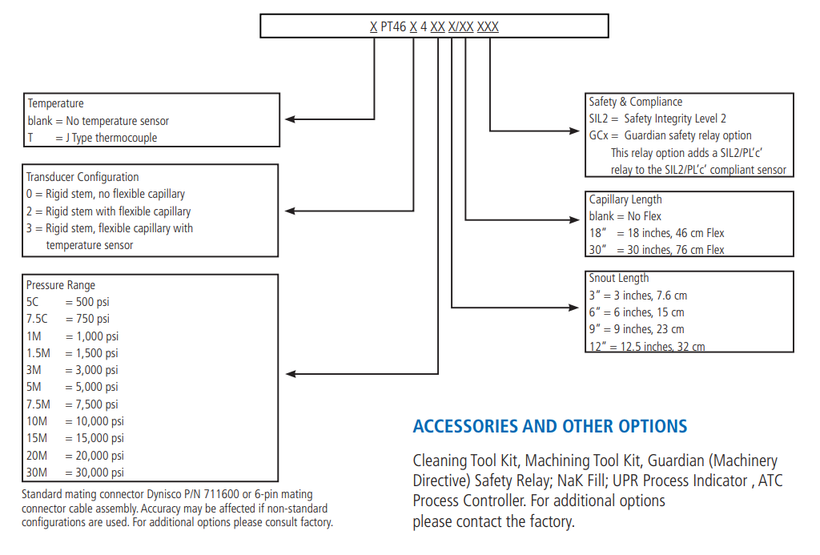

Ordering Guide for PT46x4 Series

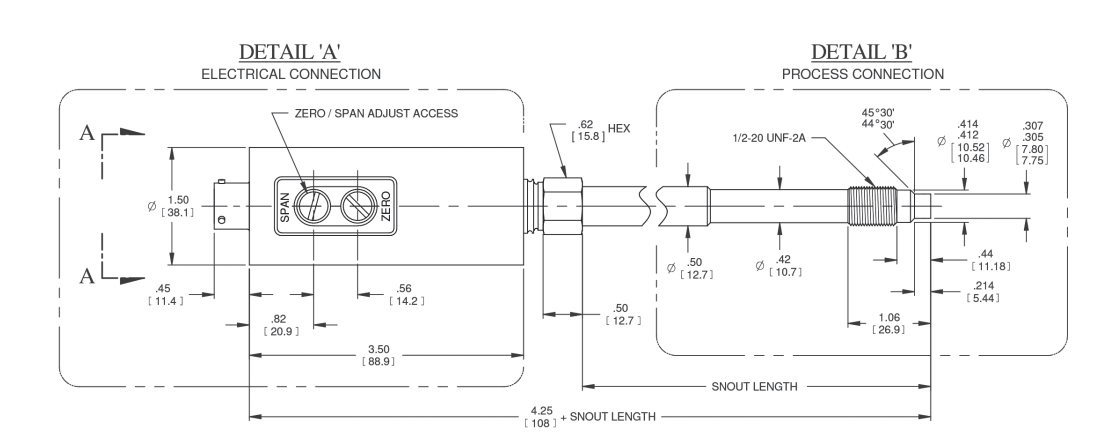

PT4604 - Dimensions
All dimensions are inches (mm) unless otherwise specified.

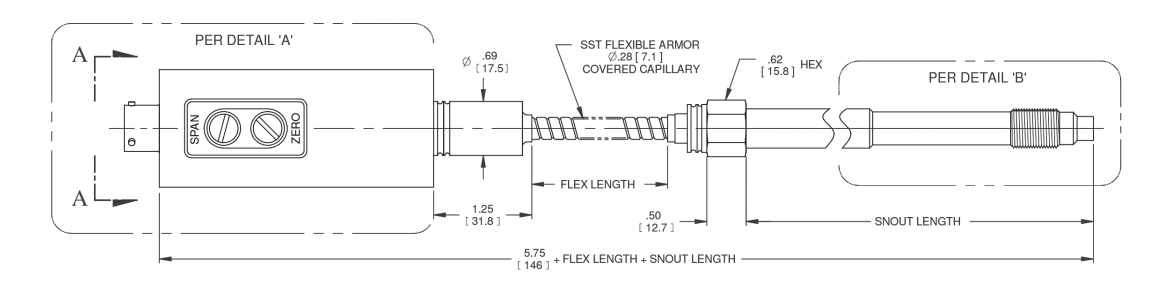

PT4624 - Dimensions
All dimensions are inches (mm) unless otherwise specified.

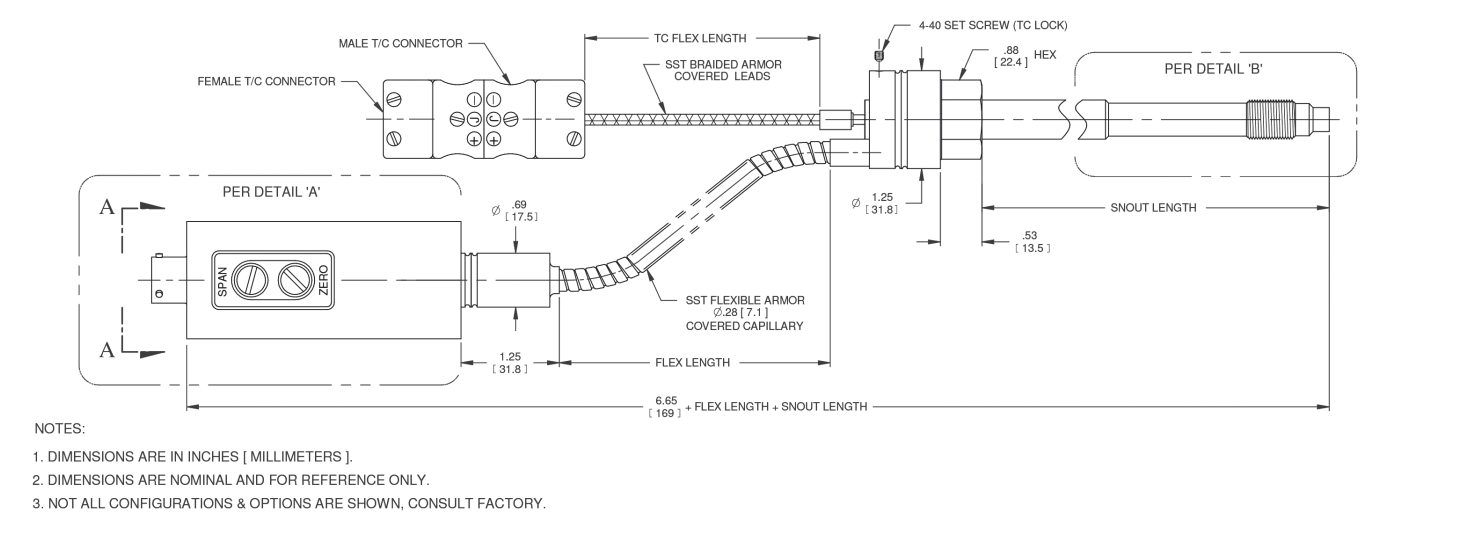

TPT4634 - Dimensions
All dimensions are inches (mm) unless otherwise specified.
