SPX3343 Smart Pressure Sensor Series

SPX3343

The SPX-T (3-Series) is a smart 4-20mA pressure transmitter that includes Temperature Compensation and DynaLarity™, a Dynisco innovation. The SPX-T delivers the best spec performance in the line. Temperature Compensation is based on an RTD measurement that compensates for temperature variations which reduces temperature-related drift and increases accuracy. No need to re-zero for temperature changes after installation. DynaLarity uses an advanced algorithm that will linearize offsets due to process effects on the sensor. Combined Temperature Compensation and DynaLarity reduces temperature-related drift by as much as 80% and improves accuracy by more than 60% over other sensors. Process temperature output is available (RTD or 4-20mA). HART communication is standard. The SPX 3-Series is an all-welded construction designed for use in hazardous locations and are available with a variety of different process and electrical connections. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices

All sensors in this series can be configured according to your needs. Contact us, we will be happy to help you.

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Dynisco SPX 2 Series Smart Pressure Sensor

Inquiry system

Configure your own product, according to your requirements and needs. If you are not sure about the configuration, tell us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know, we will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have the necessary product the next day.

SPX-T 3 - series - Pressure sensor - model:

Your personal data will be processed according to Terms of personal data processing..

General Purpose Smart Pressure Sensors for Hazardous Locations

The SPX-T delivers the best spec performance in the line. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices.

The SPX-T Series includes models SPX3242, SPX3243, SPX3342, SPX3343, SPX3290, SPX3291, SPX3390, and SPX3391.

⚠ WARNING: This product can expose you to chemicals including mercury and lead, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.



SPX3343 Series


The SPX-T (3-Series) is a smart 4-20mA pressure transmitter that includes Temperature Compensation and DynaLarity™, a Dynisco innovation. The SPX-T delivers the best spec performance in the line. Temperature Compensation is based on an RTD measurement that compensates for temperature variations which reduces temperature-related drift and increases accuracy. No need to re-zero for temperature changes after installation. DynaLarity uses an advanced algorithm that will linearize offsets due to process effects on the sensor. Combined Temperature Compensation and DynaLarity reduces temperature-related drift by as much as 80% and improves accuracy by more than 60% over other sensors. Process temperature output is available (RTD or 4-20mA). HART communication is standard. The SPX 3-Series is an all-welded construction designed for use in hazardous locations and are available with a variety of different process and electrical connections. These amplified transmitters eliminate the need for external signal conditioning. All models can interface directly with distributed control systems, PLC's, computers, and similar high level control devices



Performance Characteristics


Output: 4 - 20 mA, with optional HART™
Input Voltage: 16 - 36 Vdc (Std); 16 - 30 Vdc (ATEX IS)
Accuracy:
Accuracy is defined as the combined error expressed as a percentage of full scale output with the specifications of: Electronics ambient temperature; Snout compensated temperature range; capillary of <= 36"; DyMax coated 15-5 SST diaphragm; Best Straight Line (BSL) %FS, per ISA-37.1. Consult Factory for availability and specifications of other configurations.

32XX: ± 0.25% for pressure ranges > 3,000 psi ± 0.5% for pressure ranges = 1,500 psi ± 0.75% for pressure ranges < 1,500 psi

33XX: ± 0.15% for pressure ranges > 3,000 psi ± 0.25% for pressure ranges = 1,500 psi ± 0.5% for pressure ranges < 1,500 psi

Repeatability: ±0.1%
Rangeability: 6:1 Turndown
Over Pressure: 1.5 x FSO
Load Resistance: 500 Ω @ 24 Vdc, 1,000 Ω @ 36 Vdc
Electronics Ambient Temperature 70°F (20°C)
Electronics Operating Temperature -20 to 185°F (-29 to 85°C)
Electronics Compenstated Temperature Range 70 to 185°F (20 to 85°C)
Snout Compensated Temperature Range 70 to 572°F (20 to 300°C)
Snout Operating Temperature  Models: 3242, 3243, 3342, 3343: 32 to 752°F (0 to 400°C)
Models: 3290, 3291, 3390, 3391: 32 to 600°F (0 to 315°C)



Mechanical Characteristics



Mounting Torque:

3242: 500 inch-lbf max
3243: 50 inch-lbf max
3342: 500 inch-lbf max
3343: 50 inch-lbf max
3290: 350 inch-lbf max
3291: 350 inch-lbf max
3390: 350 inch-lbf max
3391: 350 inch-lbf max

Standard Wetted Parts: DyMax coated 15-5 PH SST

Approvals & Certifications




ATEX/IECEx Intrinsically Safe
SIL 2 (pressure output) & PL'c' (relay output)
FM & CSA Explosion Proof
Additional Approvals are Available

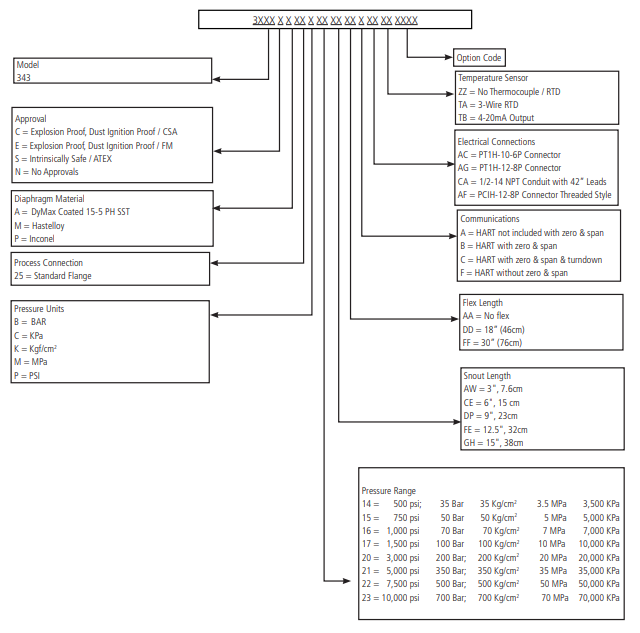

Ordering Guide for Models SPX3343

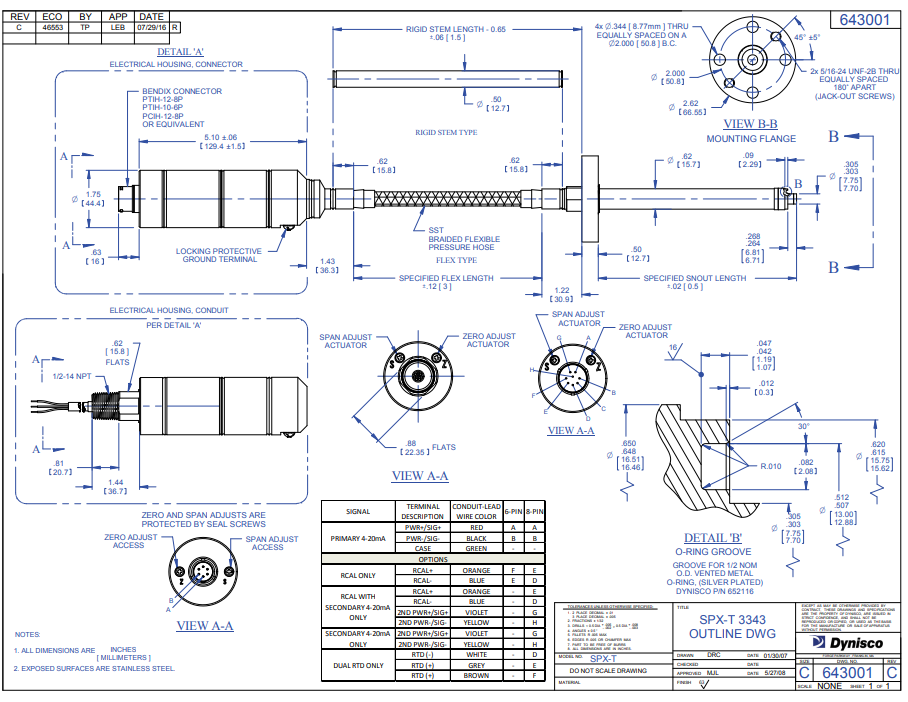

SPX3343 Series - Dimensions

All dimensions are inches (mm) unless otherwise specified.

Transducer Mounting Hole Cleaning Tool Kit

Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.


Transducer Mounting Hole Machining Tool Kit

The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.
