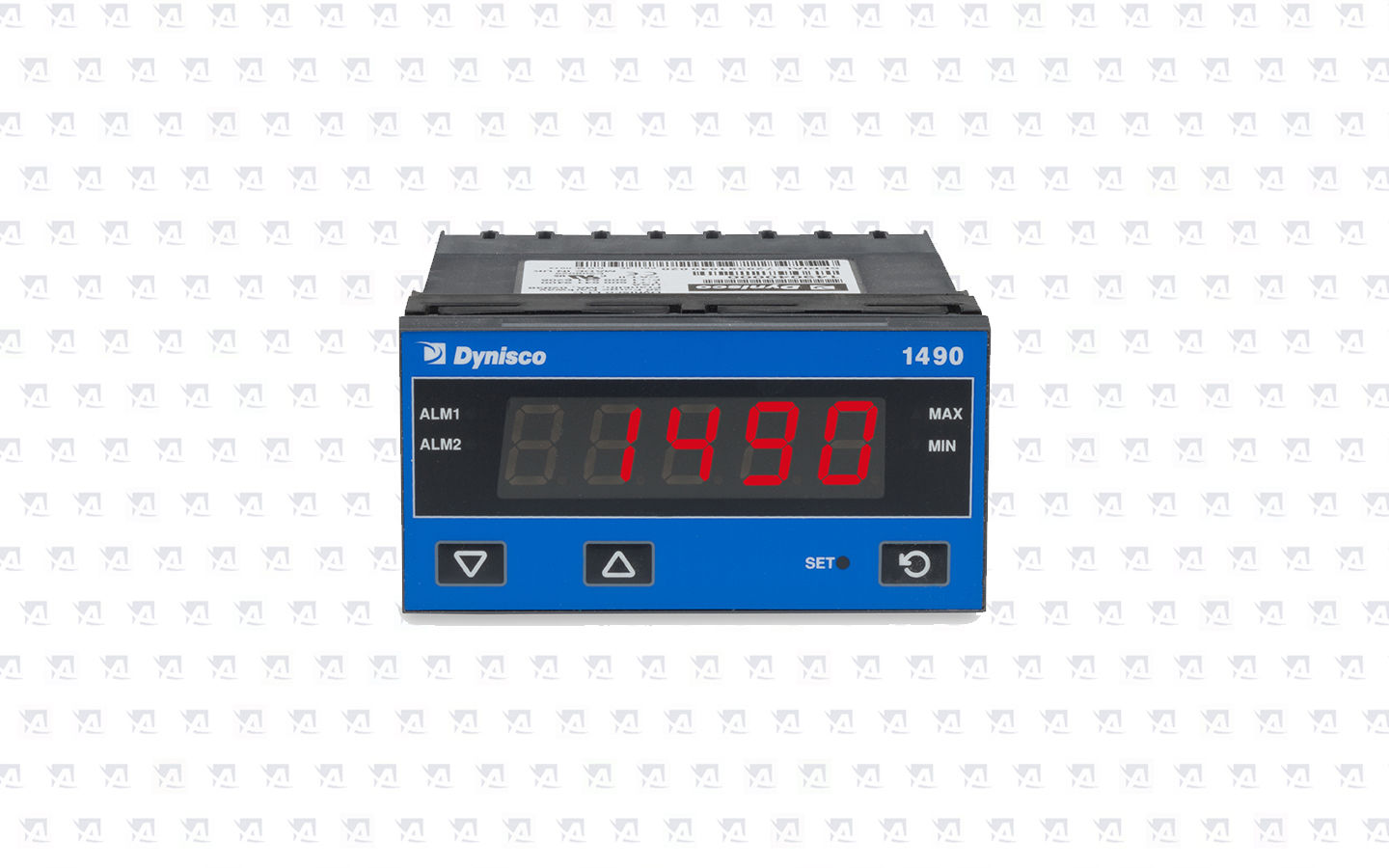

1490 Process Panel Indicator

1490 Process Panel Indicator

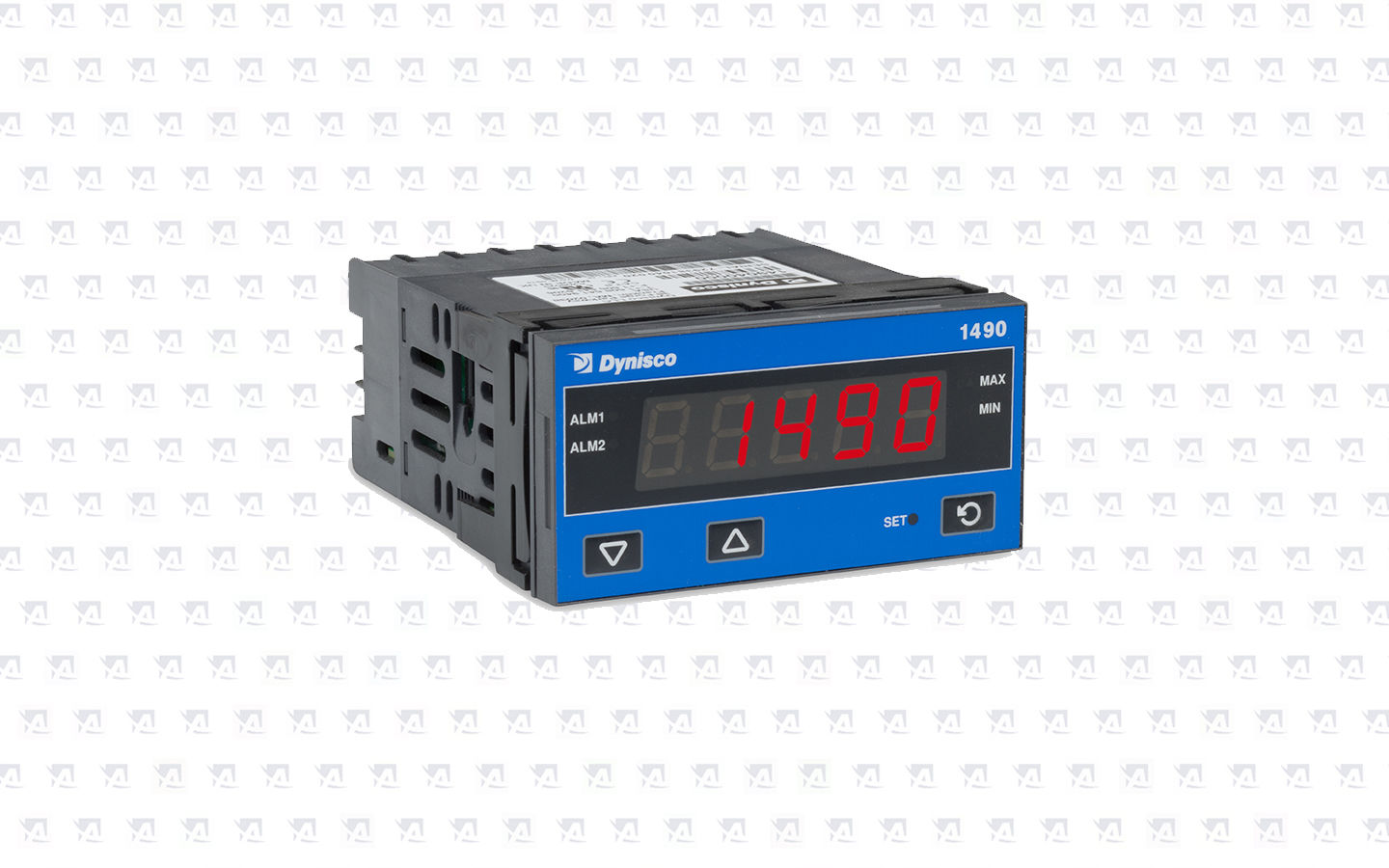

The 1490 is a Universal Input Indicator with single or dual configurable alarms, optional linear retransmission of Process Variable, Transmitter power supply option as well as optional Modbus communications.

All devices in this series are fully customizable according to your needs. If you have concerns about the configuration, please contact us and we will be happy to help. Just send us information about the connection to other devices and we will adjust the settings for you before shipping.

1490 Panel Indicator

1490 Panel Indicator

1490 Panel Indicator

1490 Panel Indicator

1490 Panel Indicator

1490 Panel Indicator

1490 Panel Indicator

1490 Panel Indicator

1490 Panel Indicator

1490 Panel Indicator

Inquiry system

Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.

If you need more information do not hesitate to contact us.

Dynisco Configuration Code:

Your personal data will be processed according to Terms of personal data processing..

Universal process pressure or temperature pane indicator

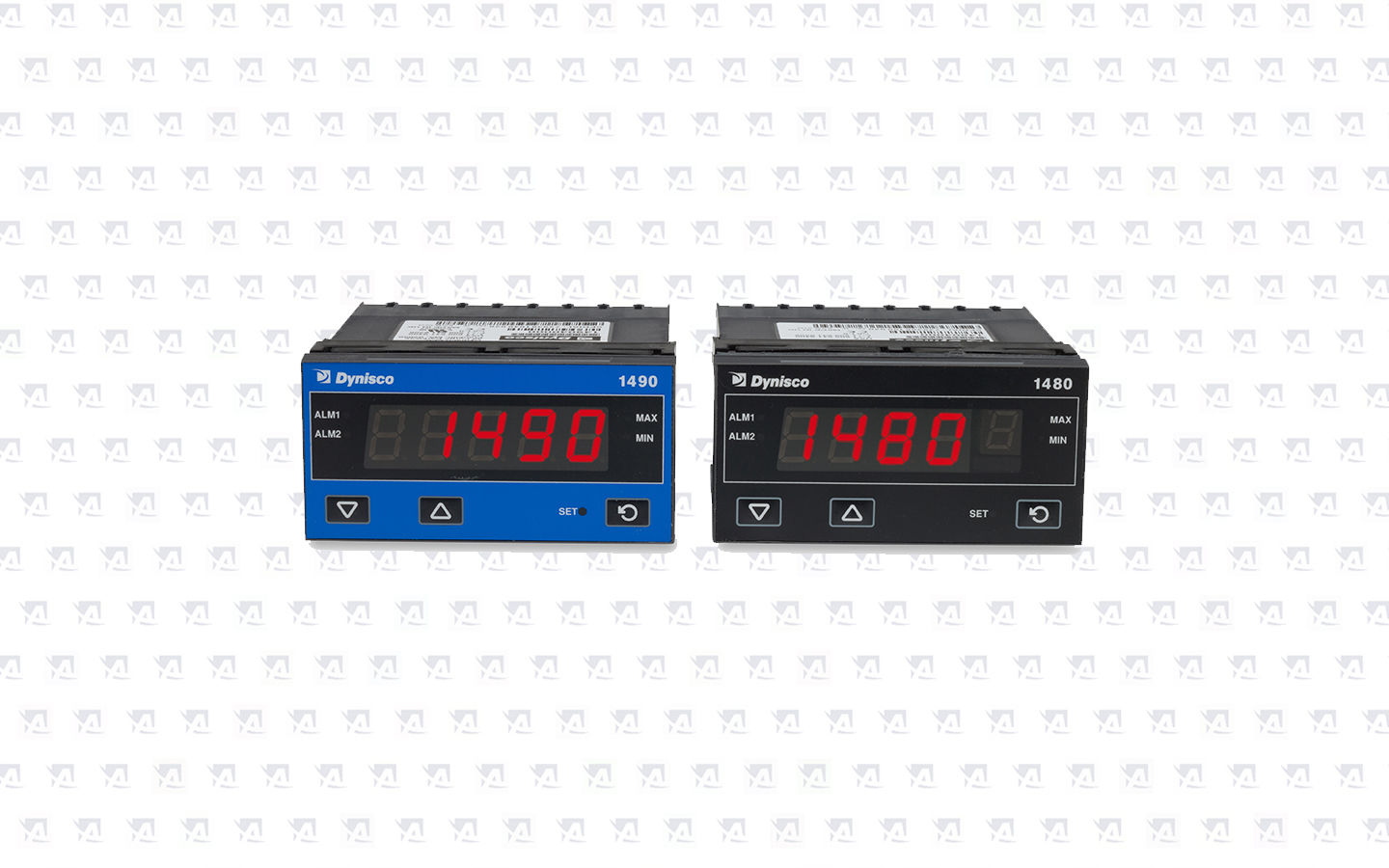

Dynisco 1480 1/8 DIN Panel Indicator



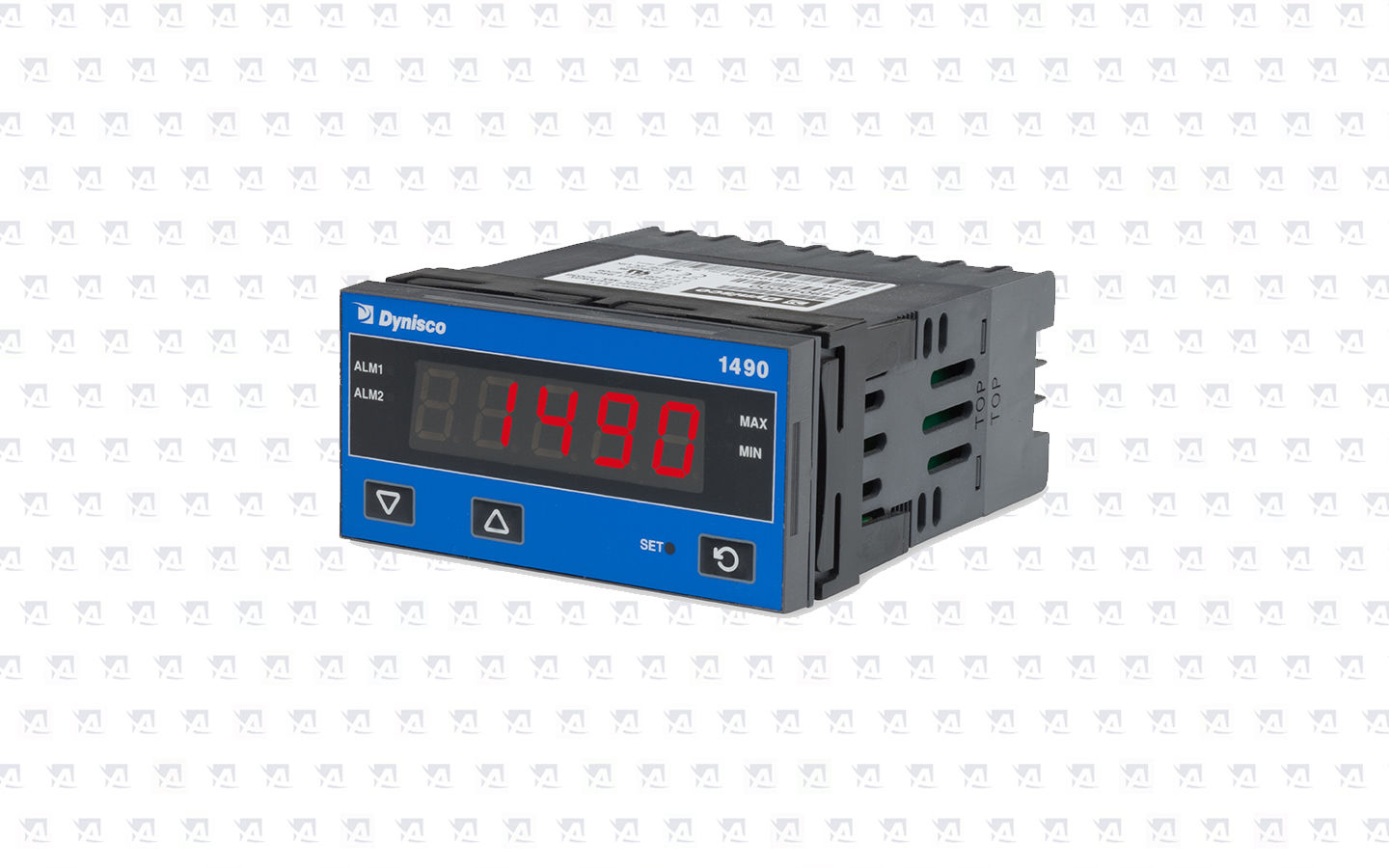

The 1490 is a Universal Input Indicator with single or dual configurable alarms, optional linear retransmission of Process Variable, Transmitter power supply option as well as optional Modbus communications.

Universal process panel indicator is a device used for displaying various process variables, such as temperature, pressure, and others. This indicator is usually mounted on a panel of the device where monitoring and control of the process are carried out.

The universal process panel indicator allows the user to set the input signal that is to be displayed. A value for exceeding a certain level that activates an alarm can also be set.

These indicators are usually equipped with various functions, such as output configuration, alarm settings, display of maximum and minimum values, and others. This allows the user to customize the indicator to the specific needs and requirements of the given process.



Performance Characteristics


Output Configuration: 1 or 2 relay outputs, with optional linear retransmission
Alarms: 2 process high / low with adjustable hysteresis
Viewable Values: Process variable, maximum value, minimum value
Human Interface 3 button operation, 5 digit 13mm high display red, 2 alarm indicator
Input

Thermocouple: J, K, C, R, S, T, B, L, N & PtRh20%vsPtRh40%
RTD: 3 Wire PT100, 50Ω per lead maximum (balanced)
Strain Gauge: 350 Ohm Strain Gage
Bridge Connection: 4 or 6 wire (6 to use internal shunt cal switch)
Bridge Excitation: 10V ±7%
Bridge Sensitivity: 1.4 to 4 mV/V
Input Signal Span: - 25% to +125% of full scale (approximately -10 mV to +50 mV)
 Calibration:  Internal switch between CAL2 & CAL1 terminals. External resistor only
 Shunt Value: From 40% to 100%
DC Linear: 0 to 20mA, 4 to 20mA, 0 to 50mV, 10 to 50mV, 0 to 5V, 1 to 5V, 0 to 10V, 2 to 10V
Scaleable: -1999 to 99999 with adjustable decimal point
Impedance: >10MΩ for Thermocouple and mV ranges, 47KΩ for V ranges and 5Ω for mA ranges
Accuracy: ±0.1% of input range ±1 LSD (T/C CJC better than 1°C)
Sampling: 10 per second, 16 bit resolution approximately (100ms sample time)
Sensor Break Detection: <2 seconds (except zero based DC ranges), high alarms activate for T/C, RTD and mV ranges, low alarms activate for mA or V ranges



Outputs & Options



Alarm Relays: Contacts Single Relay SPDT 2 Amp resistive at 240V AC, >500,000 operations. Latching or non-latching. Duel Relay SPST 2 Amp resistive at 240V >200,000 operations. Reinforced safety isolation from inputs and other outputs
DC Linear Retransmit Outputs: 0 to 20mA, 4 to 20mA into 500Ω max, 0 to 10V, 2 to 10V, 0 to 5V into 500Ω min. 15 3/4 bit (1 part in 52K) and updated at about 65ms intervals. (130ms settling time) Stability: ±76ppm
Transmitter Power Supply: Output 24VDC @ 60mA
Serial Communications: 2 Wire RS485, 1200 to 19200 Baud, Modbus
Logic Input:  External reset of latched relay, stored alarm 1 elapsed time, stored min/max PV values or initiate tare function. Action occurs on high (3 to 5VDC) to low <0.8VDC, or Open to Closed transition

Operating & Environmental




Temperature & RH: 0 to 55°C (-20 to 80°C storage), 20% to 95% RH non-condensing
Power Supply:  110 to 240V 50/60Hz 7.5VA (optional 20 to 48V AC 7.5VA/22 to 65V DC 5 watts)
Front Panel Protection: IEC IP66 (Behind panel protection is IP20)
Standards: CE. Pollution Degree 2, Installation Category II “UL Listed”

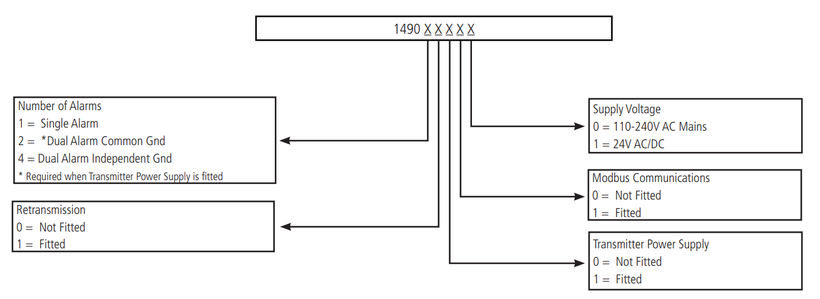

Ordering Guide for 1490 5 Digit 1/8 DIN Panel Indicator

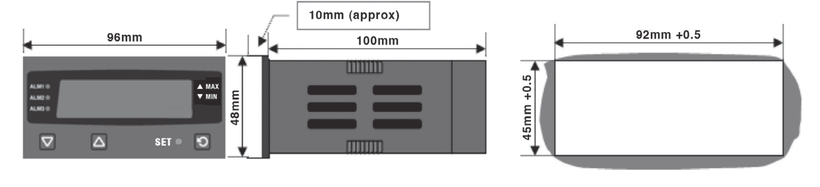

1480 - Dimensions

All dimensions are inches (mm) unless otherwise specified.

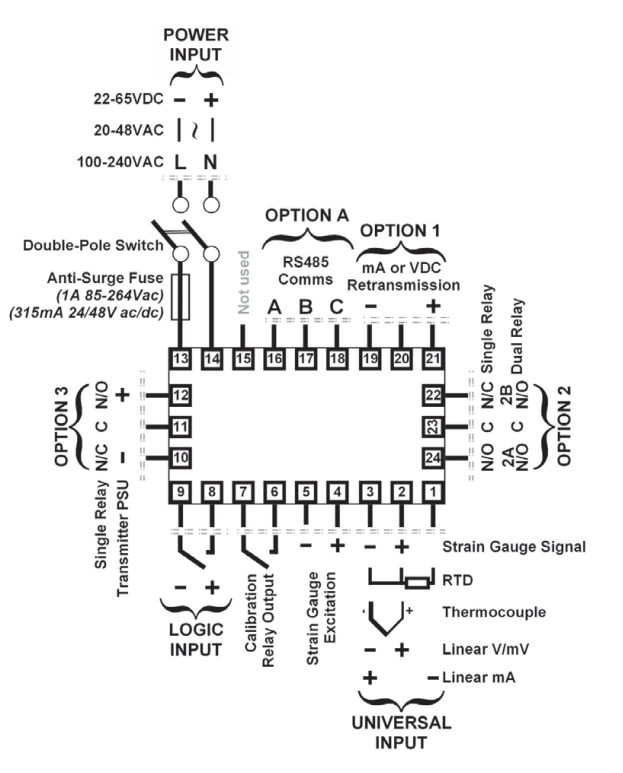

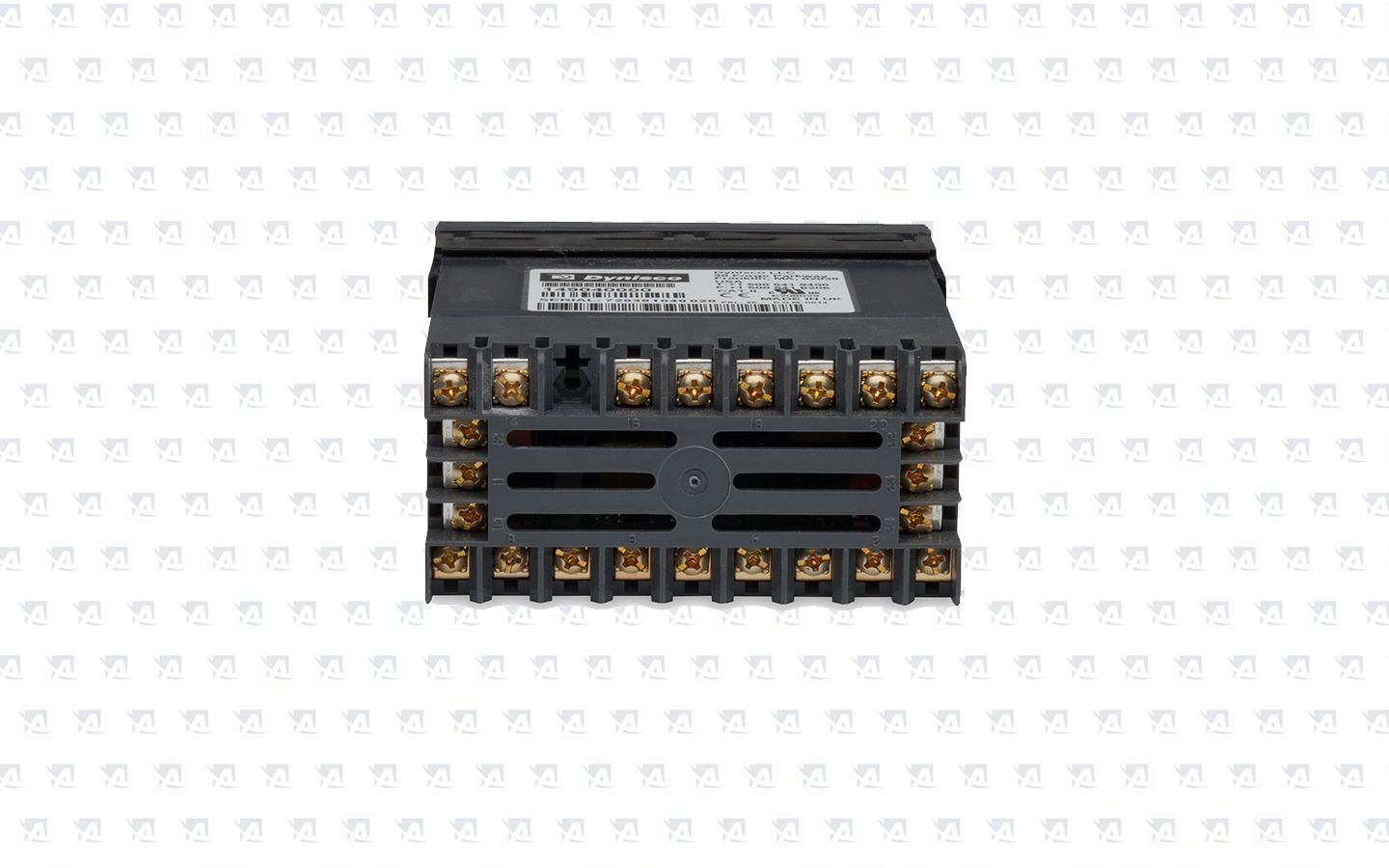

Wiring Label/Rear Terminals

All dimensions are inches (mm) unless otherwise specified.
