The Dynisco Melt Thermocouple Series DYKE is especially designed to meet the requirements of the polymer industry. The flexible design of this series allows the use in extrusion and injection molding process. The mounting thread is compatible with the threads used for melt pressure measurement. Therefore, the DYMT series is ready for use in most extrusion systems. As an alternative to the DYM T series, the DYKE series offers the possibility of a thermal insultation of the housing. The sensor tip is being ceramically insulated from the housing. These temperature sensors are especially suitable for the use in high abrasive medial.
DYKE with ceramic tip insulation
DYKE standard tip
Cable to Dyke temperature sensor
Cable to Dyke temperature sensor
Cable to Dyke temperature sensor

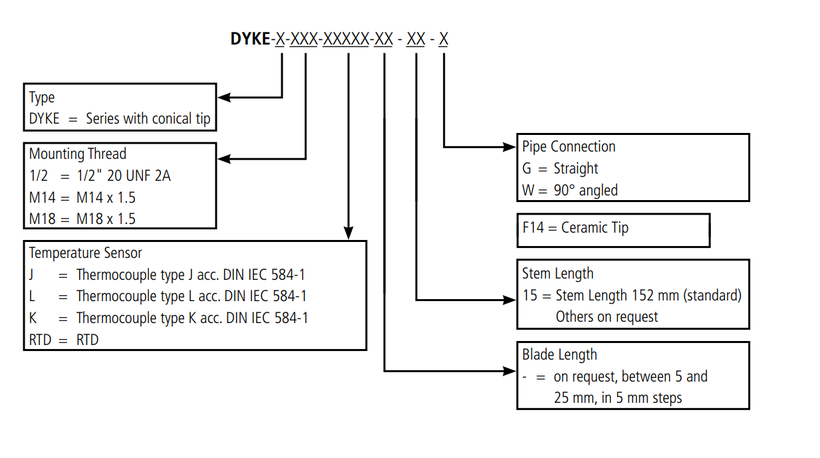

Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.
If you need more information do not hesitate to contact us.
The Dynisco Melt Thermocouple Series DYKE is especially designed to meet the requirements of the polymer industry. The flexible design of this series allows the use in extrusion and injection molding process. The mounting thread is compatible with the threads used for melt pressure measurement. Therefore, the DYMT series is ready for use in most extrusion systems. As an alternative to the DYM T series, the DYKE series offers the possibility of a thermal insultation of the housing. The sensor tip is being ceramically insulated from the housing. These temperature sensors are especially suitable for the use in high abrasive medial.

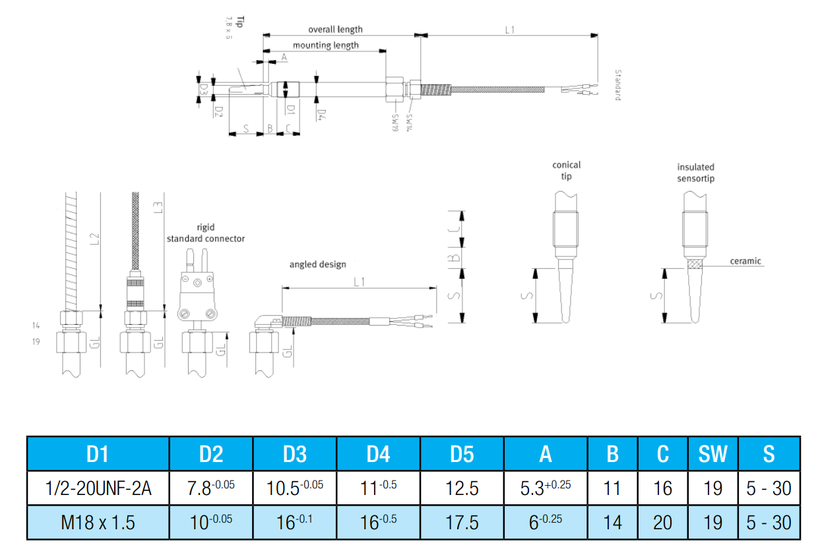

Technical Data / Operating Data
| Thread: | 1/2"-20 UNF, M18 x 1.5 or M14 x 1.5 |
|---|---|
| Stem Length: | 152 mm standard, others on request |
| Mounting Thread: | rotary, if ceramically insulated rigid |
| Blade Length: | conical, selecatable ceramical insulation |
| Material in Contact with Media: | Mat. No 1.4571 |
Electrical Characteristics
| Thermocouple: | J, K, L, other types on request |
|---|---|
| RTD: | wireable as 2-, 3- or 4-wire |
| Connector: | IEC-Connector for Thermocouples, DIN-Connector for RTD |
| Pipe Connection: | Straight or 90° angled |
| Cable Length: | 150 mm, others on request |
