GRMT
A sliding thermocouple (GRMT) is used to measure the temperature inside the polymer melt flow with different sensing depths. The temperature sensing position can vary from the chamber wall to the center of the chamber during standard flow and pressure conditions without removing the sensor from the adapter. The offset in the design of the temperature sensor housing allows the user to select and monitor the displacement depth of the sensor in which it is currently located.
GRMT - Dynisco temperature sensor with adjustable immersion depth.
Cable to GRMT temperature sensor
Cable to GRMT temperature sensor
Cable to GRMT temperature sensor
Inquiry system
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.
If you need more information do not hesitate to contact us.
Dynisco Configuration Code:
Reliable and safe temperature measurement system
Melt Temperature Probe Series GRMT
The Graduated Retractable Melt Thermocouple (GRMT) is used to measure temperatures inside the polymer melt stream. The depth of immersion of the junction into the hot melt stream can be varied from zero to mid-stream during maximum flow and pressure conditions, without removing the sensor from the adapter. Using the graduations on the stem of the temperature sensor allows the user to choose and monitor the specific depth at which the junction is in the melt stream.
Features & Benefits
TC Junction can be centered in hot melt stream
Retractable from flush to 2.5”
Up to 900°F (480°C) melt temperatures
All stainless steel construction
Exposed junction
1/2-20 UNF mounting configuration
Obtains temperature profiles without stopping the process
Designed for extrusion applications
Corrosion resistant option available – HAST C
Directly replaces any standard melt thermocouple

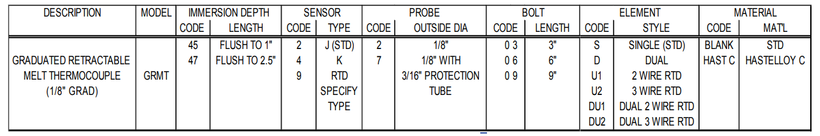

Ordering Guide for GRMT Series

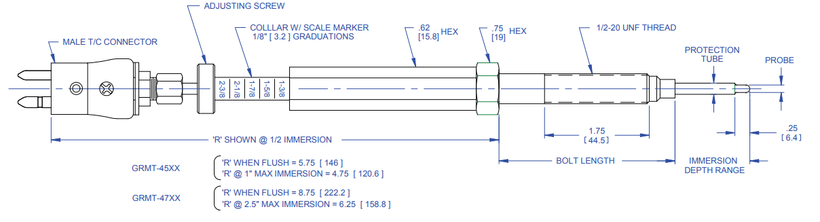

GRMT - Dimensions
All dimensions are inches (mm) unless otherwise specified.
Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.
The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.
