TG422J Dynisco Thermocouples

TG422J

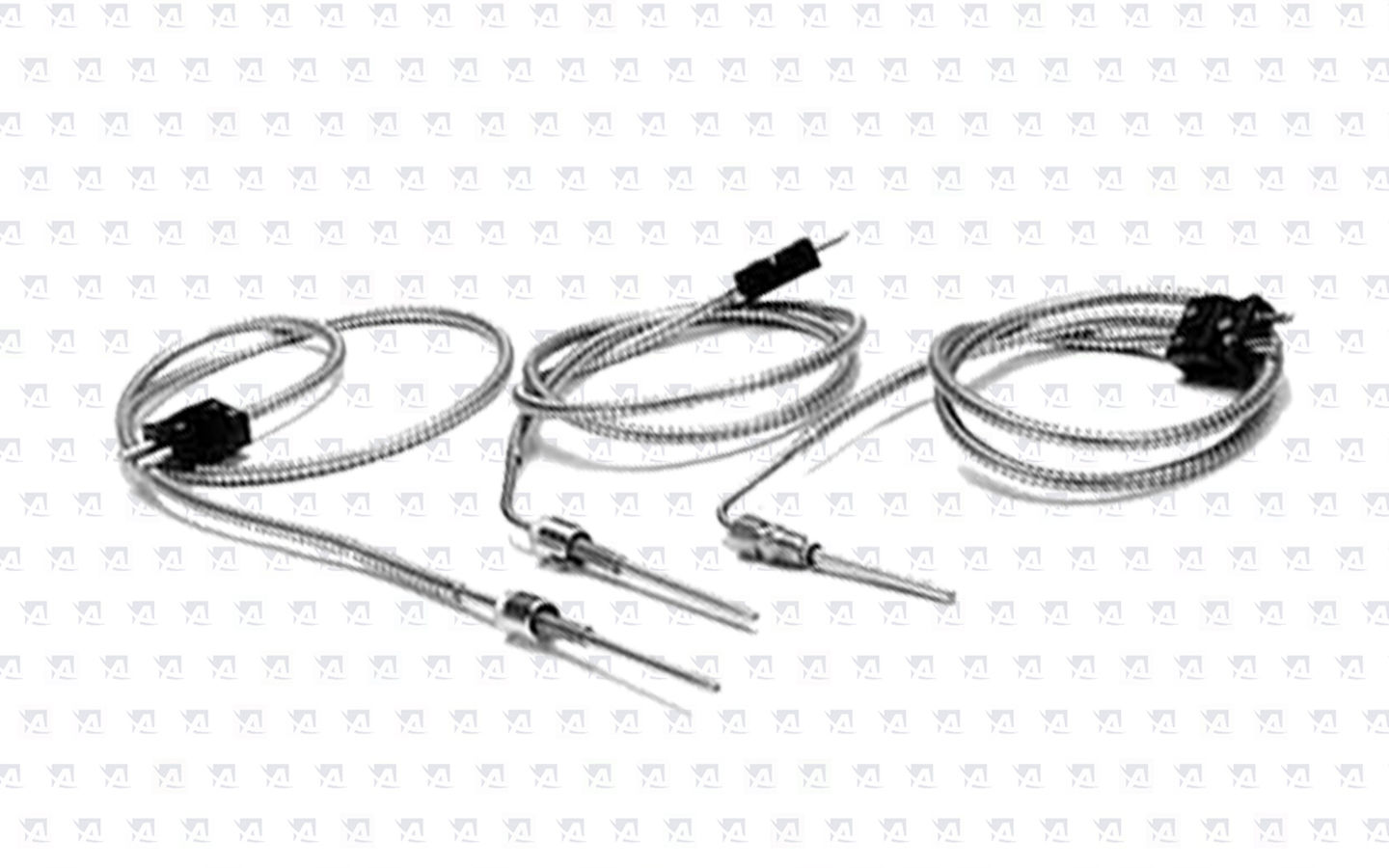

Thermocouples are the most common and widely used devices used to measure temperature. The Dynisco TG422J thermocouples offer a versatile and cost-effective variant, making it a popular choice for extrusion applications in the plastics industry. Available in type J and with a 304 stainless steel construction, the probe can be straight or made at an angle of 45 ° or 90 °. Dynisco thermal thermocouples are designed and manufactured to applicable ISA standards with precision following the National Institute of Standard Technology (NIST).

TG422J - Dynisco temperature sensor

TG422J - Dynisco temperature sensor

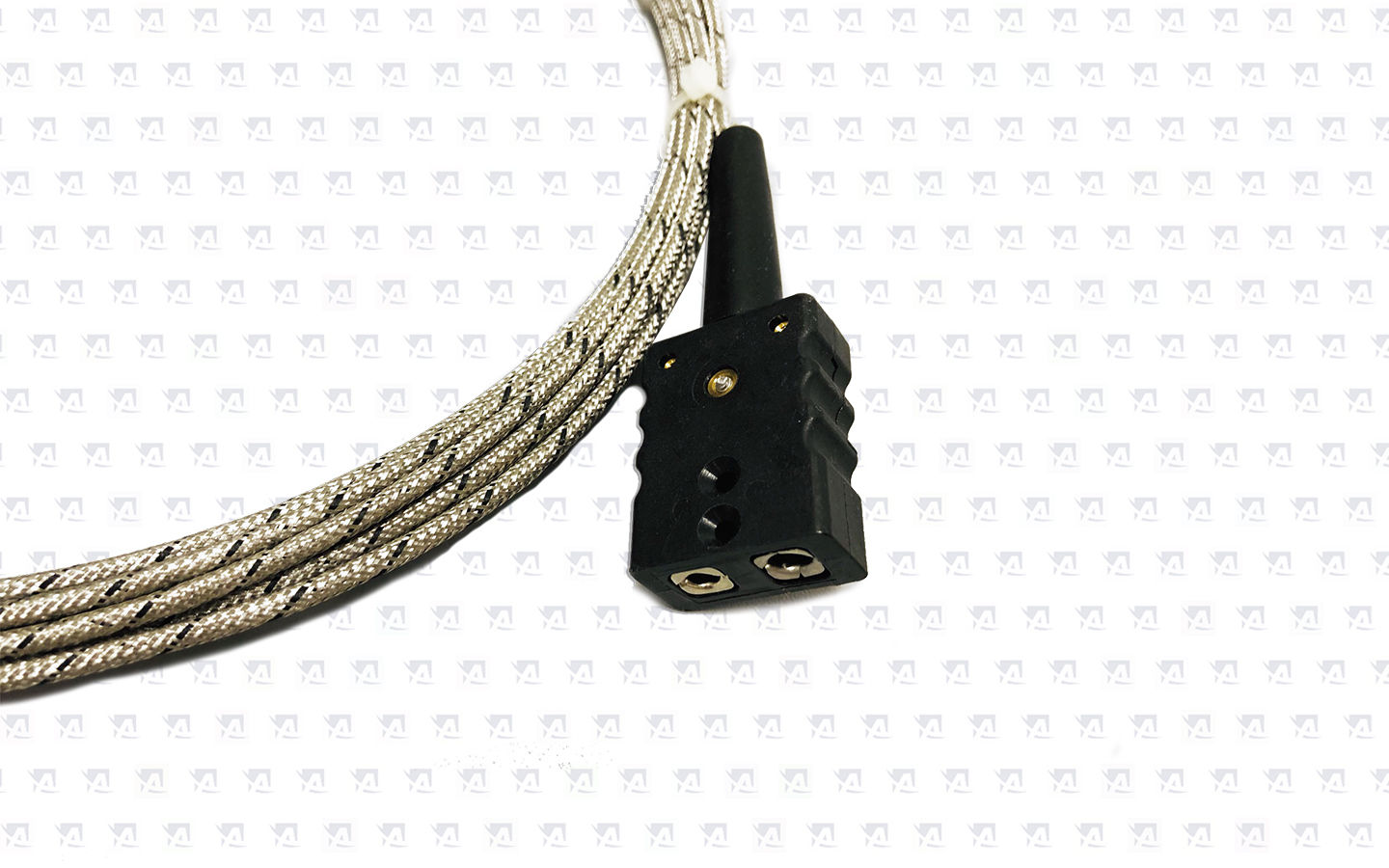

Kabeláž k teplotnímu snímači

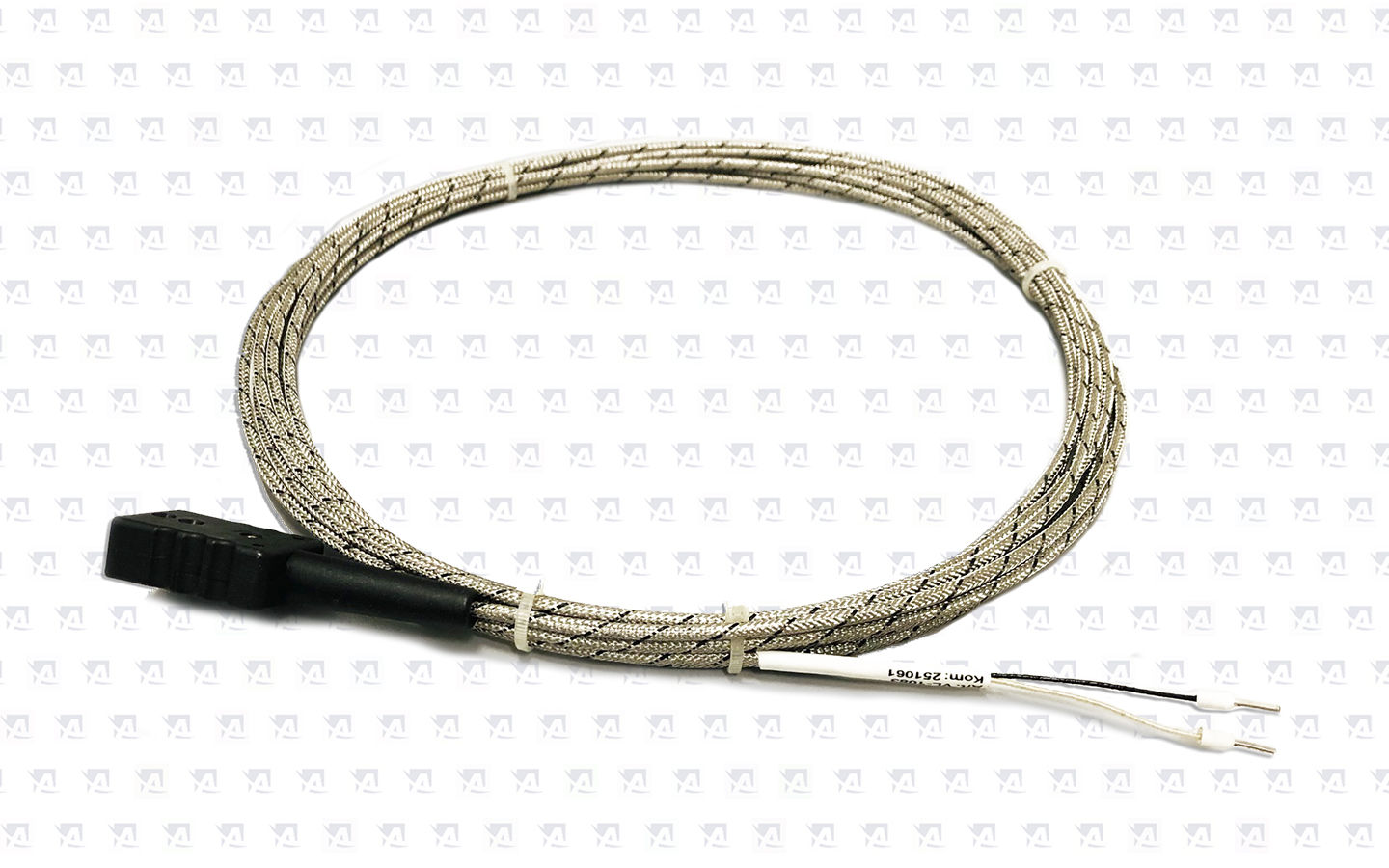

Kabeláž k teplotnímu snímači

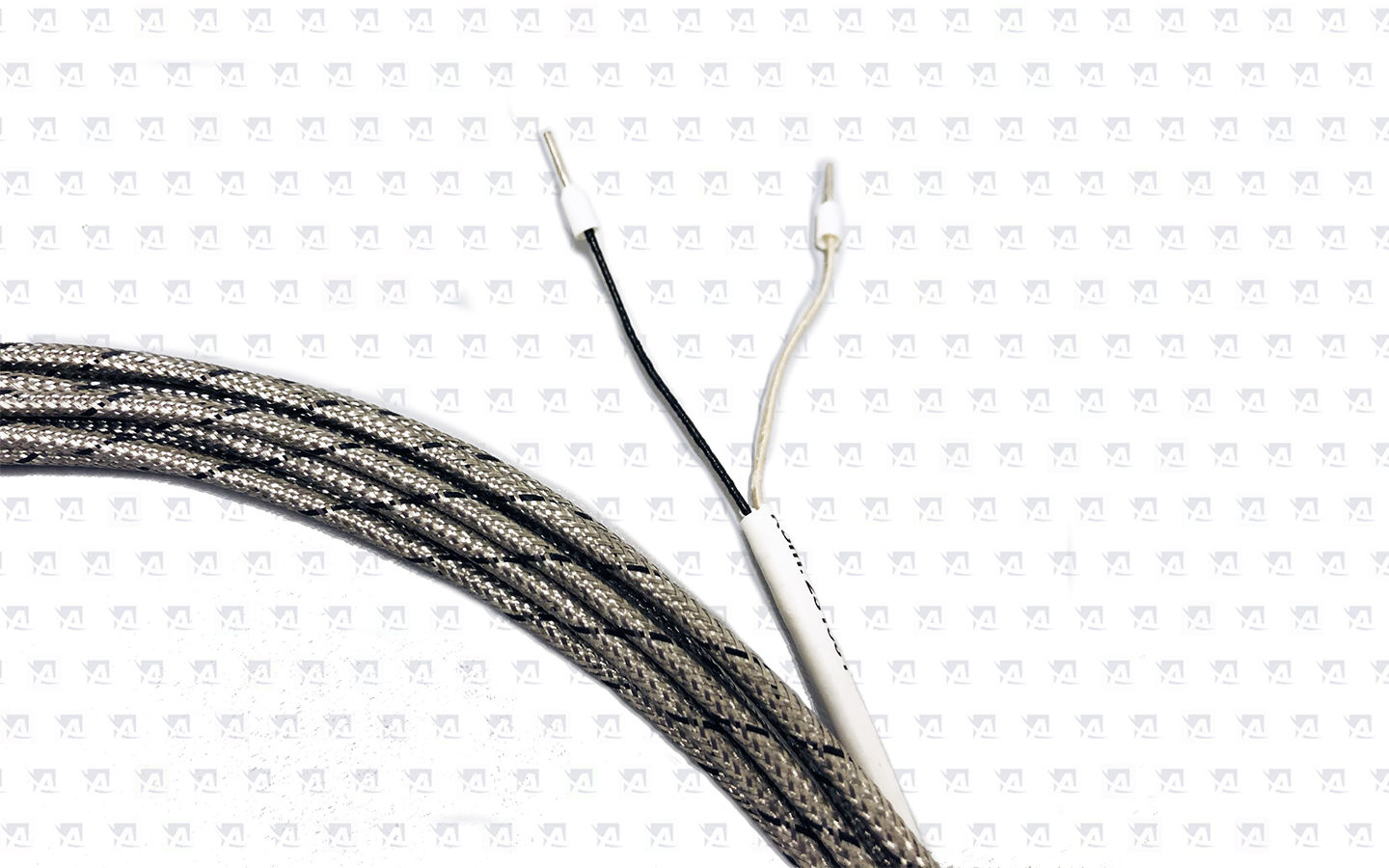

Kabeláž k teplotnímu snímači

Kabeláž k teplotnímu snímači

Kabeláž k teplotnímu snímači

Kabeláž k teplotnímu snímači

Inquiry system

Configure your own product, according to your requirements and needs. If you are not sure about the configuration, tell us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know, we will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have the necessary product the next day.

Konfigurační kód

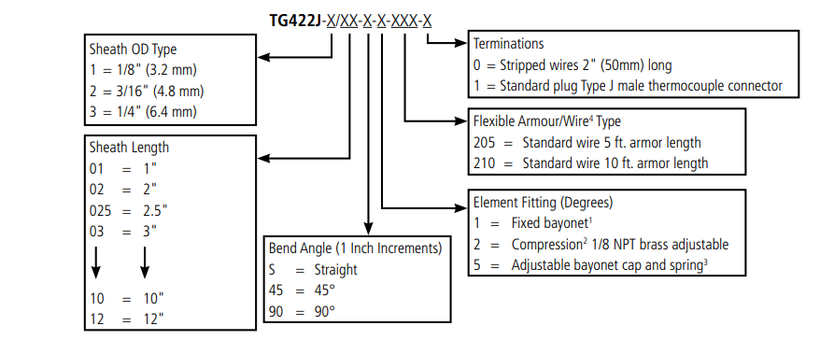

PERFORMANCE CHARACTERISTICS



Probe outer diameter:
1 = 1/8" (3.2 mm)
2 = 3/16" (4.8 mm)
3 = 1/4" (6.4 mm)
Probe length:
1 "to 12" (2.54 cm to 30.5 cm)
Temperature range:
0 to 480°C
  Temperature range:... S = equal / 45 = 45 ° / 90 = 90 °
  Connection - terminal:

1 = Fixed bayonet end
2 = Compression 2 - 1/8 NPT brass adjustable
5 = Adjustable bayonet + spring 33

  Flexible armored conductor protection:

205 = Standard armouring length 1.5m
210 = Standard armouring length 3 m

  Terminals:

0 = stripped wires 2 "(50mm) long
1 = Standard terminal type J male TC terminal

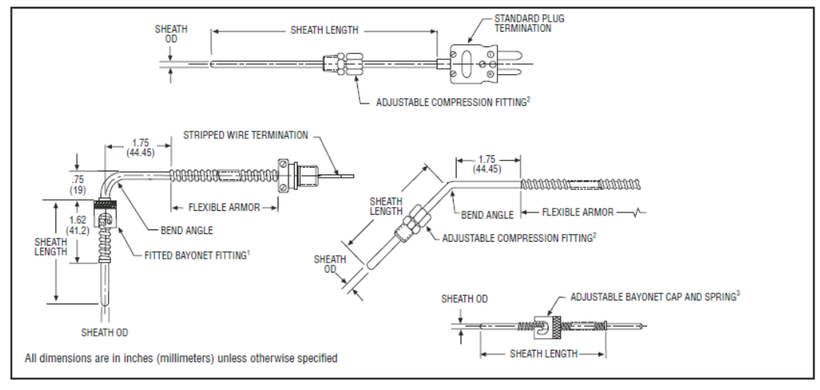

SENSOR DIMENSIONS:



Transducer Mounting Hole Cleaning Tool Kit

Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.


Transducer Mounting Hole Machining Tool Kit

The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.
