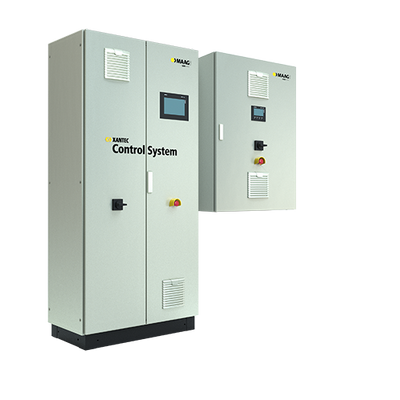

The PC automation system is particularly suitable for stand alone or retrofitting of gear pumps in extrusion lines. Operation, control, regulation and monitoring of the operating parameters are simplified. Production data are displayed transparently and operation is simple and intuitive. Process and production safety of the line are increased.
Analog inputs 4-20 mA: 4Analog outputs 4-20 mA: 2Melt pressure measurements: 3Melt temperature measurement: 1, (Type J)Heating zones:3Types of temperature sensor: Type J, K, R, S, T, PT100Confi gurable control loops: 1 (pump inlet pressure) Interfaces: Profinet/EthernetMonitor: Siemens Touch Panel KTP400 Auxiliary energy: 24 VDC, -15% to +20%, approx. 3 AOperating/storage temperature: 0 to +50°C/-20 to +60°C
When it comes to manufacturing profiles and dealing with strainers, high requirements are placed on pumping consistency and extrusion lines. The new gear pump series extrex⁶ RV/RB from MAAG raises the performance of gear pumps for elastomer extrusion to new levels in terms of both economy and processing technology. Product quality is guaranteed by a stable discharge, the lowest tolerance deviations and achieving process stability in quick time.
Elastomeric processing requires positive displacement devices that gentle convey high viscosity rubber through the system. Specifically designed, low compression tooth design allow the extrex⁶ ER transfer, booster or metering gear pump to achieve both high pressure and low shear.
The rubber compound is conveyed with a constant, precise flow even at high discharge pressures – and this also for extremely dry or sticky compounds, where former pump generations reached their limits due to scorch. Additionally, their anyway high efficiency and long life span will extend unrivaled due to reduced internal friction.
Suitable for Extrusion
Extrusion operations require extremely reliable gear pump systems with high output consistency and a configuration to suit each application.
The modular design of extrex® gear pumps easily meets the requirements for these diverse applications.
The extrex⁶ GU gear pump is a general use design that elevates your process to the next level. With the new x⁶ class design you have additional benefi ts compared to the classic gear pump designs.
All pumps are available with ST design (flow optimized) and with the 5R design (Retrofit flange design classic pump).
Suitable for Masterbatch, Compounding, Recycling, Extrusion
The extrex6 EP gear pump is an intermediate pressure solution for applications requiring higher pressure, greater load bearing considerations for low lubricity products. With the new x6 class design you have additional benefits compared to the classic gear pump designs.
Suitable for Extrusion
The extrex⁶ SP gear pump is a high pressure gear pump for applications dictating high pressures and loads. With the new x⁶ class design you have additional benefits compared to the classic gear pump designs.
All Pumps are available with ST design (flow optimized) and with the 5R design (Retrofit flange design classic pump).
Extrusion operations require extremely reliable gear pump systems with high output consistency and a configuration to suit each application. The modular design of extrex® gear pumps easily meets the requirements for these diverse applications.
Suitable for Extrusion
Extrusion operations require extremely reliable gear pump systems with high output consistency and a confi guration to suit each application.
The modular design of extrex® gear pumps easily meets the requirements for these
diverse applications.
The extrex⁶ MP is a high pressure gear pump for the most demanding thermoplastic applications. With the new x⁶ class design you have additional benefi ts compared to the classic gear pump designs.
The flange design ST is already the same as the classic trudex, so there is no need to change process connections when replacing classic trudex pumps.
Suitable for Extrusion
