Model 347 Pressure Transmitter
Model 347's are found in oil and gas, hydraulic control, test and many other applications requiring stable and reliable pressure measurements with good accuracy at a fair price. They can be configured in a variety of ways - from a sealed housing with a cable to allow it to be used in out of doors environments to a unit ranged to allow for high pressure spikes with a solid machined diaphragm. We welcome your inquiries to provide you with a solution tailored to your needs.
Poptávkový systém
Nakonfigurujte si vlastní produkt, podle Vašich požadavků a potřeb. Pokud si s konfigurací nebudete jistí, uveďte do poznámek potřebné informace o stavajícím produktu třeba i konkurenčním. Rádi Vám pomůžeme najít alternativní produkt z řady Viatran. Pokud je Vaše poptávka urgentní informujte nás o tom, uděláme maximum, abychom Vám pomohli tuto situaci vyřešit co nejrychleji.
Pokud potřebujete více informací, neváhejte nás kontaktovat.
Viatran Configuration Code:
PERFORMANCE
|
Full Scale Pressure Ranges:
|
0-15, 30, 50, 75, 100, 200, 300, 500 PSIA
0-3, 5, 10, 15, 30, 50, 75, 100, 200, 300, 400, 500, 750, 1,000, 1,500 PSIG 2K, 3K, 4K, 5K, 7.5K, 10K, 15K, 20K PSIS 0-5,10 & 15 PSIV* |
|
|
Nonlinearity (Best Fit Straight Line)
|
≤±0.50% FSO
|
|
| Improved Accuracy (Non Linearity) | ±0.35%** ** Range Dependen | |
| Hysteresis | <0.25% FSO | |
| Full Scale Output (FSO) | 16 mA ±2% at 70°F (21°C) | |
| Resolution | Infinite | |
|
Long Term Stability |
≤±0.5% FSO per 6 months | |
| Compensated Temperature Range | 70°F to 170°F (21°C to 76°C) | |
| Operating Temperature Range |
-20°F (-28°C) - to 200°F (93°C) |
|
| Storage Temperature Limits | -40°F to 250°F (-40°C to 121°C) | |
| Temperature Effect on Zero | ≤±2% FSO per 100°F Typical | |
| Temperature Effect on Span | ≤±2% FSO per 100°F Typical | |
| Zero Adjust | ±5% of FSO (nominal) | |
| * For PSIV and Compound Range units | zero is ≤±3.0% per 100°F |
ELECTRICAL
|
Supply Voltage:
|
8 to 30 Vdc
|
|
| Power Supply Regulation | ≤±0.08% FSO per Volt | |
| Output Signal |
4 to 20 mA |
|
| Load Impedance | 1050 Ohms max at 30 Vdc | |
| Circuit Protection | Reverse polarity protected. CE marked | |
| RFI / EMI | CE EMC compliant as per IEC EN 61326-1 and EN 61326-2-3 Annex BB | |
|
Voltage Spike |
Withstand 1000 volt spike per EN 61000-4-5 | |
| Insulation Resistance | <5 nS conductance | |
| Input current | 4-20 mA | |
| Response Time | <2 mSec for 10-90% change in output | |
|
Wire Color Code |
Pin 1 +Power / Signal |
MECHANICAL
|
Pressure Connection
|
1/4” NPT female
|
|
|
Proof Pressure
|
≤200 PSI 3x ≥ 300 PSI 1.5 times FSPR or 25K PSI (1723 bar), whichever is less
|
|
| Burst Pressure | 5 times FSPR or 30K PSI (2068 bar), whichever is less | |
| Pressure Cavity Volume |
0.06 cubic inches, nominal |
|
| Mounting | May be supported by process pipin |
MATERIALS OF CONSTRUCTION
|
Wetted Materials: |
0-3 thru 200 PSI (0-1.0 thru 13.7 bar) - 316L stainless steel
0 - 300 PSI (20.6 bar) and above - 15-5PH stainless stee |
|
|
Identification:
|
Synthetic label
|
|
| Weight: | 8 oz nominal silicon sensor, 10.5 oz nominal (strain gage) |

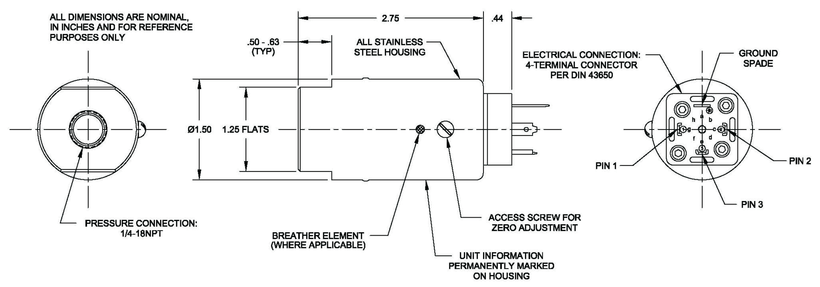

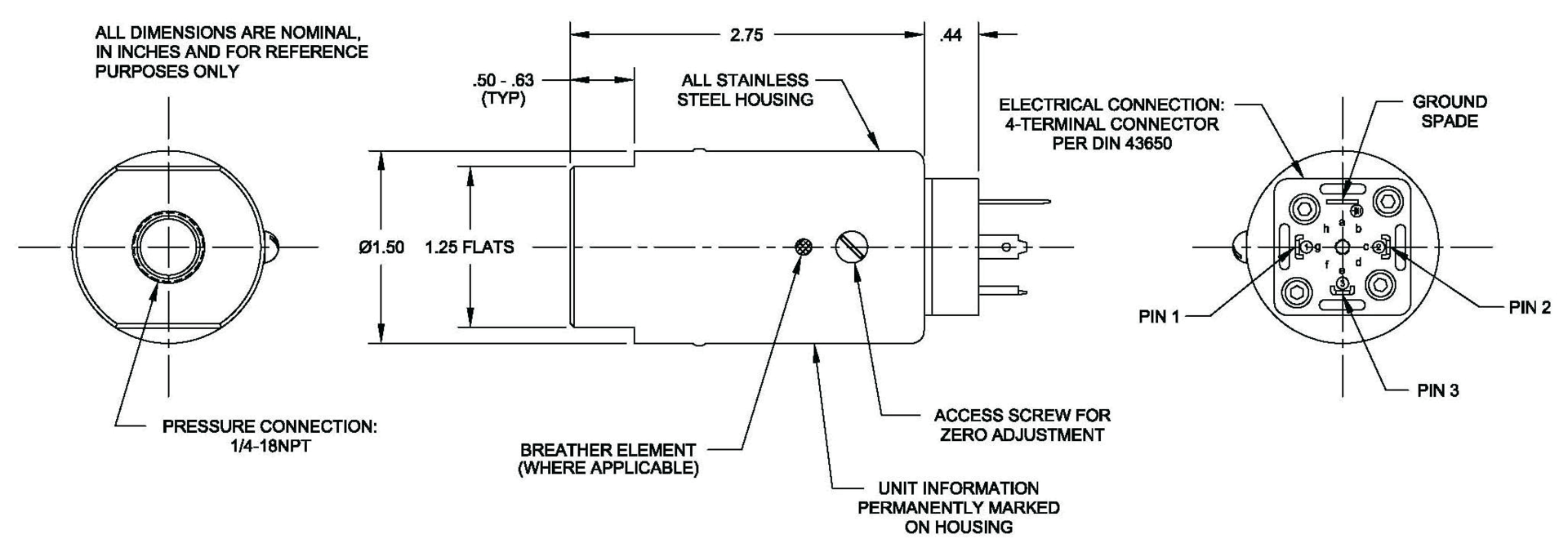

DIMENSION
