Flake Analyzer

Flake Analyzer

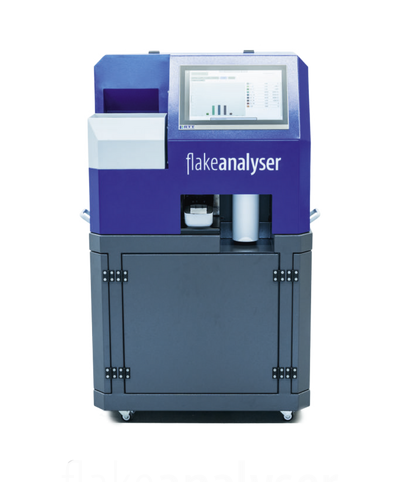

The Flake Analyser is a device for rapid and non-destructive quality control and material analysis of plastic flakes. Typical applications include: polyolefins, plastics in electronic waste, and PET flakes.

Flake Analyser is a device for rapid and non-destructive quality control and material analysis of plastic flakes. Typical applications include polyolefins, plastics in electronic waste, and PET flakes.

Device Features

AI-based analysis of flakes and plastic granules based on:

Material type
Object color
Volume

Simultaneous classification of detected objects by color and material
Statistical consideration of black and dark objects
Weight-based evaluation using measured volumes
Determination of particle size distribution
Option for conversion to continuous measurement (inline version)
Modern and robust design
Intuitive touchscreen operation
Automatic report generation
Automatic archiving of analysis results

Technical Data

Dimensions: 1,670 mm (height), 1,050 mm (width), 795 mm (depth)
Weight: Approximately 250 kg
Power Consumption: 2.1 kW (230 VAC, 16 A)
Grain Size: 2 - 30 mm
Throughput: Approximately 250 g/min
Sample Volume: Approximately 8 L
