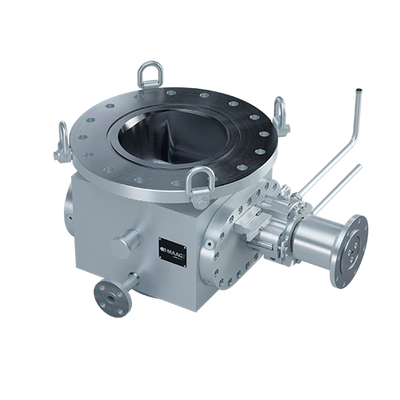

Viscorex® VR
Polymer processes in the polymer industry require units that gently discharge low and high-viscosity plastic melts from reactors and degassing equipment. The MAAG polymer extraction pump systems and viscorex® transfer gear pumps feature the excellent fill behaviour and short residence times that make them the ideal solution for such polymer applications. Their high efficiency and long service life will enhance the capacity and availability of your polymer production line. viscorex® transfer gear pumps efficiently convey plastic melts with a constant, precise flow.
Inquiry system
Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative MAAG products. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences.
If you need more information do not hesitate to contact us.
MAAG Configuration code
TECHNICAL DATA
| Rotational speed [U/Min] | max. 100 | |
| Torque [Nm] | max. 409600 | |
| Differential pressure [bar] | max. 70 | |
| Viscosity [MPas] | max. 20000 | |
| Temperature [°C] | max. 350 | |
| Throughput rate [kg/h] | max. 36 | |
| Pump size | 10 – 21 | |
| Output [l/Min] | max. 600 | |
| Housing | Cast steel / corrosion resistant steel | |
| Gear shafts | Nitrided steel | |
| Bearing | Tool steel / special materials | |
| Shaft seal |
Single mechanical seal, heated |
|
| Pump heating | With heat transfer medium max. 350°C, max. 12 bar for > 14" sizes (max. 7 bar for 10", 12" and 14" sizes) | |
| Installation | The viscorex® gear pump can be flanged directly under the reactor | |
| Suction side | Pumped media flow under vacuum or at an admission pressure to 10 bar |
SELECTION OF TYPICAL PUMPED MEDIA
|
Cellulose acetate
|
|
|
Elastomers
|
|
|
Epoxy resin
|
|
| Phenolic resin | |
| Polyacrylicnitrile | |
| Polyamide | |
| Polycarbonate | |
| Polybutylene Teraphthalate | |
| Polymethylmethacrylate | |
| Polypropylene | |
| Polystyrene (incl. ABS, EPS) | |
| Polysulphone | |
| Silicone | |
| SBR Latex | |
| And others | |
| Paints and varnishes | |
| Waxes and paraffins | |
| Mineral oils and fats | |
| Fuels | |
| Petrochemical products |
