Injection Series

PT 467 XL - Pressure sensor with flexible and exposed capillary

PT 467 XL

The PT467 XL series of pressure transmitters are the ideal choice for applications with high accuracy and minimal mounting space. The PT467 XL models have an accuracy of ± 0.5% of range and an exposed capillary with a diameter of 1.5 mm, which allows bending in a radius of 1/16 inch. The sensors are supplied with a Dymax® membrane, which ensures an increase in wear resistance and thus a longer service life. Sensors marked XL have a protector (flexible capillary) up to the tip of the sensor.

The sensors come with a 6-pin Bendix connector, which is used for easy connection. These models are also an ideal option for all polymer melt injection applications.

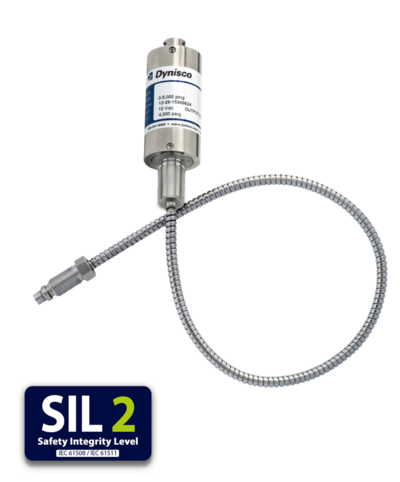

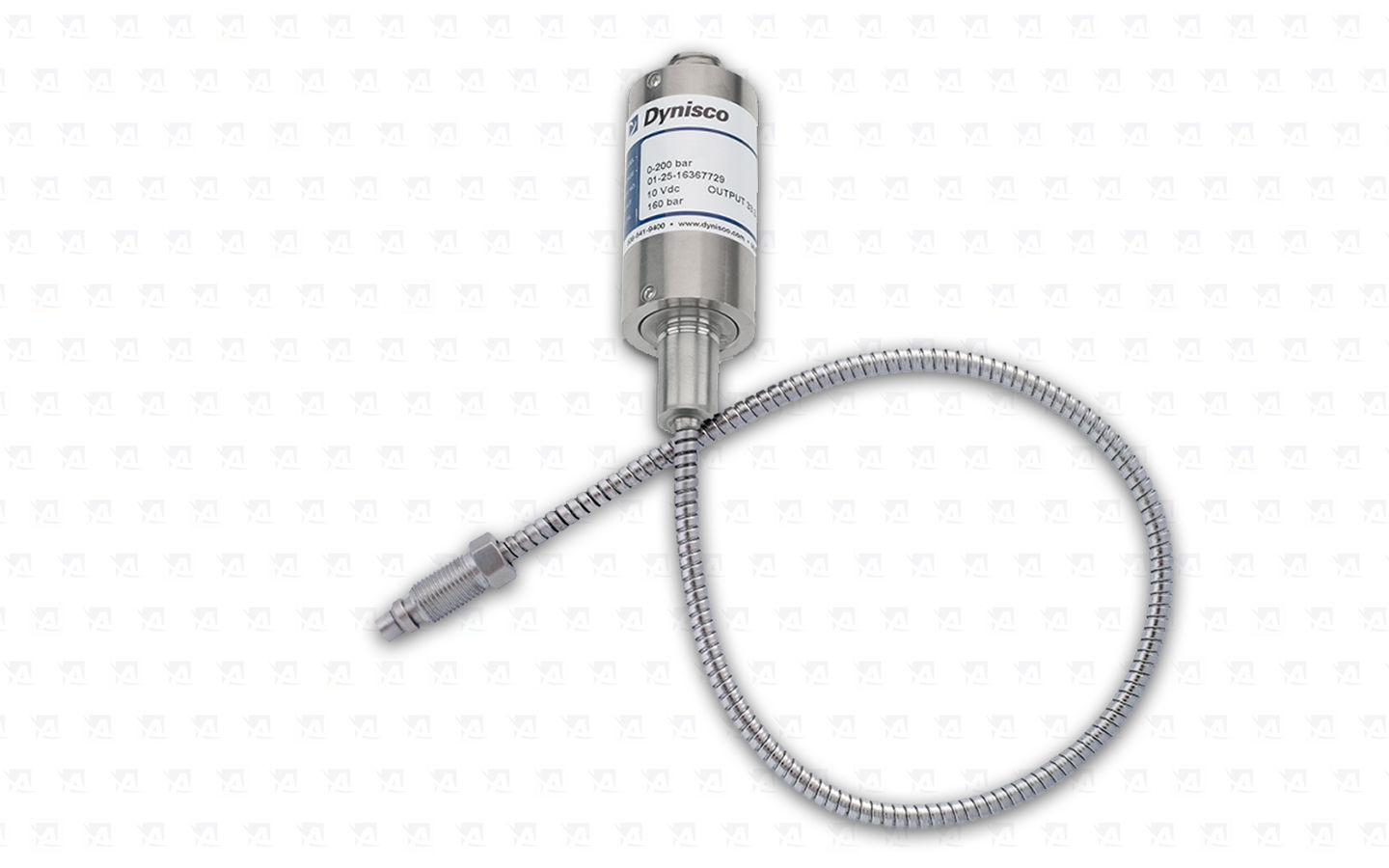

PT 467 XL - Melt pressure sensor in design with exposed capillary XL

PT 467 XL - Melt pressure sensor in design with exposed capillary XL

Adjusting screws - used to adjust the zero and upper range of the sensor

Adjusting screws - used to adjust the zero and upper range of the sensor

Koncovka snímače a kompatibilní kabelový konektor

Koncovka snímače a kompatibilní kabelový konektor

PERFORMANCE CHARACTERISTICS

Sensor power supply:
10Vdc recommended, 12Vdc max
Output signal:
3.33 mV/V ±2.0%
Accuracy*:
± 0,5% FSO
  Repeatability: ± 0.2% FSO


Overload pressure:

2 x plný rozsah nebo 35 000 psi (platí nižší hodnota)
  Pressure ranges (psi):

0-500      0-750        0-1,000       0-1,500       0-3,000
0-5,000   0-7,500     0-10,000     0-15,000     0-20,000
0-30,000

  Pressure units: PSI
  Bridge resistance: Vstup: minimálně 345 Ohmů; Výstup: 350 Ohmů ±10%
Insulation resistance: 1000 MΩ @50VDC
Internal calibration of R-Cal: 1,000 megohms při 50 Vdc
Material in contact with the melt: 15-5 PH nerezová ocel, potažená vrstvou Dymax®

TEMPERATURE AND MECHANICAL CHARACTERISTICS


Sensor technology:
4-ramenný tenzometrický Wheatstoneův můstek

Maximum membrane temperature:
400°C

Zero shift (due to temperature):
Standardně 45 psi/100°C
Maximum temperature of the electronics housing: 121°C

Zero shift
(due to electronics temperature):

± 0.10% FS/ºC max

Range offset
(due to electronics temperature):

maximální (± 0,10% plného rozsahu / ° C)
Mounting torque: 500 in/lbs, max






Certification Approval

EU Declaration of Conformity for Flush Mount mV/V  Output

ISO 9001:2015

EAC - The Eurasian Conformity mark

GOST Approval

RoHS Compliance Fact Sheet

Safety Integrity Level - SIL2
