MDT series

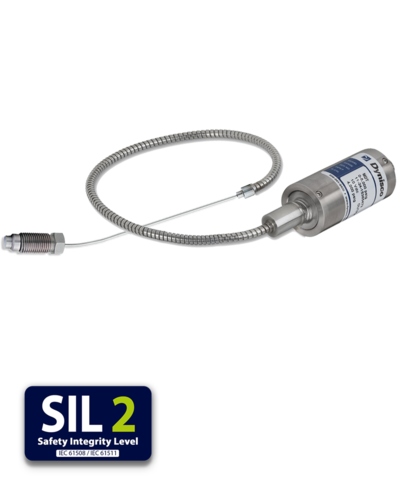

MDT 467- Sensor with amplifier (signal converter) in version with flexible capillary and exposed membrane.

MDT 467

The MDT series signal amplifiers convert the process pressure into an amplified signal for long-distance transmission without interference. All models are available in 4-20 mA, 0-5 VDC and 0-10 VDC, 2-, 3- and 4-wire variants. Many of the features found in the standard Dynisco MDA series have been incorporated into the enhanced MDT series, including the proven strain gauge sensor design for stable operation, including the flexible capillary design. Including the possibility of internal digital calibration R-Cal.

All sensors in this series can be configured according to your needs. Contact us, we will be happy to help you.

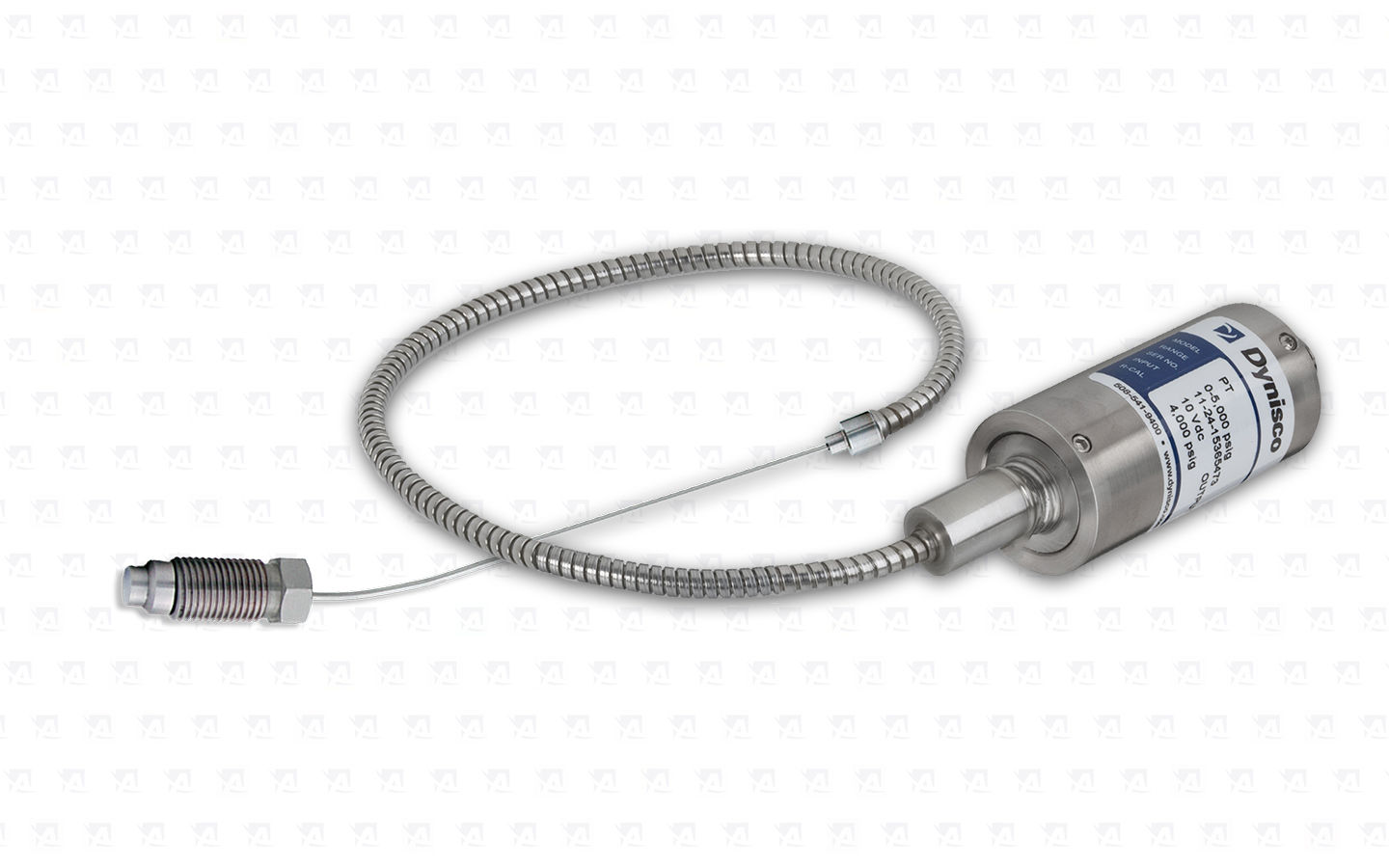

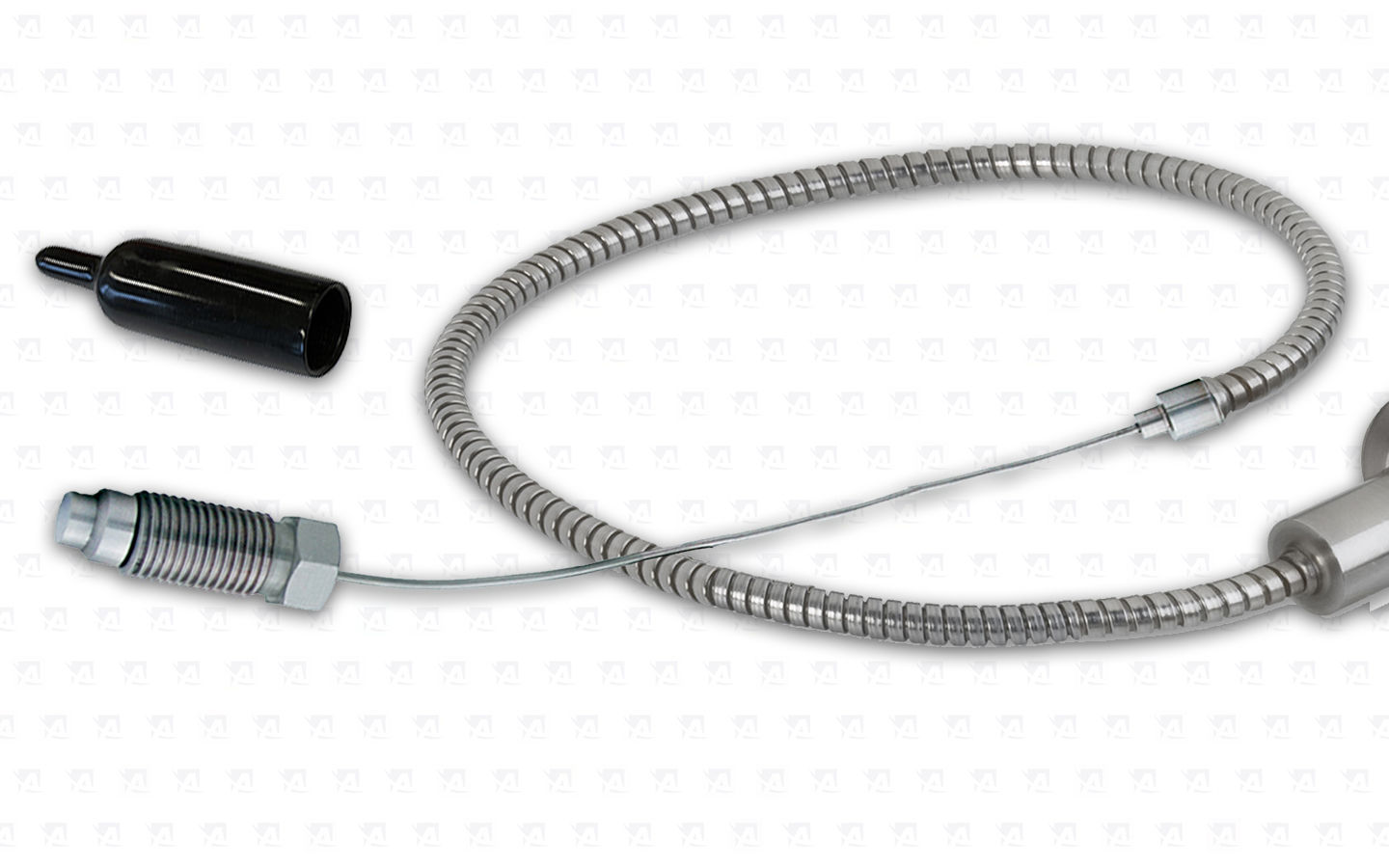

Melt pressure sensor in design with exposed capillary

Melt pressure sensor in design with exposed capillary

Melt pressure sensor in design with exposed capillary

Melt pressure sensor in design with exposed capillary

Sensor terminal and compatible cable connector

Sensor terminal and compatible cable connector

Detail - Bayonet cable connector Amphenol 6-PIN

Detail - Bayonet cable connector Amphenol 6-PIN

Inquiry system

Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.

If you need more information do not hesitate to contact us.

Dynisco configuration code:


PERFORMANCE CHARACTERISTICS



Pressure range:
from 0 - 17 bar to 0 - 2 000 bar
Accuracy:
± 1.0% FSO, (Including linearity, repeatability and hysteresis)
Overload capacity:
2x total range for 1000 bar
      for a range of 1400 maximum 1750 bar
      for the 2000 range maximum 2400 bar
  Repeatability: 0.2 % f.s.v
  Material in Contact with Media: 15-5 PH coating of Dynmax®
  Sensor connection: 1/2 "-20 UNF-2A or M18 x 1.5
  Mounting torque: 25 Nm - 55 Nm
  Burst Pressure: with Burst pressure 6x f.s.v max 3000 bar
  Sensor construction:

MDT 467 - Sensor with flexible and exposed capillary

TEMPERATURE CHARACTERISTICS



Max. membrane temperature:
400°C
Zero shift (due to temperature):
0.4 bar / 10°C
-------------------------------------------
------------------------------------------------------------------
  Max. sensor body temperature: 85°C
  Posun nuly (vlivem teploty) 0.2 % f.s.v / 10°C
  Citlivost posunutí (vlivem teploty) 0.4 % f.s.v / 10°C

ELECTRICAL CHARACTERISTICS




MDT4X0 F
Two-wire configuration output signal with [mA]
Output signal:
4 - 20 mA
Supply Voltage:
10 Vdc - 36 Vdc
Nastavení nuly: -2 % / + 5% f.s.v
Insulation resistance: 1.2KΩ při 36V DC,
MDT4X0 K / L / M / N Three-wire configuration output signal in [V]
Output signal: K=(0-5Vdc)  L=(0-10Vdc)   M=(1-6Vdc)   N=(1-11 Vdc)
Supply Voltage: 15Vdc - 32 Vdc
Insulation resistance: >5KΩ             >5KΩ                >10KΩ            >10KΩ
MDT4X0 G / H Four-wire configuration output signal in [V]
Output signal: G=(0-5Vdc)  H=(0-10Vdc)
Supply Voltage:

Two-wire ± 10Vdc to ± 16 Vdc
Single wire ± 19Vdc to ± 32 Vdc

Insulation resistance: >5KΩ      /       >10KΩ

SENSOR DIMENSIONS:

CONNECTOR WIRING DIAGRAM:
