MDT series

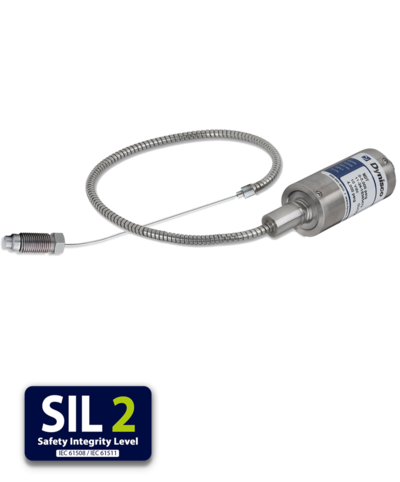

MDT435 - Sensor with amplifier (signal converter) in version with flexible capillary and exposed membrane.

MDT435

The MDT series signal amplifiers convert the process pressure into an amplified signal for long-distance transmission without interference. All models are available in 4-20 mA, 0-5 VDC and 0-10 VDC, 2-, 3- and 4-wire variants. Many of the features found in the standard Dynisco MDA series have been incorporated into the enhanced MDT series, including the proven strain gauge sensor design for stable operation, including the flexible capillary design. The sensors have an internal digital calibration.

All sensors in this series can be configured according to your needs. Contact us, we will be happy to help you.

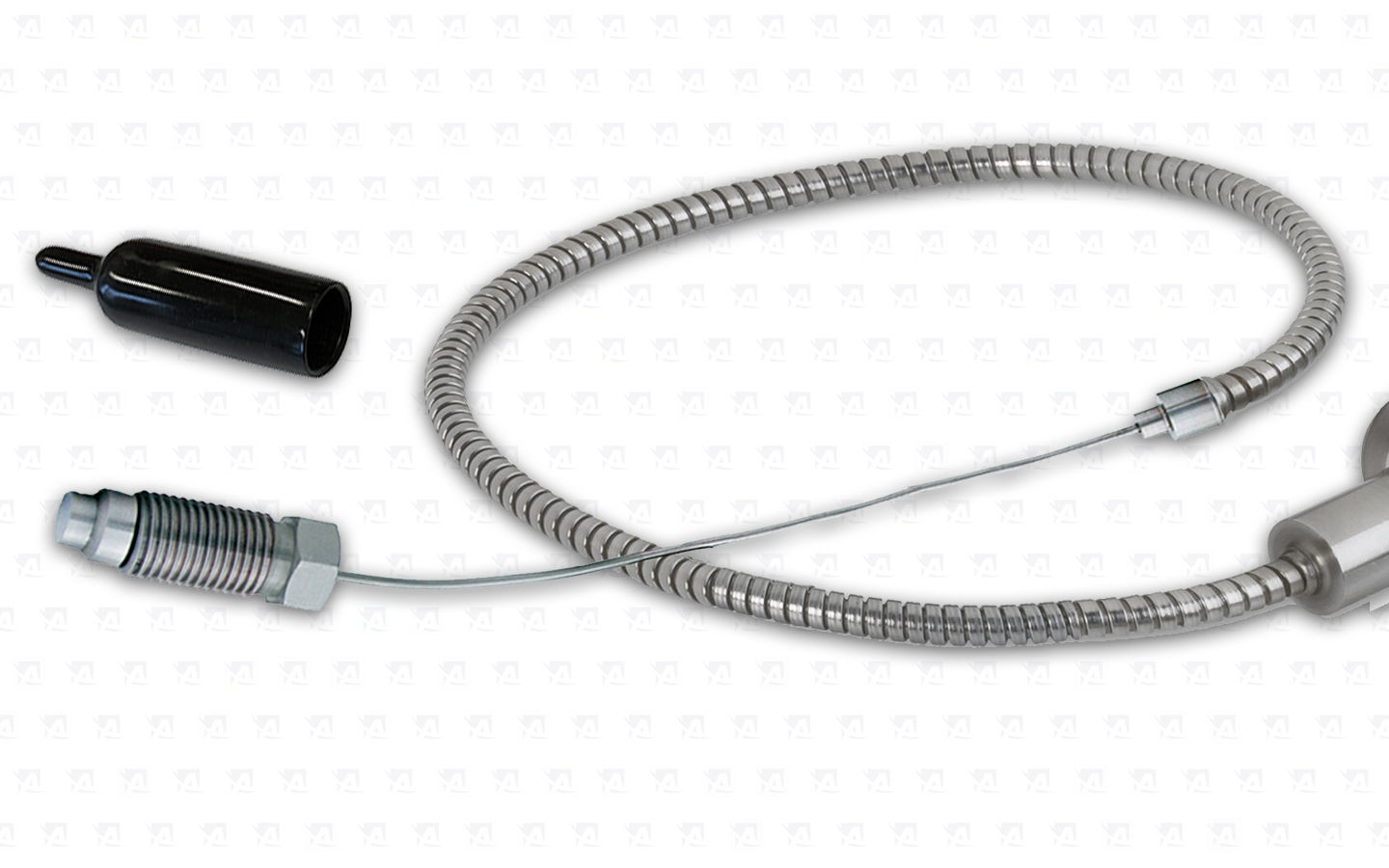

Melt pressure sensor in design with exposed capillary

Melt pressure sensor in design with exposed capillary

Melt pressure sensor in design with exposed capillary

Melt pressure sensor in design with exposed capillary

Melt pressure sensor in design with exposed capillary

Melt pressure sensor in design with exposed capillary

Melt pressure sensor in design with exposed capillary

Melt pressure sensor in design with exposed capillary

Safety Integrity Level - SIL2

Safety Integrity Level - SIL2

Inquiry system

Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.

If you need more information do not hesitate to contact us.

Dynisco configuration code:

Your personal data will be processed according to Terms of personal data processing..

High Accuracy, Simple Installation, Repeatability And Reliability

Dyniscos MDT-series amplified transducers convert process pressure into an amplified signal for long distance transmission free of noise interference.

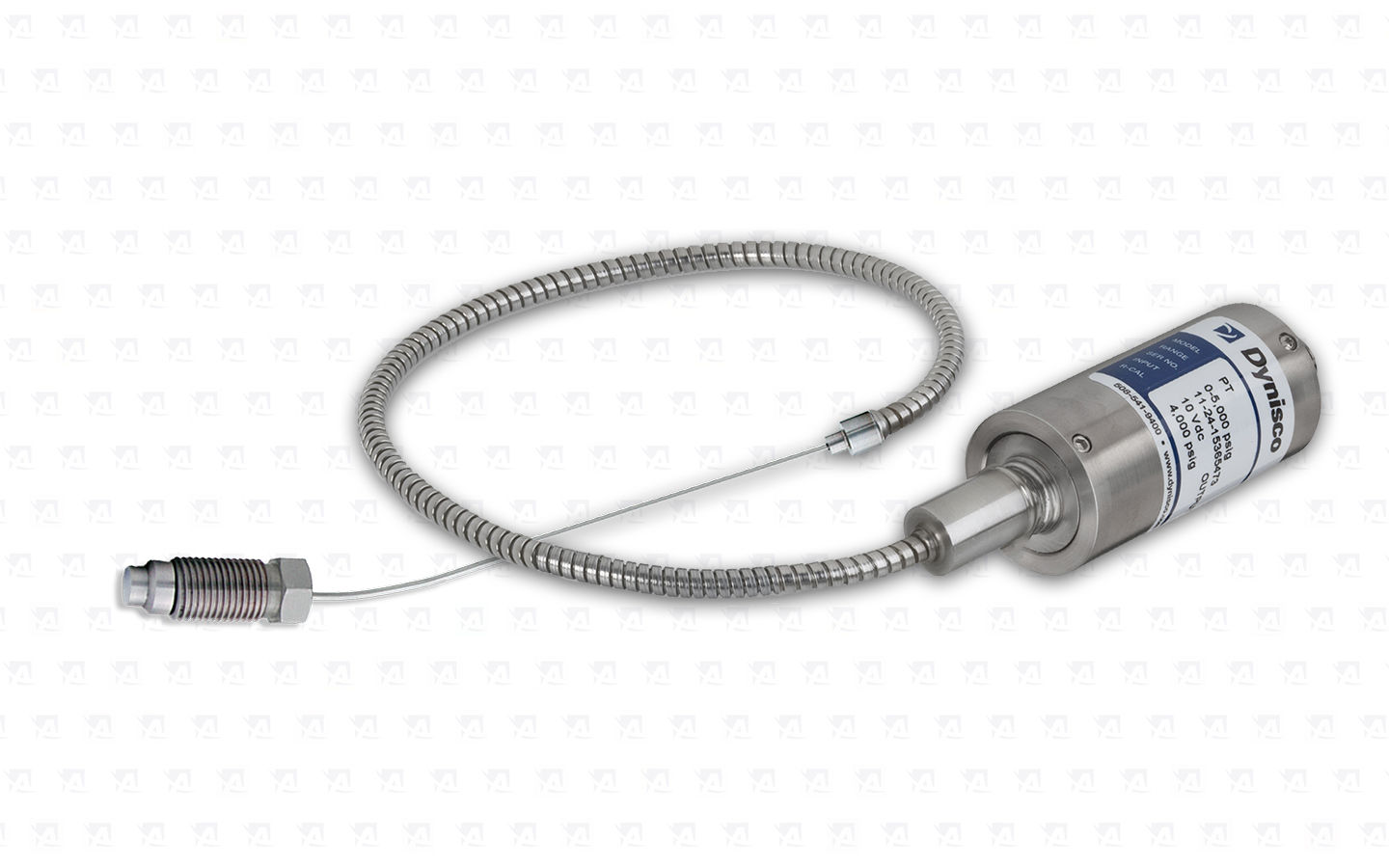

MDT435 Pressure Sensors - With flexible and exposed capillary


Innovative pressure sensor, perfectly designed for injection applications with minimal installation space. Thanks to its unique features and state-of-the-art technical parameters, this sensor can cope with demanding conditions in any environment. The manufacturer spared no expense in advanced technologies and sophisticated production processes, enabling the sensor to achieve very small dimensions and low weight without any compromise to its outstanding performance. The pressure sensor is an ideal solution for a wide range of injection applications, thanks to its exceptional resistance to vibrations, which it can withstand very well. A pleasant bonus is the easy and hassle-free installation of this sensor in spaces with limited dimensions.

 All models are available in 4-20 mA, 0-5 VDC and 0-10 VDC, 2-, 3- and 4-wire high level outputs. Many of the features found in Dynisco's standard MDA-series have been incorporated into the amplified MDT-series, including proven bonded strain gauge construction for stable operation, a flexible armored capillary between the rigid stem and the amplifier housing and a flush diaphragm. Another advantage is the electrical built-in calibration.

⚠ WARNING: This product can expose you to chemicals including mercury and lead, which is known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov.

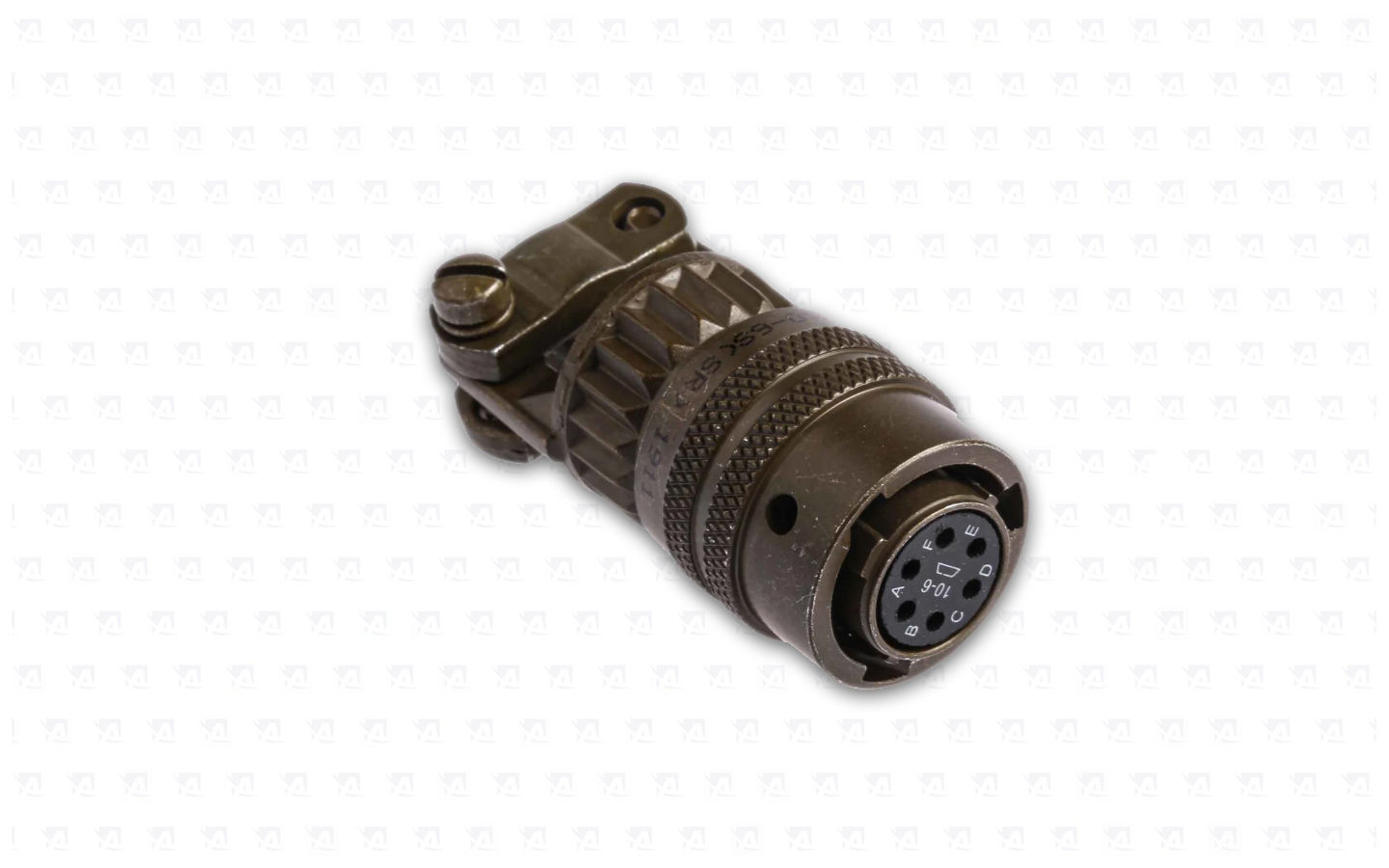

Electrical Characteristics


Configuration: Four-arm Wheatstone bridge strain gage (DMS)
Internal Shunt-Calibration: 80% of full scale ±5%
Leakage Resistance: 1000 MΩ at 50 V DC
MDT4XXF
2-wire mA
Output Signal: 4-20 mA
Supply Voltage: 10-36 V DC
Zero Balance: 2% ±5% of full scale adjustable
Load Resistance: Maximum 1.2Ω at 36 V
MDT4XX K / L / M / N
3-wire V DC
Output Signal: K: 0-5 V DC, M: 1-6 V DC
L: 0-10 V DC, N: 1-11 V DC
Supply Voltage: 15-32 V DC
Load Resistance: K: >5 kΩ, M: >5 kΩ,
L: >10 kΩ, N: >10 kΩ
MDT4XX G / H
4-wire V DC
Output Signal: G: 0-5 V DC
H: 0-10 V DC
Supply Voltage: dual ±10 to ±16 V DC
single 19-32 V DC
Load Resistance: G: >5 kΩ, H: >10 kΩ



Temperature Characteristics



Diaphragm

Max. Temperature:  400°C
Zero Shift (due to temperature change): < 0.2 bar / 10 °C
Housing

Max. Temperature: 85ºC
Zero Shift (due to temperature change): ±0.2% f.s.v./10°C
Sensitivity Shift (due to temperature change): ±0.1% f.s.v./10 °C -up to 50 bar ± 0.2% f.s.v./10 °C

Technical Data and Operating Characteristics




Pressure Range: 0 - 17 bar to 0 - 2000 bar
Accuracy: ± 0.5 % f.s.v. - up to 50 bar ± 1 % f.s.v.
Repeatability: ± 0.1 % f.s.v. - up to 50 bar ± 0.2 % f.s.v.
Resolution: infinite
Maximum Overload
(without influencing operating data):
2 x pressure range for range 1000 and 1400 bar max. 1750 bar and max. 2400 bar for range 2000 bar
Burst Pressure: 6 x pressure range max. 3000 bar
Material in Contact with Media: 15-5 Mat. No. 1.4545, DyMAX coated



Ordering Guide for MDT435 Series

MDT435 - Dimensions

All dimensions are inches (mm) unless otherwise specified.
