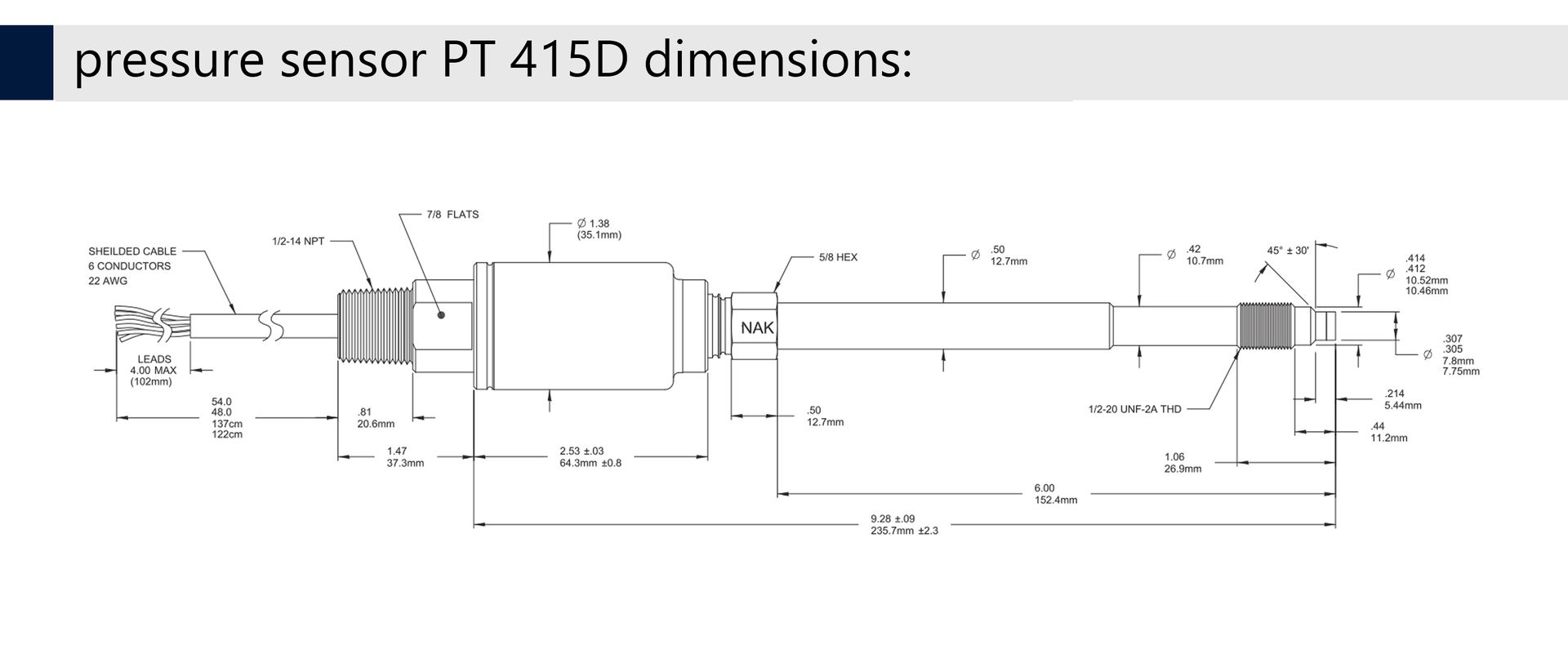

PT415D - Washable  Melt pressure sensor with rigid stem and (NaK) filling.

PT 415D (NaK)

The PT415D pressure transmitter is the ideal choice for food and medical applications that require high accuracy and easy maintenance. It is a washable sensor with insulated wiring type 1/2-14 NPT or an optional 6-pin hermetically insulated bendix connector. It uses a special Inconel 718 membrane and a heat-resistant, mercury-free NaK filling with a high accuracy of 0.5% of the range with excellent repeatability and reliability. Meets FDA and USDA hygiene regulations and requirements.

PT 415D - Melt pressure sensor in a design with a fixed stem

PT 415D - Melt pressure sensor in a design with a fixed stem

Standard process connection of 1 / 2-20 UNF sensor with diaphragm cover.

Standard process connection of 1 / 2-20 UNF sensor with diaphragm cover.

Adjusting screws - used to adjust the zero and upper range of the sensor

Adjusting screws - used to adjust the zero and upper range of the sensor

Sensor terminal and compatible cable connector

Sensor terminal and compatible cable connector

Inquiry system

Configure your own product according to your requirements and needs. If you are unsure of the configuration, provide us in the notes the necessary information about the existing sensor or product, even a competitor. We will be happy to help you find an alternative Dynisco product. If your request is urgent, let us know. We will do our best to help you resolve this situation to your satisfaction as quickly as possible. If we have all the information, we are able to offer a model with minor differences, which is in stock and you can have another product available the next day.

If you need more information do not hesitate to contact us.

Dynisco Configuration Code:


PERFORMANCE CHARACTERISTICS



Tlakový rozsah:
0 -1000 až 0 - 10 000 ps
Přesnost:
± 0,50% FSO, (Včetně linearity, opakovatelnosti a hystereze)
Přetižitelnost:
2 x FSO (plného rozsahu snímače)
  Opakovatelnost: ± 0.2% FSO (plného rozsahu snímače)
  Membrána snímače: 15 - 5 PH nerezová ocel, potažená Dymax®
  Připojení snímače: 1/2"-20 UNF-2A nebo M18 x 1.5
  Montážní moment: 500 inch/lbs. maximum
  Konstukce snímače: Snímač s pevnou tyčí (volitelná délka)

TEMPERATURE CHARACTERISTICS



Max. membrane temperature:
400°C
Zero shift (due to temperature):
maximum 27 psi/100°C
-------------------------------------------
------------------------------------------------------------------
  Max. sensor body temperature: 121°C
  Zero shift (due to temperature) maximum ±0.02% full scale/°C
  Displacement sensitivity
(due to temperature)

±0.01% full scale/°C maximum

500, 750, 1,000 psi
±0.02% full scale/°C maximum

ELECTRICAL CHARACTERISTICS




Power supply:
10 Vdc - 12 Vdc
Output signal:
3.3 mV/V ±2%
Zero setting:
±5% FSO
  Connector: 6 Bendix PIN connector
  Insulation resistance: 1000 megohms @ 50 Vdc
  Resistance calibration (R-Cal): 80% of duty. range ± 0.50% of the total range




Torque wrench Wera 20 - 100 Nm

Torque wrench Wera 075611 Click-Torque B 2 with switch ratchet 3/8 "(20 - 100 Nm)

Wera Click-Torque torque wrenches are supplied as switch ratchets (with connection dimensions 1/4 ", 3/8", 1/2 "and 3/4") or with clamping for socket tools (9x12 mm, 14x18 mm) for tightening torques from 2.5 Nm up to 1,000 Nm.
All Wera Click-Torque torque wrenches manufactured in accordance with DIN EN ISO 6789 are supplied with a declaration of conformity.

Transducer Mounting Hole Cleaning Tool Kit

Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.


Transducer Mounting Hole Machining Tool Kit

The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.
