SPX series

Melt pressure sensors series SPX - 2

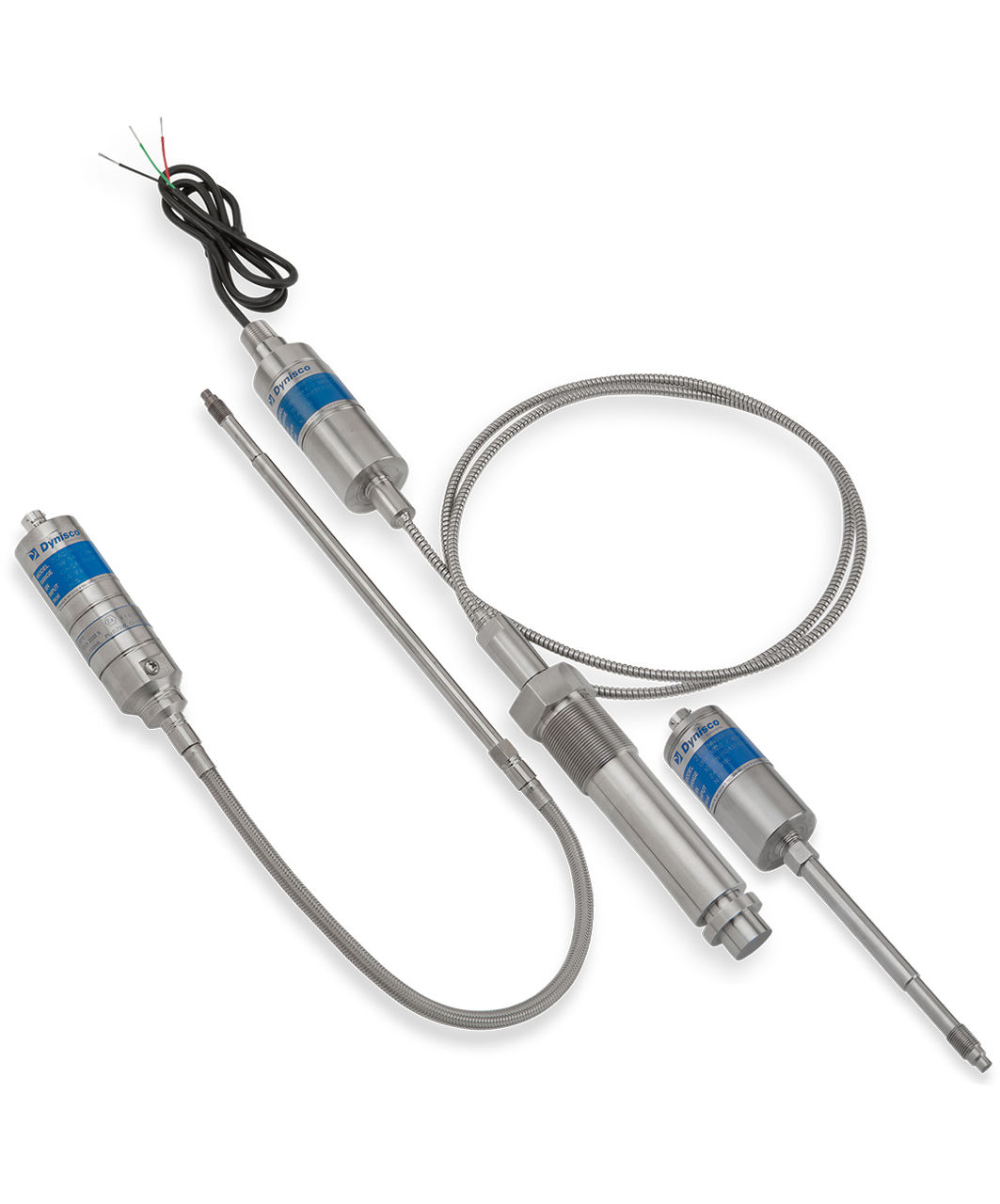

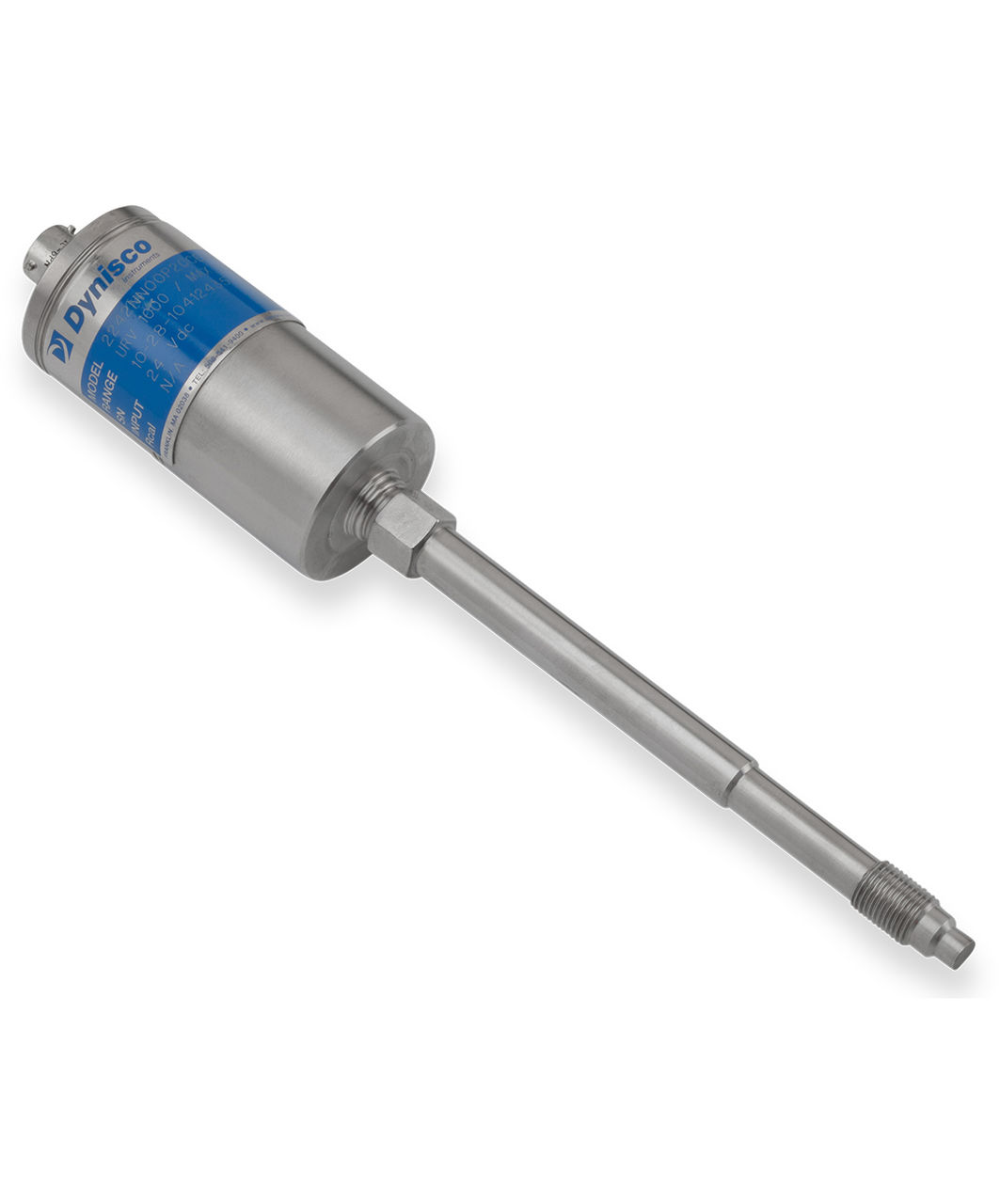

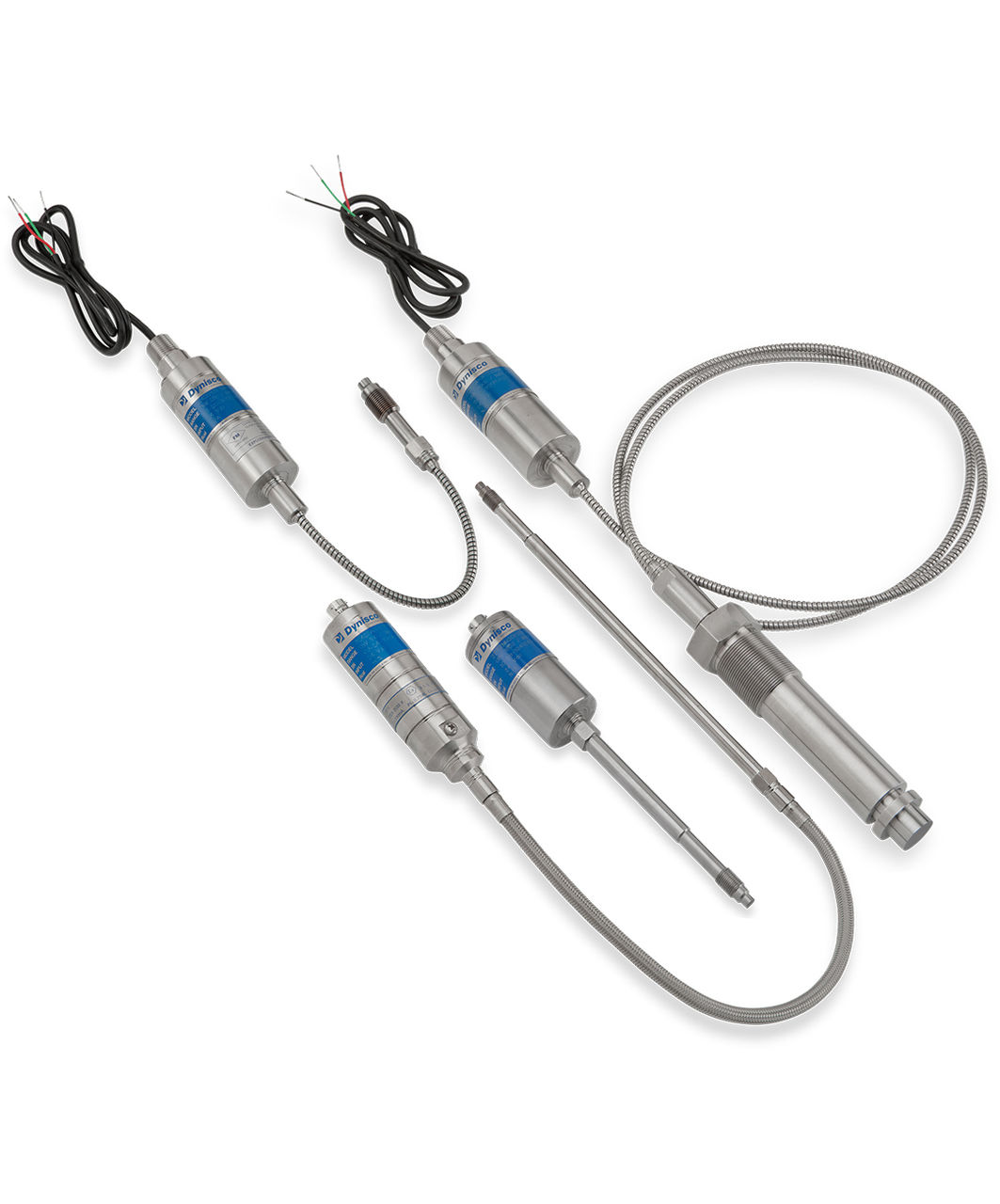

SPX-2 Series

The SPX-2 series is an intelligent 4-20mA pressure sensor designed for use in hazardous areas and is available with various process and electrical connections. The SPX - 2 series is a robust welded construction. These amplified transmitters eliminate the need for external signal conditioning. All models can be directly connected to high-level distributed control systems, PLCs, computers and similar control systems. Optional thermocouples or RTD configurations are also available for simultaneous temperature and pressure monitoring at a single connection point.

Inquiry system

Configure your product, according to your requirements and needs. If you are not sure about the configuration, make the necessary information in the notes about the manufacturer of the sensor, even a competing one. We will be happy to help you find an alternative from Dynisco products. If your request is urgent, let us know, we will do our best to help you resolve this situation as quickly as possible. If we have this information, we can offer a model with small differences and you can have a sensor in your company the next day.

Dynisco Configuration Code:


PERFORMANCE CHARACTERISTICS



Pressure range:
 0 up to 70 bar
Accuracy:
2241 ± 1,0%
2242 ± 0,25% for pressure ranges >= 1,500 psi;
          ± 0,50% for pressure ranges <1,500 psi
2243 ± 0,25% for pressure ranges >= 1,500 psi;
          ± 0,50% for pressure ranges <1,500 psi
2244 ± 0,25% for pressure ranges >=  500 psi;
          ± 1,0%   for pressure ranges <500 psi
2290/2291/2292 ± 0,50%
Overload capacity:
2X FSO or 35,000 psi, whichever is less (2290.2291 and 2292 1.5 x FSO per 10,000 psi)
  Repeatability: 0.1 % f.s.v
  Material in Contact with Media: 15-5 PH SST DyMax coating
  Sensor connection: 1/2"-20UNF , M14x1.5 , M18x1.5 , M22x1.5
  Mounting torque:

2241: 350 inch-lbf max
2242: 500 inch-lbf max
2243: 50 inch-lbf max
2244: 350 inch-lbf max
2290: 350 inch-lbf max
2291: 350 inch-lbf max
2292: 80 ft-lbf max

  Burst Pressure:

6x pressure range max. 3000 bar

  Sensor construction: Various constructional embodiments

TEMPERATURE CHARACTERISTICS




Max. membrane temperature:
400°C max
Models 2241, 2244, 2290, 2291, 2292 max 315°C

Zero shift (due to temperature):
2241/2244//2290/2291/2292:
1 psi/100°F (from 75-450°F)
2 psi/100°F (from 450-600°F)
2242/2243:
15 psi/100°F (27 psi/100°C)

-------------------------------------------
------------------------------------------------------------------
Max. sensor body temperature: 120°C
Zero shift (due to temperature): All models: 0.02% F.S./°C max
Shift sensitivity (due to temperature): All models: 0.02% F.S./°C max

ELECTRICAL CHARACTERISTICS




Supply Voltage:
16 - 36 Vdc (Standard); 16 - 30 Vdc (ATEX IS)
Output signal:
4 - 20 mA with optional HART ™
Nastavení nuly:
- 40% to + 10%;
- 80% to 20% for FSP <500 psi
  Connector: All models: 0.02% F.S./°C max
  Leakage Resistance: 500 Ω @ 24 Vdc, 1,000 Ω @ 36 Vdc
  Internal Shunt Calibration: 80% f.s.v ± 0.50% f.s.v

SENSOR DIMENSIONS:


Torque wrench Wera 20 - 100 Nm

Torque wrench Wera 075611 Click-Torque B 2 with switch ratchet 3/8 "(20 - 100 Nm)

Wera Click-Torque torque wrenches are supplied as switch ratchets (with connection dimensions 1/4 ", 3/8", 1/2 "and 3/4") or with clamping for socket tools (9x12 mm, 14x18 mm) for tightening torques from 2.5 Nm up to 1,000 Nm.
All Wera Click-Torque torque wrenches manufactured in accordance with DIN EN ISO 6789 are supplied with a declaration of conformity.

Transducer Mounting Hole Cleaning Tool Kit

Installation of transducers into improperly cleaned or sized holes is one of the major causes of damage to these instruments. With this kit, the .312" tip diameter hole, the 45 degree seating surface, and the .451" hole can be cleaned. The kit includes a gauging plug which is used to verify that the hole has been correctly machined and cleaned. M10 and M18 cleaning kits also available.


Transducer Mounting Hole Machining Tool Kit

The Dynisco Transducer Mounting Hole Machining Tool Kit contains all of the necessary drills and taps to prepare a standard 1/2 - 20 UNF transducer mounting hole and the 45 degree seat. All tools included in this kit are made of premium grade, high strength tool steel. Care should be taken in the use of proper speeds and feeds, lubricants, and a method to assure continual alignment of each progressing tool. M10 and M18 kits are also available.

1480 Panel Indicator

1480 is a universal pressure or temperature indicator with one or double configurable alarm as well as optional linear retransmission of the displayed process. Ideal for use in extrusion applications.

1490 Panel Indicator

Indicator 1490 is a universal device with one or two configurable alarms, optional linear process variable retransmission, optional pressure sensor power supply, and optional Modbus communication.

UPR 900 Panel Indicator

The Dynisco UPR900 is a compact 1/4 DIN process indicator. The UPR900 can display your preferred production process values. Optional secondary input for displaying the temperature or pressure of the polymer melt all in one place. The secondary input can be a strain gauge to measure the differential pressure in the process. The UPR900 contains two standard assigned alarms with the option to add a third alarm.

ATC990 Process Controller

The ATC 990 series controller is a time-tested product that has received a new design and new functions. Compared to classic features such as pressure, temperature and alarm setting options, these new models are enhanced with the ability to monitor and record parameters to a USB drive, the undeniable advantage is the large display and interactive environment when setting up the controller.

PPS1210 calibration pump

The PPS1210 pressure calibration pump with heated pressure port enables fast and accurate inspection of melt pressure sensors directly in the laboratory or directly in the factory. Thanks to its compact dimensions, it is easily portable.
